AE- 1 5 0 s y s t e m – U s e r M a n u a l
15
Using individual sensor holders (optional)
To deal with limited access to the transformer tank wall, one or many acoustic
sensors can be installed at different locations using the sensor holders.

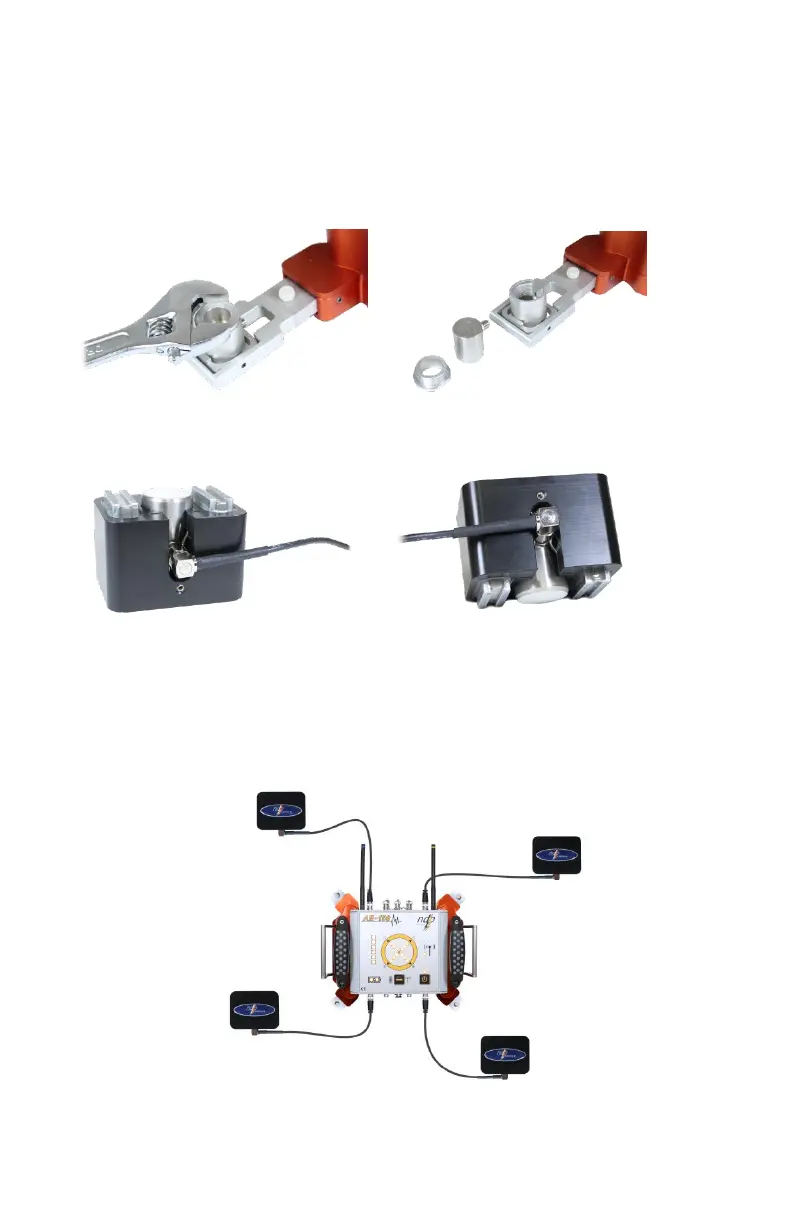

Use a wrench to release the acoustic sensor from its enclosure.
Carefully insert the sensor in the magnetic holder. A clip holds the
sensor in place.
Apply acoustic couplant on each acoustic sensor. Refer to the Acoustic
couplant section of this manual for more detail.
Install the AE-150 on the transformer tank (only one wall at a time)
with the magnetic holders.
