AE- 1 5 0 s y s t e m – U s e r M a n u a l
42
to provide, when available, the direction of the defect in a two-dimension
plane, pointing in only one direction at the time.

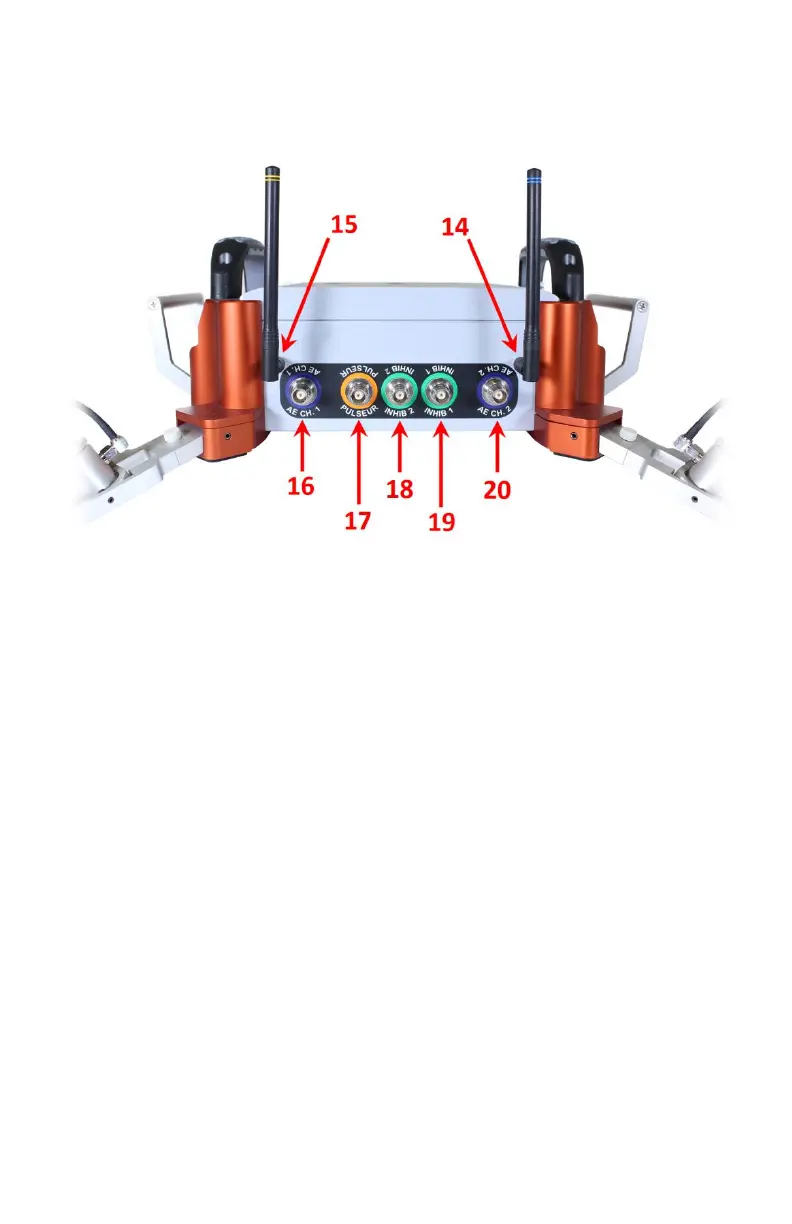

14- Phase synchronization antenna (blue stripes): This antenna is used for
phase synchronization through the wireless link.
15- Data communication antenna (yellow stripes): This antenna provides a
bidirectional link between the AE-150 and the computer through the
wireless communication module.
16- Acoustic channel 1: Input BNC connector for acoustic sensor #1.
17- Pulser output: Pulse generator output.
18- Inhibition channel 2: This sensor will be available as a future option.
19- Inhibition channel 1: This sensor will be available as a future option.
20- Acoustic channel 2: Input BNC connector for acoustic sensor #2.
