NEC BE116516 - Analogue Extension Timer Settings

Configure the SL2100
Quick Install Guide – SL2100 Terminals Type B rev 1.0 21

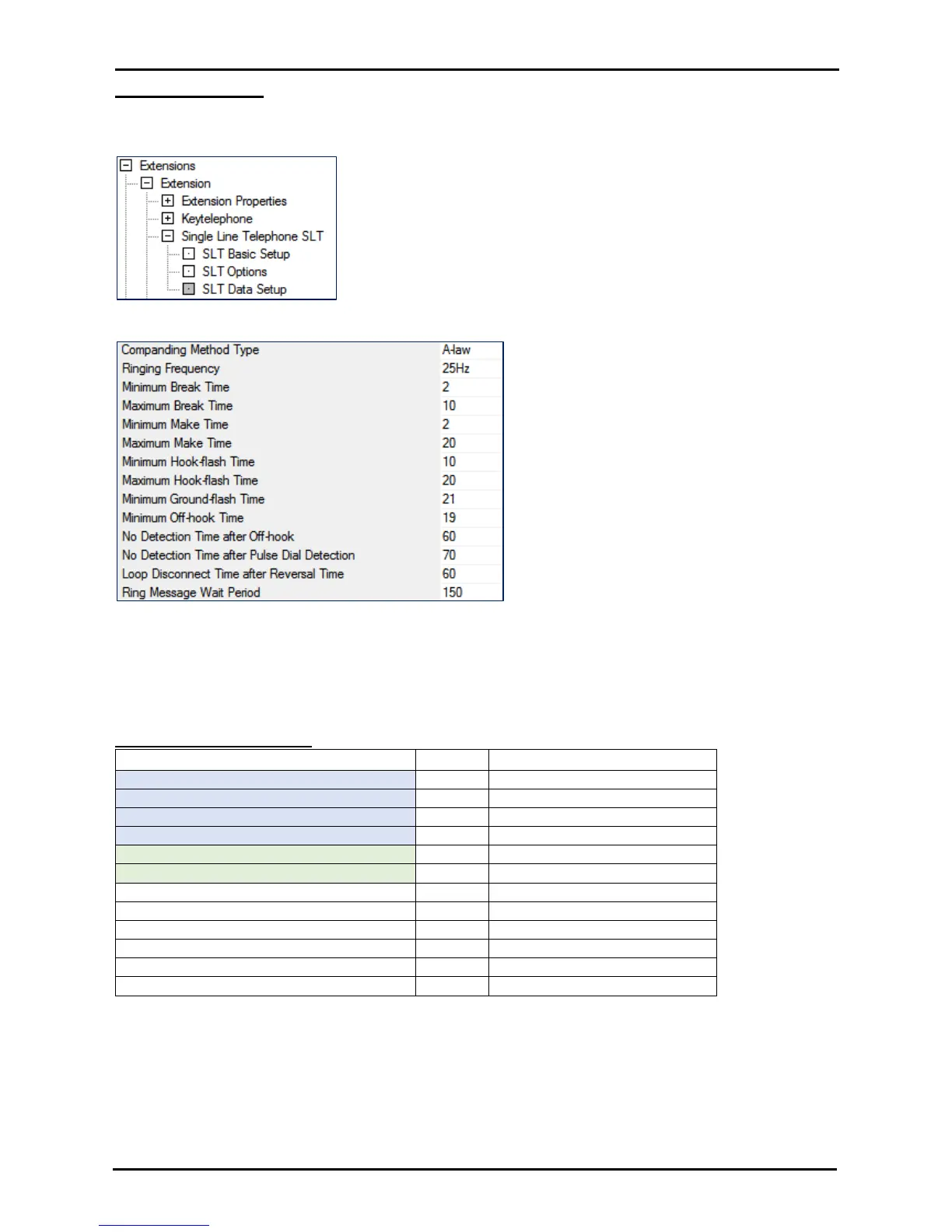

Analogue Extensions
Timers for analogue extensions are setup in Easy Edit-Extensions-Extension-Single Line Tele[hone SLT-SLT
Data Setup
The following timers are available.
These are not timers and should be set as follows:
 Companding Method Type - Select the codec type for the SLT - A law or u-law
Set this to A-Law
 Ringing Frequency - Select the ringing frequency, 25Hz, 20Hz or 16Hz.
Set this to 25Hz
Calculating the timer setting
Description
Setting
Timer setting
Minimum Break Time
1~255
5~1275mS [5mS increment]
Maximum Break Time
1~255
5~1275mS [5mS increment]
Minimum Make Time
1~255
5~1275mS [5mS increment]
Maximum Make Time
1~255
5~1275mS [5mS increment]
Minimum Hook Flash Time
1~255
5~1275mS [5mS increment]
Maximum Hook Flash Time
1~255
5~1275mS [5mS increment]
Minimum Ground-flash Time
1~255
5~1275mS [5mS increment]
Minimum Off-hook Time
1~255
5~1275mS [5mS increment]
No Detection Time after Off-hook
1~255
5~1275mS [5mS increment]
No Detection Time after Pulse Dial Detection
1~255
5~1275mS [5mS increment]
Loop Disconnect Time after Reversal Time
1~255
10~2550mS [10mS increment]
Ring Message Wait Period
1~255
5~1275mS [5mS increment]
