Connect the Telephones
Quick Install Guide – SL2100 Terminals Type B rev 1.0 9
3- Connect the Telephones
The connectors of the IP7WW-082U-B1 card have multiple extension ports per RJ45 connector using the RJ61
pin-out format.

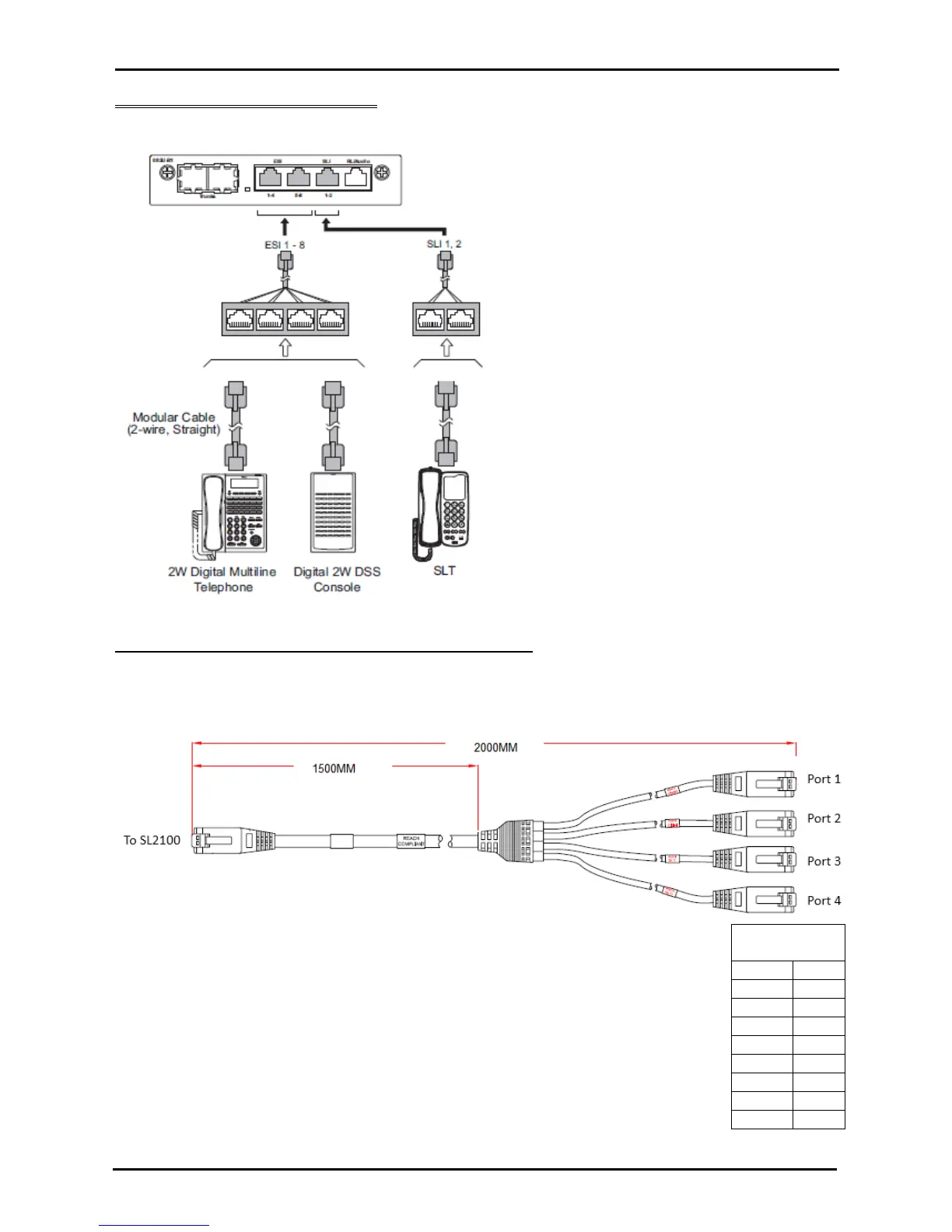

Connecting to the RJ45 sockets of the IP7WW-082U-B1 card
The are several methods available to connect these interfaces into the customer’s building infrastructure.
1. Use the cable assembly, adapter or panel available from NEC
Cable LPNEC4 – 2m length, converts a four port RJ45 socket to four RJ45 plugs, one port per plug.
Can be used to connect into an RJ45 through coupler panel or directly into the customer’s
panels.
Can also be used to plug into RJ45 face plates if IDC termination is required.
Cable colour: black
One cable is required for each ESI socket of the IP7WW-082U-B1 card.
Ports 1~4
RJ45 plug
Pin
1
-
2
-
3
-
4
R
5
T
6
-
7
-
8
-
