Configure the SL2100
Quick Install Guide – SL2100 Terminals Type B rev 1.0 25
Doorphones and Door Lock Relay Contacts
You can connect an NEC Doorphone unit to either analogue extension ports of the IP7WW-082U-B1 card (these
ports can be either analogue telephone, Doorphone or External sensor.
The port is setup by hardware switched on the IP7WW-082U-B1 card, refer to the Quick Install Guide for MOH
and External Audio for details.

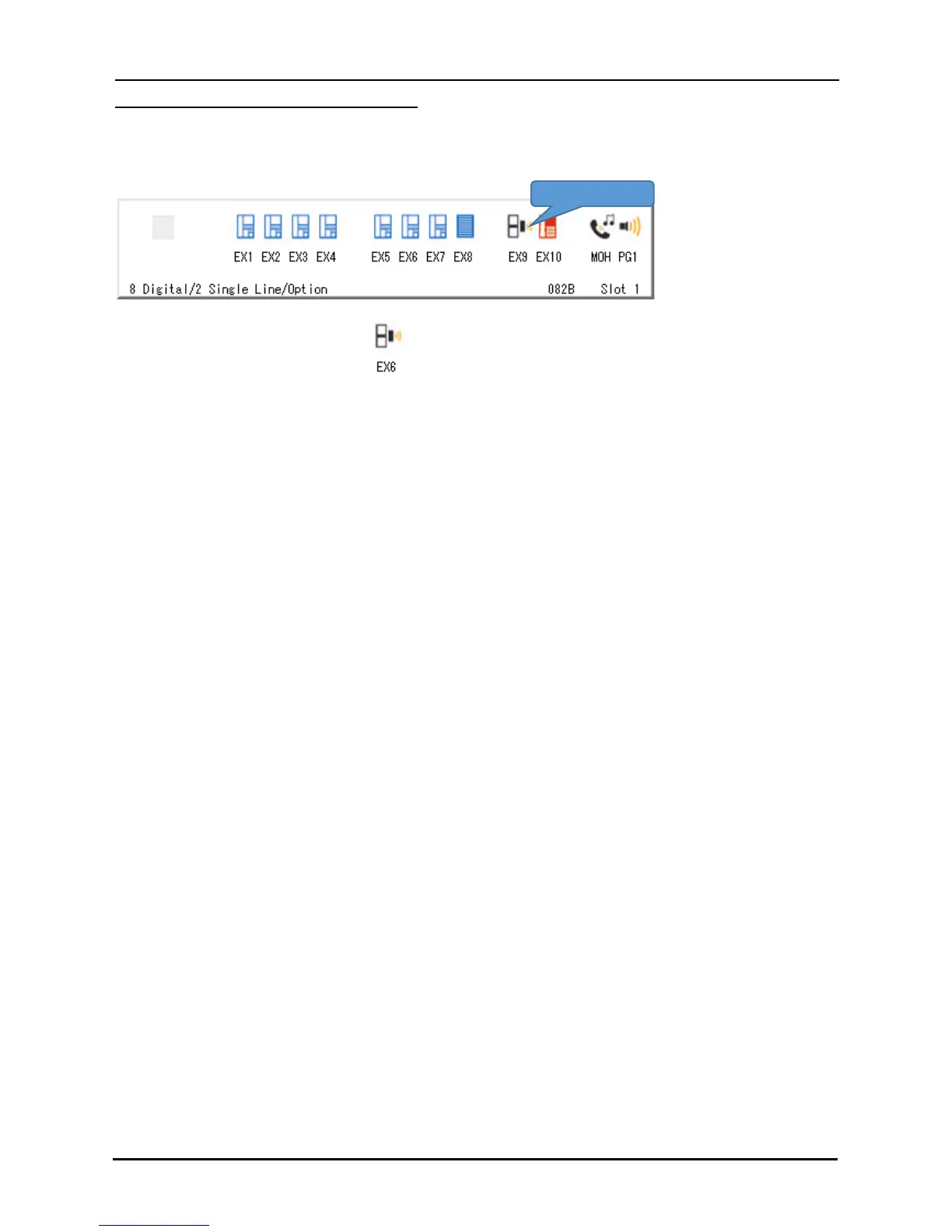

Go to the Chassis View to check the port assignment.
Then click on the port you’ve assigned to show the Properties pane for doorphones, you can then name
the doorphone and assign the phones that will ring in each mode.
