English-16
E554/E464/E424/E324
Neck Screw
VESA Hole

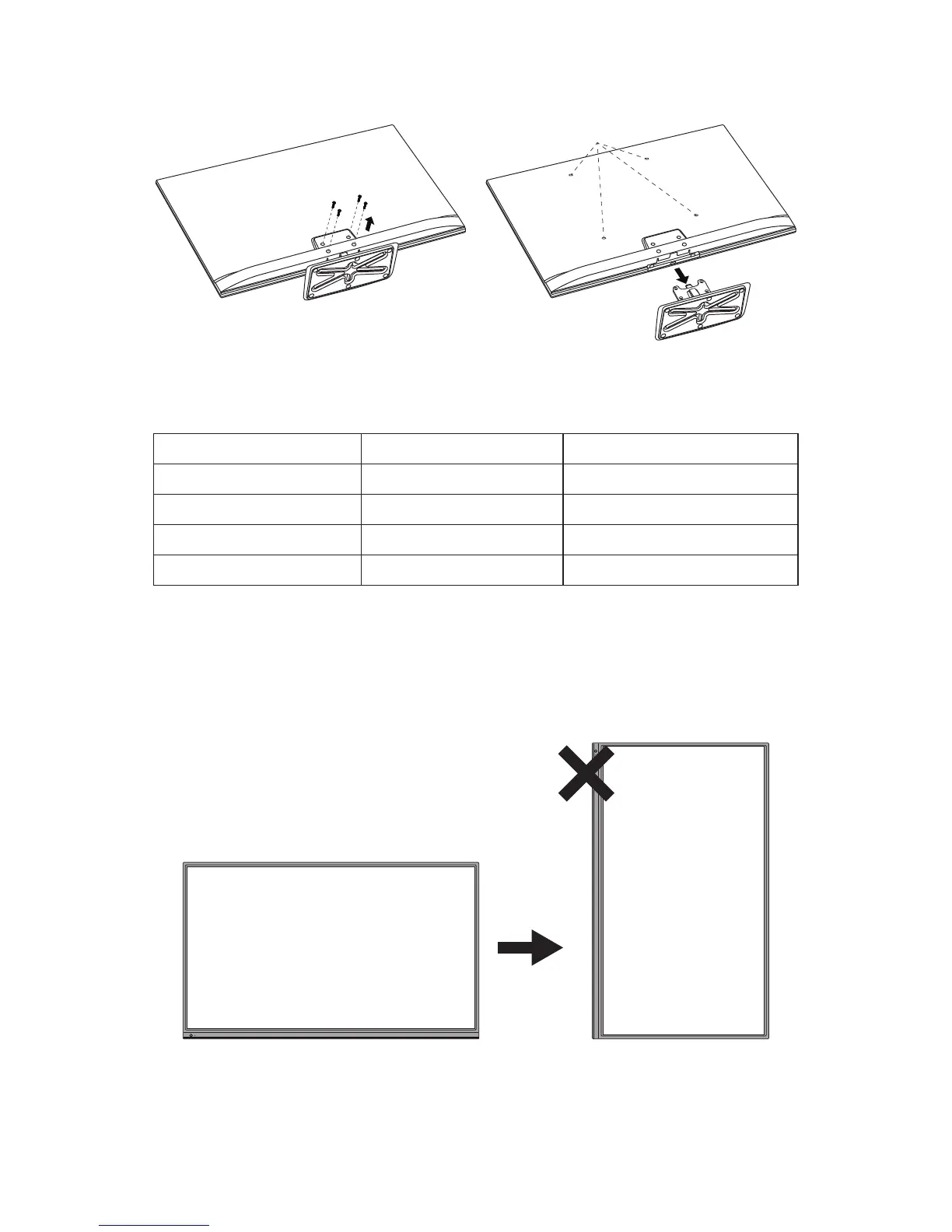

1� Loosen the screws on the back of the stand-base, and remove the base�
2� Secure the wall mount bracket to the back of your TV using four M4
screws (for 32" only) or M6 screws (for 42"/46"/55" only)�
screen size (inches) required pitch (mm) VESA Hole depth
55 400
×
400 4
×
M6 (24mm)
46 400
×
400 4
×
M6 (19mm)
42 400
×
400 4
×
M6 (21mm)
32 100
×
100 4
×
M4 (22mm)
NOTE:
Wall mounting solution is not included with the unit and is sold separately�
Contact your NEC representative for details� It is necessary to provide screw
of appropriate length (Wall mount bracket thickness + VESA Hole depth)�
Prohibit Portrait Condition Use
CAUTION:
Do not rotate the diplay from landscape to portrait�
