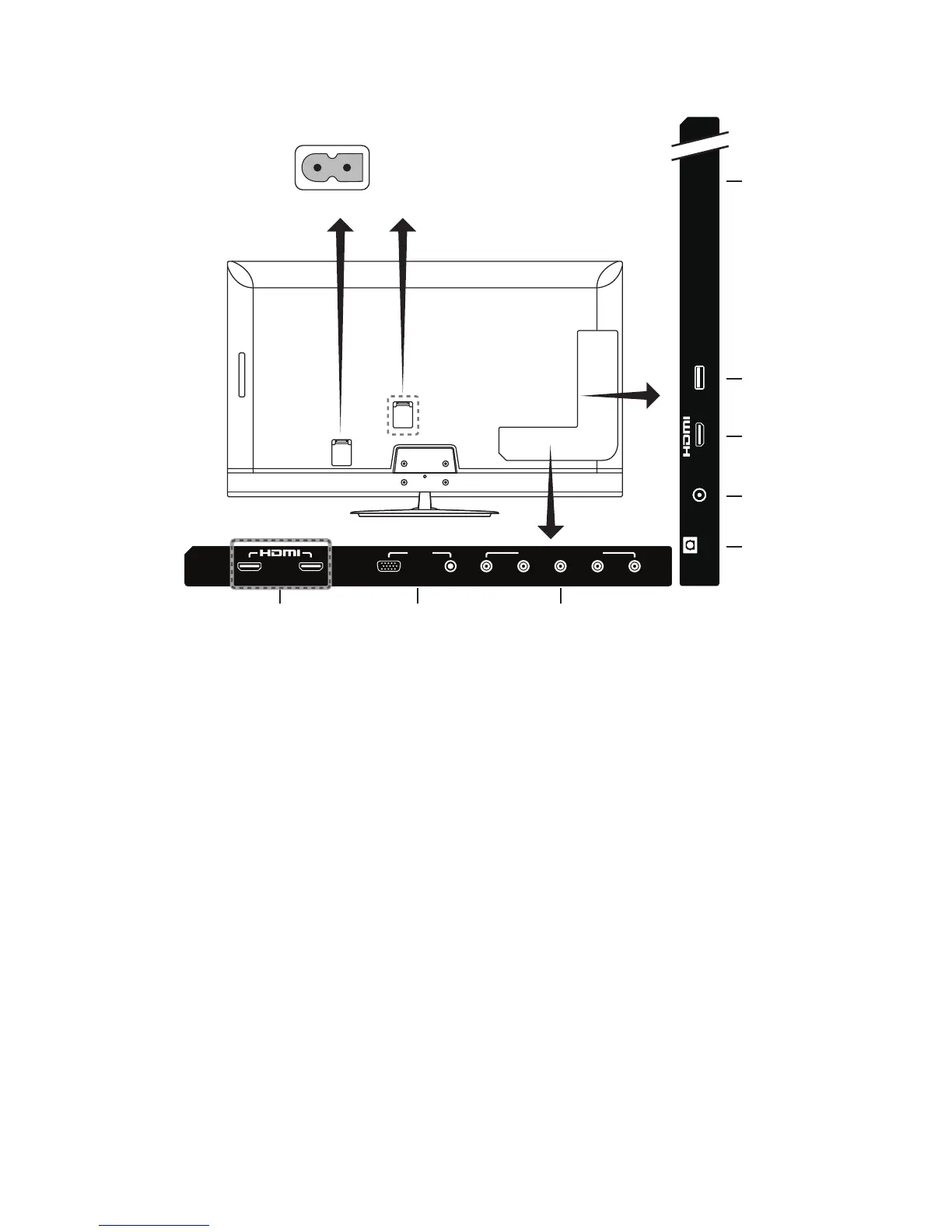

1� RS-232C – Input from external equipment such as a PC or AV control
system in order to control RS-232C functions�
2� USB port – Used for accessing JPEG photo les.
3� HDMI (HDMI1, HDMI2, HDMI3) – Connect your HDMI devices�
4� ANT / CABLE – Connect an RF antenna or Analog Cable system�
5� SPDIF OUT- Use a digital audio cable to connectstereo home theater
system�
6� COMPONENT / AV IN –
• Component: Connect digital video equipment to the Video Green (Y),
Blue (Pb), Red (Pr) jacks, and matching Audio White (L) and Red (R)
jacks�
• Composite: Connect digital video equipment to the Video Green (AV),
jacks, and matching Audio White (L) and Red (R) jacks�
7� PC IN (VGA / AUDIO) – Connect your PC video and audio�
