NEC MultiSync LCD1550ME User Manual

P302 VGA
INPUT
I302
MCU
ESD PORTECTION
CIRCUIT
I306 SCALER
I310
5V TO 3V
Regulator
EDID
I308
P301
DCV INPUT
INV CONTROL
DC-DC POWER
CIRCUIT
DC 3.3V
DC 5V
DC15V
P306
P307
PANEL DATA OUTPUT
RC FILTER
SCALER RLC
CLOCK FILTER
X301
CLK
Function Control ISP&RS232 P304
P303
POWER BOARD
AC-IN
P801
P802 P803
PANEL
INVERTER
P003
SPK OUT
FUNCTION KEY-PAD
EXTERNAL
ISP-RS232 BOARD
SPEAKER
EEPROM
I304
I301
RESET
I001
AUDIO
JK011
AUDIO IN

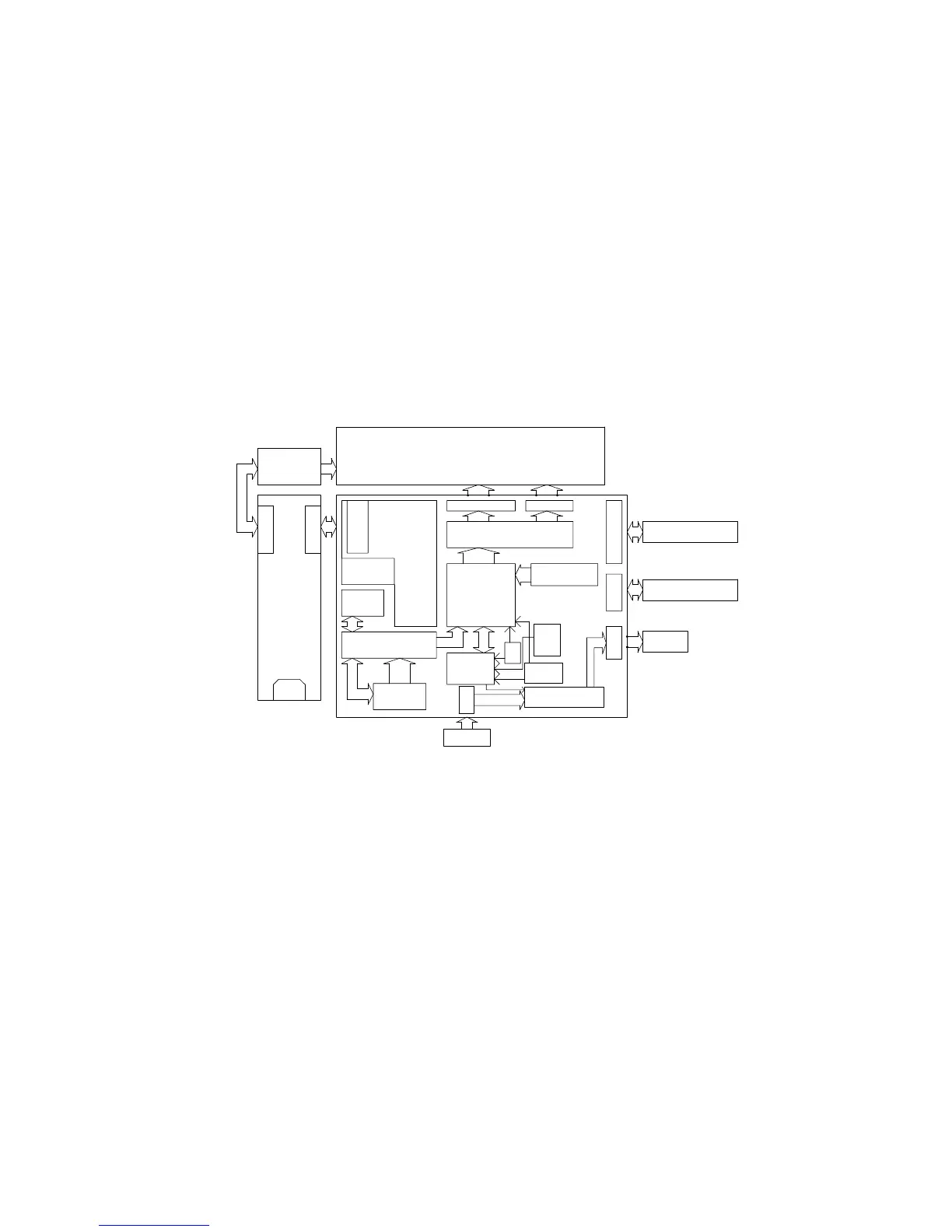

BLOCK DIAGRAM (LCD1550ME)
9-1
