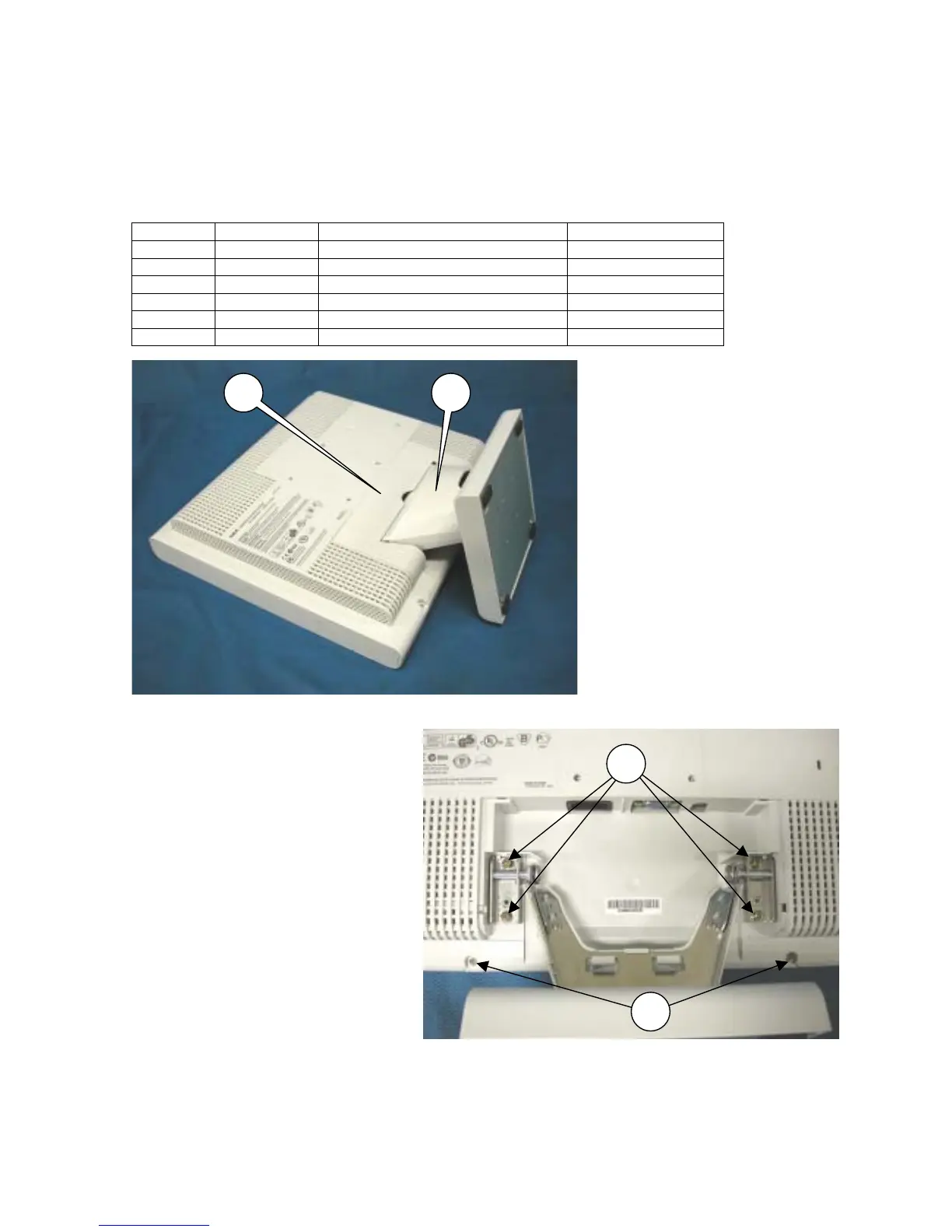

3-1
DISASSEMBLY
g Before you disassemble the set, turn off power and pull out the power plug.
g Use the proper screwdriver. If oversize or undersize screwdriver is used, screws may be damaged.
g Assembly is the opposite process of disassembly.
SYMBOL CODE DESCRIPTION CABINET COLOR
1 79PL1836 COVER(CONNECTOR) White
1 79PL1844 COVER-CONNECTOR-NMV(NEC)- Black
2 79PL1825 COVER CABLE White
2 79PL1833 COVER CABLE(LCD1550MBK B) Black
3 --- SCREW-M4*12
4 --- SCREW-T3*12
2 1
3
4
