3-4

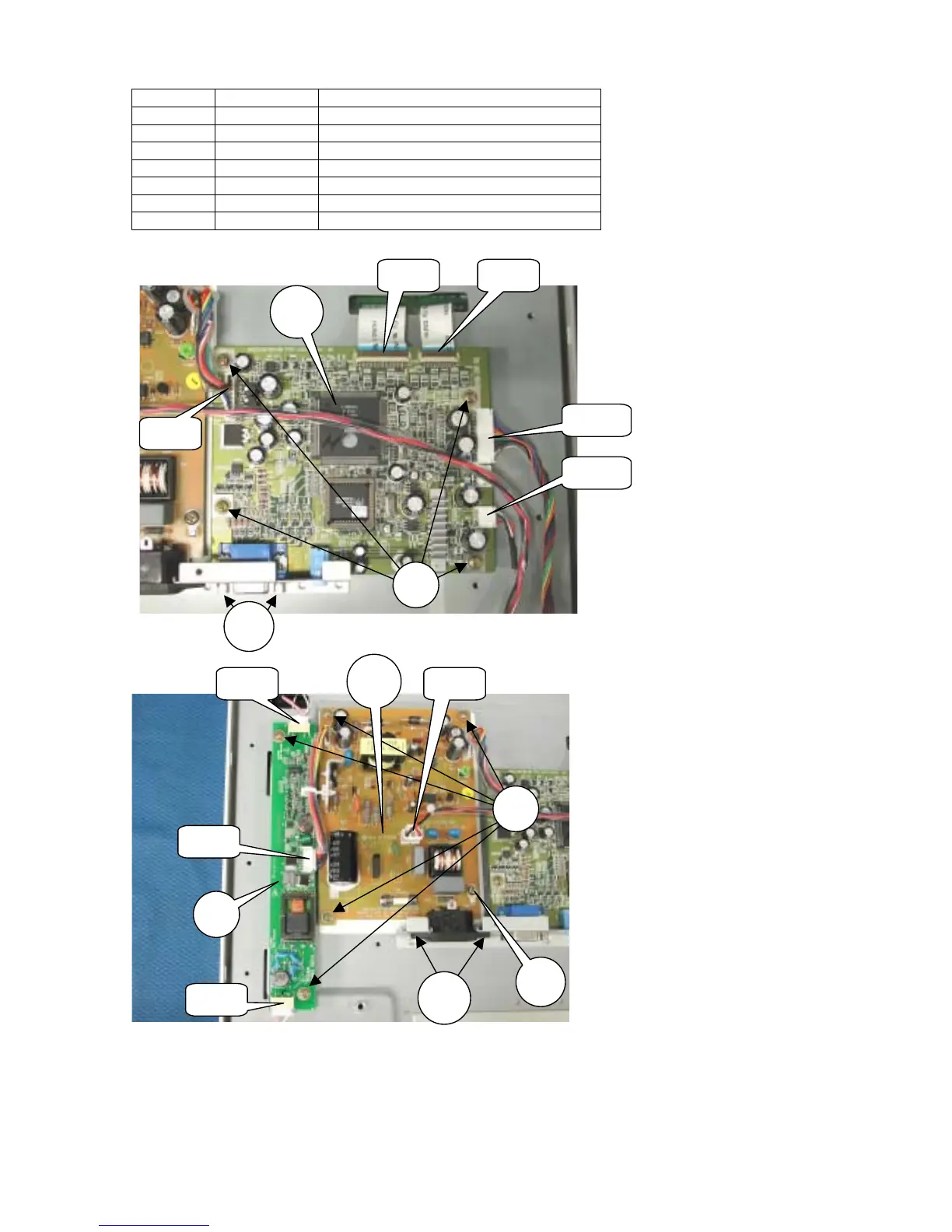

SYMBOL CODE DESCRIPTION
14 79PL2044 INTERFACE BD
15 79PL2047 POWER BD
16 79PL1982 INVERTER-DC-AC-AMBIT:T15I
8 --- SCREW-M3*6
17 --- SCREW-M4*8
18 --- SCREW-M3*6(Flat)
19 --- SPECIAL(HEX)
14
P306 P307
P301
P304
P003
8
19
16
CN2
CN3
CN1
17
18
8
15
P804
