5-13
5. PLUG & PLAY Communication Inspection
5.1 System Connection
This system should be connected as shown below.

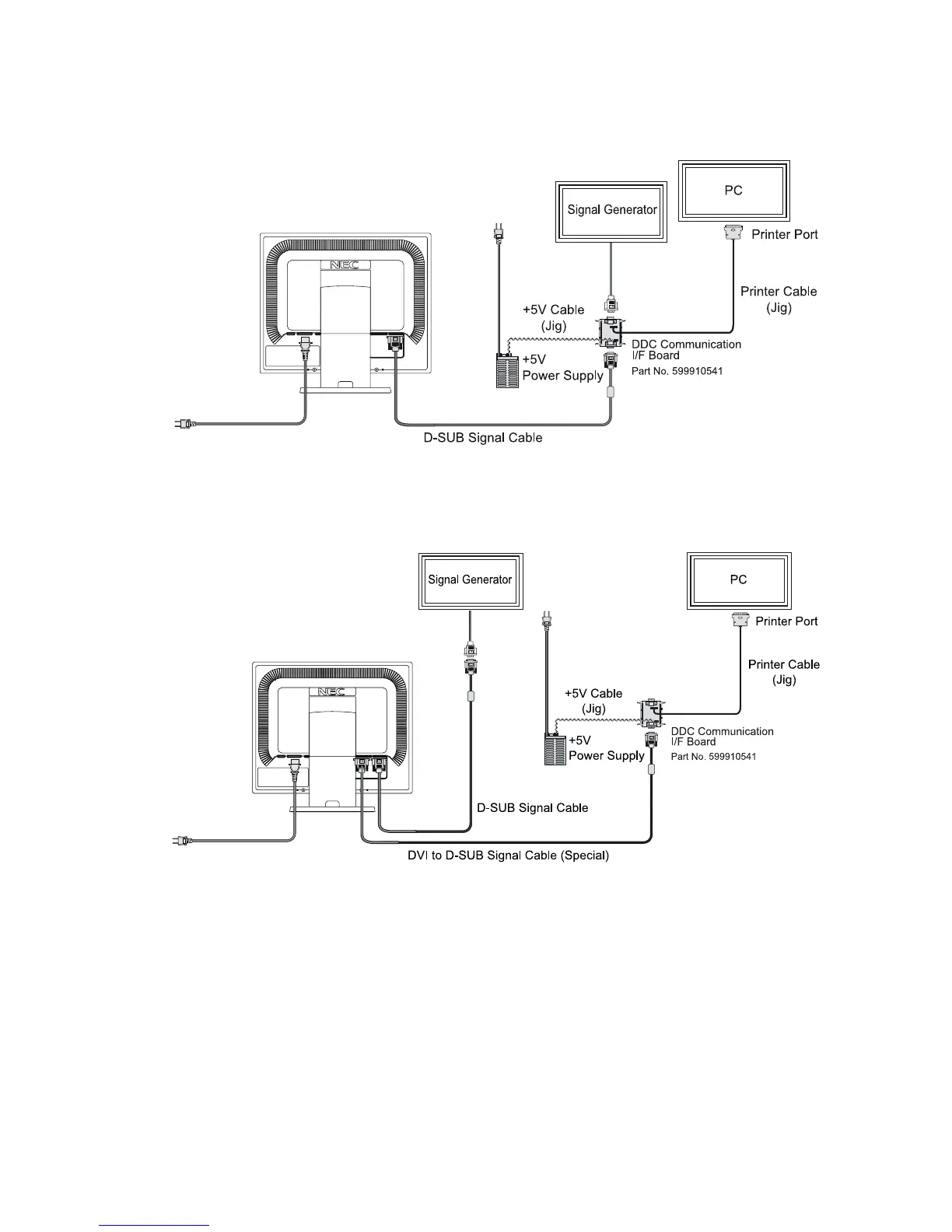

Fig.5.1.1 D-SUB connector connection
Fig 5.1.2 DVI-D connector connection
