5. Attach the cable cover
[For LCD4020]
• Remove the six screws (Figure 4).
• Use six of the M4 x 10 screws (included) to attach the
cable cover (Figure 5).

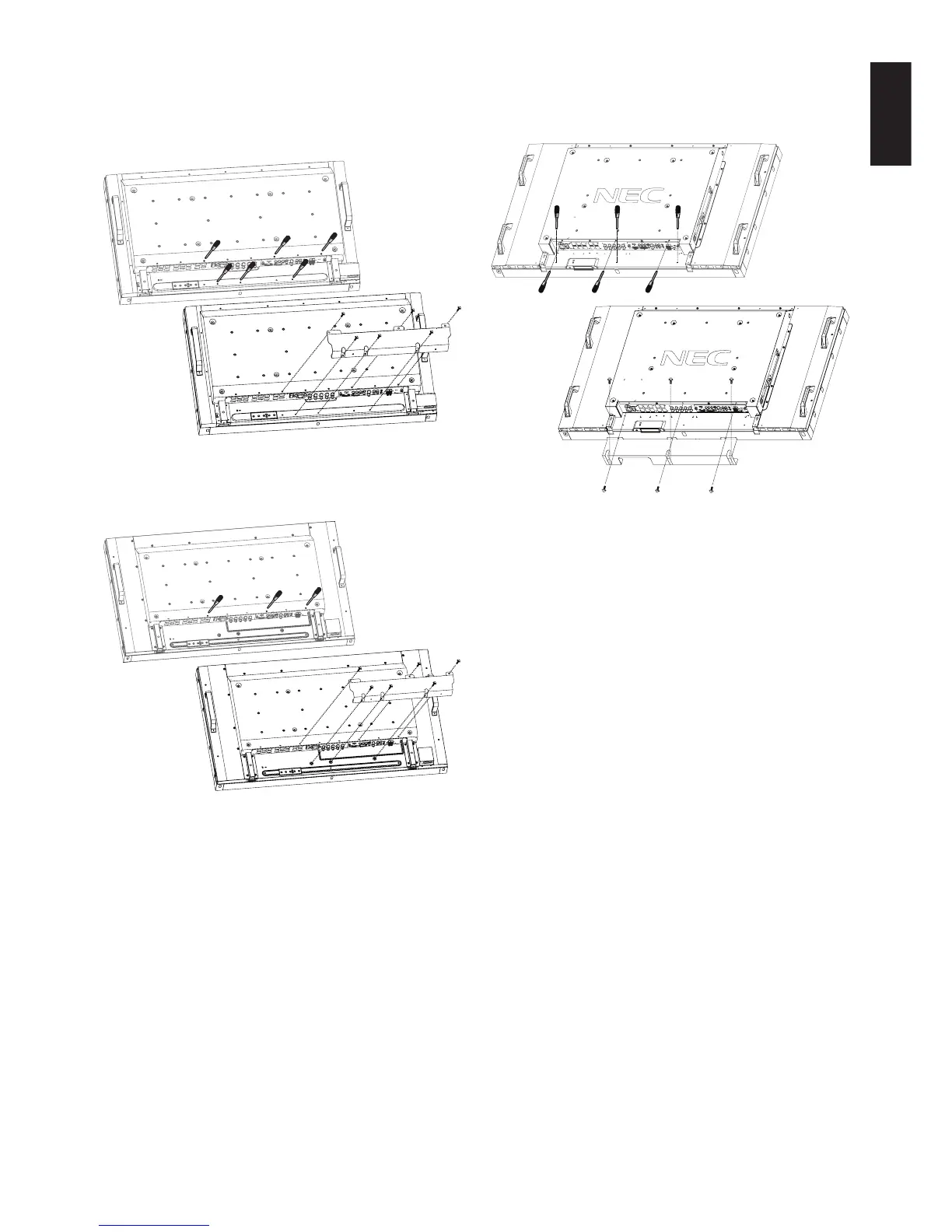

Figure 4
Figure 5
[For LCD4620]
• Remove the three screws (Figure 6).
• Use six of the M4 x 10 screws (included) to attach the
cable cover (Figure 7).
Figure 6
Figure 7
6. Switch on the power of all the attached
external equipment
When connected with a computer, switch on the power of
the computer first.
7. Operate the attached external
equipment
Display the signal from the desired input source.
8. Adjust the sound*
Make volume adjustments when required.
9. Adjust the screen (See pages 24 and 25)
Make adjustments of the screen display position when
necessary.
10. Adjust the image (See page 24)
Make adjustments such as brightness or contrast when
required.
11. Recommended Adjustments
To reduce the risk of the “Image Persistence”, please adjust
the following items based on the application being used:
“SCREEN SAVER”, “SIDE BORDER COLOR” (See page 27)
“DATE & TIME”, “SCHEDULE SETTINGS” (See page 25).
It is recommended that the “FAN CONTROL” setting
(See page 27) be turned to ON also.
*: The product you purchased may not have this feature.
