NEC MultiSync LCD4020 - Connecting with Digital Interface Equipment; Digital Connection via DVI

English-17
English
LCD monitor
Equipment with a
digital interface such
as a personal
computer with RGB
output (TMDS)
DVI-D connector
DVI-D connector
To DVI output
To audio output

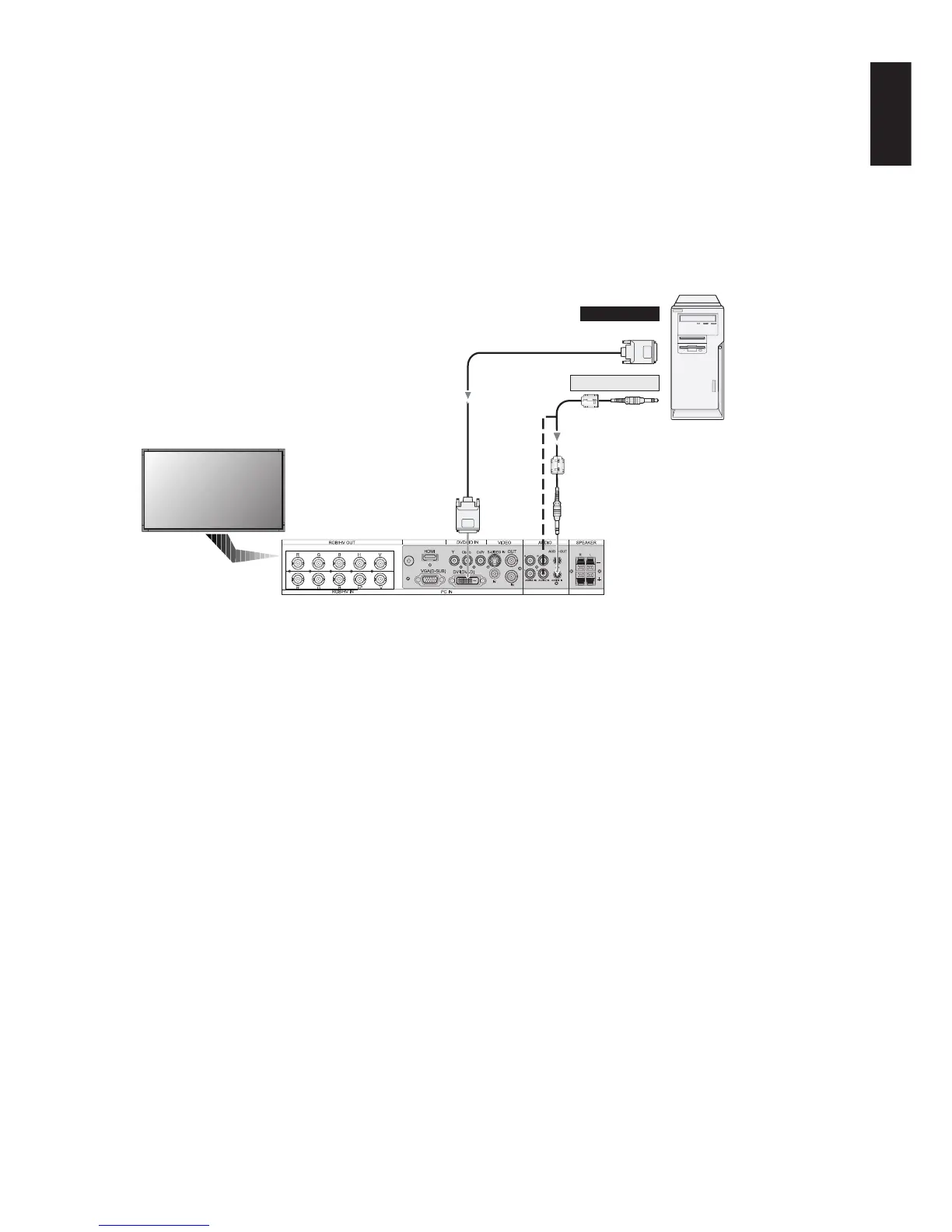

Connect the LCD Monitor to a Computer with a Digital Output
• The DVI IN connector also accepts a DVI-D cable.
• Input TMDS signals conforming to DVI standards.
• To maintain display quality, use a cable that conforms to DVI standards.
• AUDIO IN* 1, 2 and 3 can be used for audio input. To select audio source [IN1], [IN2] or [IN3] press the AUDIO INPUT
button.
• For mode selection, see “DVI MODE” on page 28.
Connecting with Digital Interface Equipment
Connections can be made with equipment that is equipped with a digital interface that complies with the DVI (Digital Visual
Interface) standard.
*: The product you purchased may not have this feature.
