Connect the LCD Monitor to Macintosh

• To connect the VGA IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable

(mini D-sub 15 pin to mini D-sub 15 pin).

• To connect the RGB/HV IN connector (BNC) on the LCD monitor, use a mini D-sub 15 pin to BNC x 5 signal cable (sold

separately) (BNC INPUT only).

• If you use with a Macintosh PowerBook, set “Mirroring” to Off.

Refer to your Macintosh’s owner’s manual for more information about your computer’s video output requirements and any

special identification or configuring your monitor’s image and monitor may require.

• AUDIO IN* 1, 2 and 3 can be used for audio input. To select audio source [IN1], [IN2] or [IN3] press the AUDIO INPUT

button.

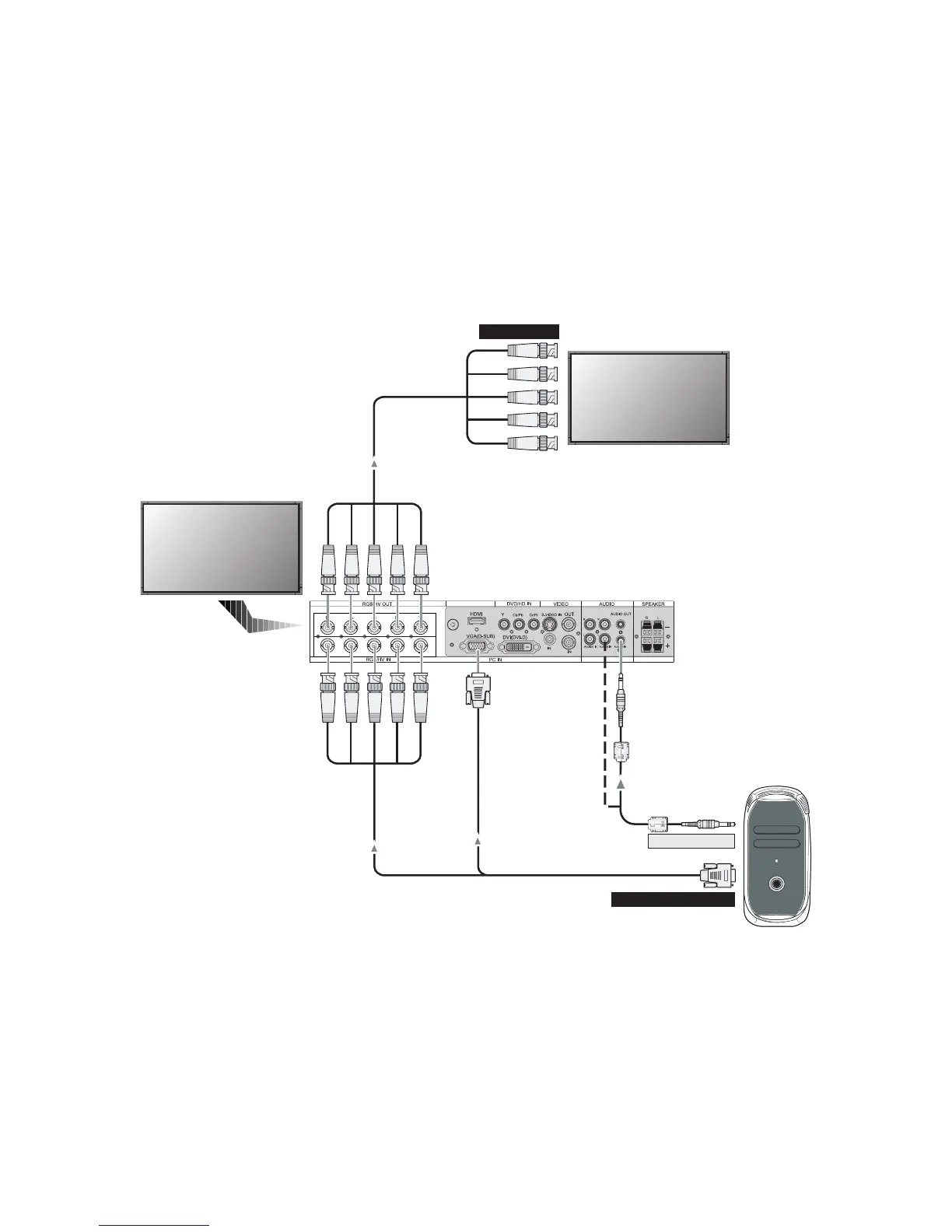

Connecting to a Macintosh Computer

Connecting your Macintosh computer to your LCD monitor will enable you to display your computer’s screen image. Some

video cards or drivers may not display images correctly.

LCD monitor

LCD monitor (second monitor)

BNC x 5

Macintosh

BNC x 5

Mini D-sub 15 pin

To audio output

To RGB/HV IN

To analog RGB output

BNC INPUT only

*: The product you purchased may not have this feature.

Other manuals for NEC MultiSync LCD4020

Need help?

Do you have a question about the NEC MultiSync LCD4020 and is the answer not in the manual?

General

Pixel pitch	0.648 x 0.648 mm
Response time	8 ms
Display diagonal	40 \
Display brightness	500 cd/m²
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Display number of colors	16.78 million colors
Aspect ratio	16:9
Display sRGB	Yes
Built-in camera	No
Headphone connectivity	3.5 mm
DVI-D ports quantity	1
Product color	Black
Product design	Digital signage flat panel
Panel mounting interface	600 x 200 mm
Power consumption (typical)	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; RoHS
Cables included	AC, VGA
