English−36
Import / export and firmware update with
USB storage device
Backup or copy the picture modes and monitor settings to a USB storage device connected to the SENS/MEM port.
You can also update the firmware of the monitor.

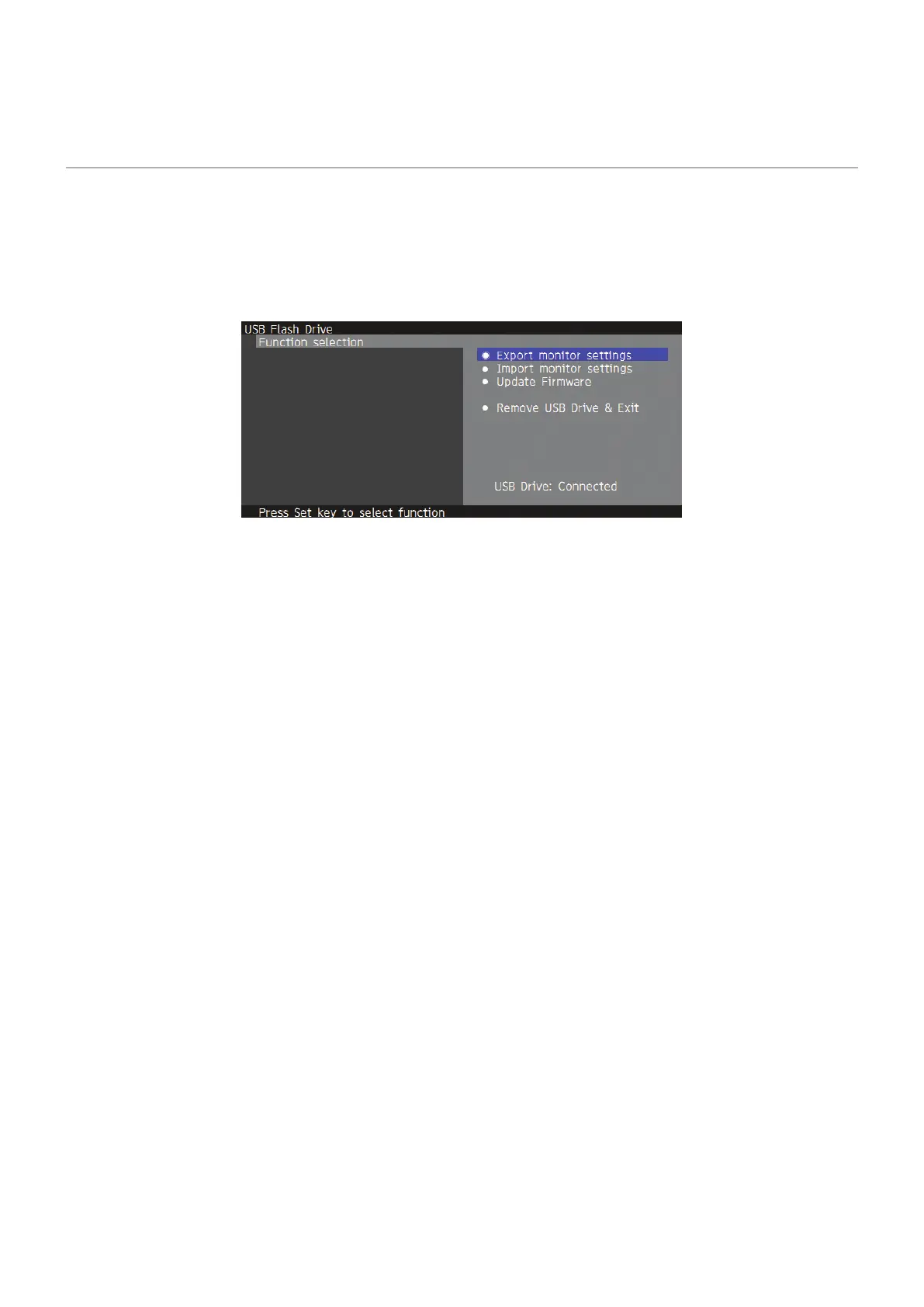

The [USB Flash Drive] OSD menu will be shown when you select [Import/Export] (see page 54) on the OSD menu or connect
a USB storage device to the SENS/MEM port.
NOTE: This function is not available when using the USB ports from the USB hub. This function will only work with the
SENS/MEM port.
Select a function on the menu and follow the instructions on the OSD message.
Export monitor settings
Exports the monitor settings to the USB storage device for back-up and copy. Select a type of export items.
• Current Picture mode: Export the picture mode settings of the current active window.
• All Picture modes: Export all picture modes settings.
• All monitor settings: Export all OSD settings.
The export file name is automatically set to avoid duplication.
Import monitor settings
Imports the exported setting file and overwrites the current OSD settings.
Only the OSD settings, which are contained in the exported file are overwritten.
Please put the exported files on the root folder of the USB storage device.
If you set the IP address of the monitor manually, please make sure not to duplicate the IP address.
NOTE: The monitor detects up to 15 files, so do not put more than 15 files on the drive.
Update Firmware
Updates the firmware of the monitor. Please put the firmware updating file on the root folder of the USB storage device in
advance.
The LED blinks green during firmware updating. When the update is complete, the monitor restarts automatically. After restart,
turn off and on the main power switch.
