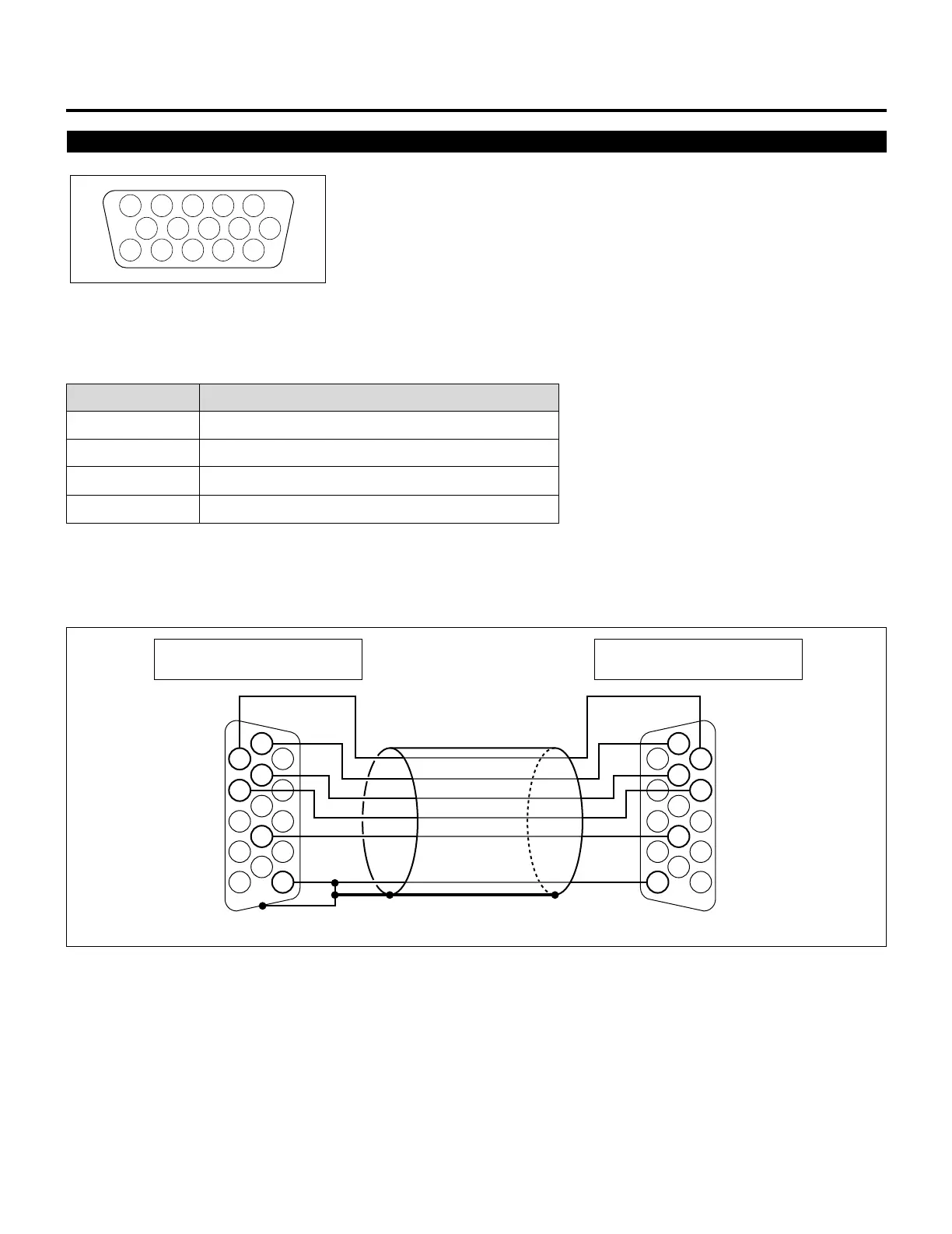

EXAMPLES OF CONNECTIONS
REMOTE 1 Terminal
This terminal is used for either connecting the ISS-6020/ISS-6020G Switcher or a third party external control device. When the
Switcher is used, connect it with the optional control cable (15-15 pin; 50 ft./16m; CTL-6010) to this terminal.
When used with the Switcher.
Pin No. FUNCTION
1, 2, 6 and 7 Sending and receiving data when the Switcher is used.
9 Identifying the Projector
15 Ground
Others Used inside the Projector. Normally set to OPEN.
When using with the Switcher ISS-6020/ISS-6020G, connect no. 1,2,6,7,9 and15 pins of the projector to the same no. pins of the
switcher as shown below.
REMOTE 1 terminal of the Switcher
mini D-sub 15 pin (male)
REMOTE 1 terminal of the Projector
mini D-sub 15 pin (male)
Shield (frame ground)
Pins without a number are open.
54321
109876
15 14 13 12 11
1
6
7
2
9
15
6
7
9
1
2
15
Pin Configuration of Optional CTL-6010 Cable
