BASIC OPERATION.
Picture Projection
To project a picture source, proceed as follows:
1 Turn on the main power of the projector.
• Press the POWER switch on the front panel to the ON position
(
I
)
.
2 Turn on the power of the connected equipment.
3 Turn on the power of the projector.
• Press the POWER ON button on the remote control or the POWER button on the rear panel.
4 Select an input signal source by pressing one of the ten INPUT buttons on the remote control. You can also select a signal from
the “INPUT SELECT” list.
• See “INPUT SELECTION” on page 24 for more details.
5 Adjust the picture and sound.
• See pages 20 through 23 for more details.
NOTE: The volume function works only with the ISS-6020/ISS-6020G Switcher.
6 To turn off the power, press the POWER OFF button on the remote control or the POWER button on the rear panel.
7 Press the POWER switch on the front panel to the OFF position (V) to turn off the main power of the projector.
8 Last, turn off the connected equipment power.

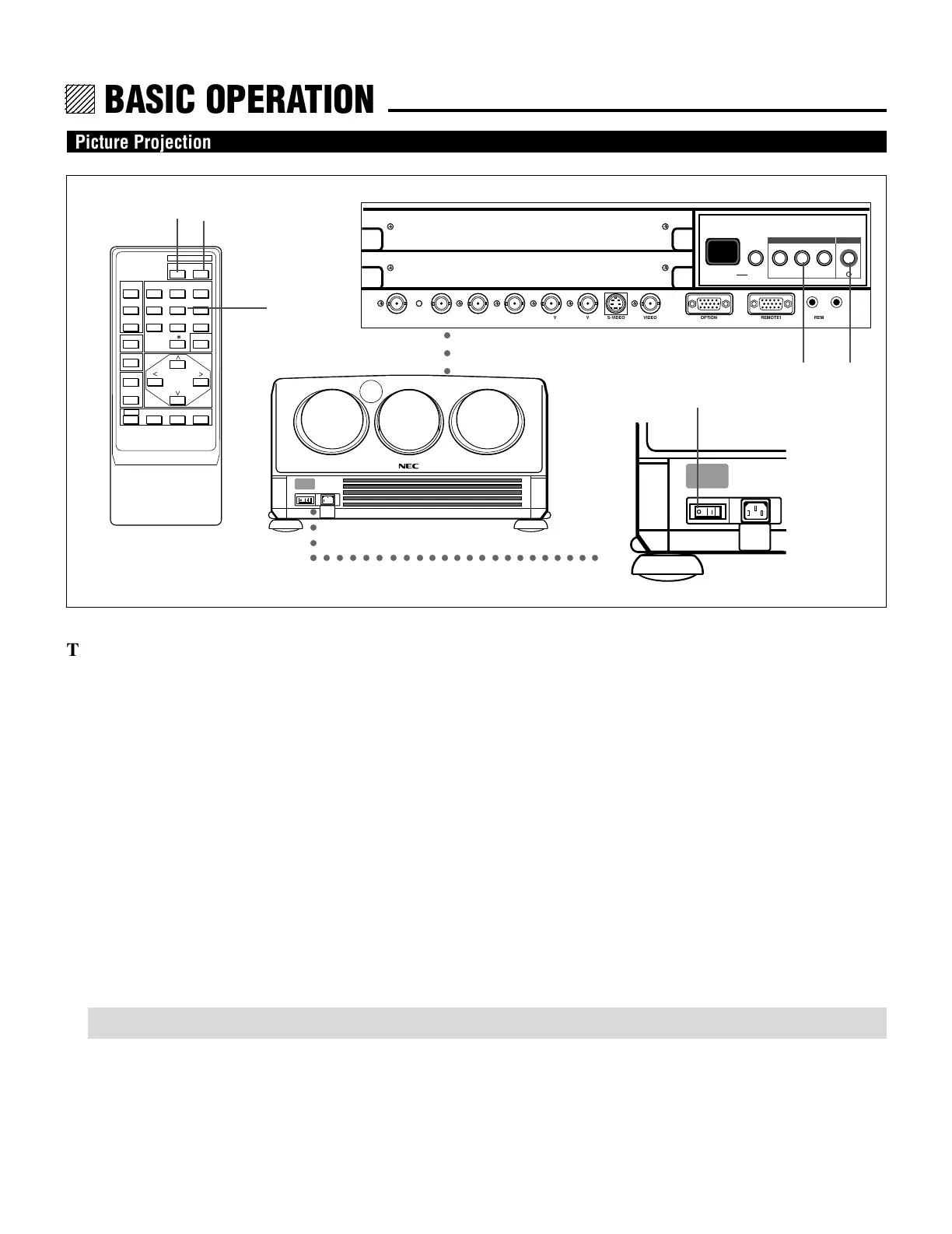

Front panel
