NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 6 of 12
Lens Shift Adjustable Range
Lens Shift Range for Desktop and Ceiling Mount
Application

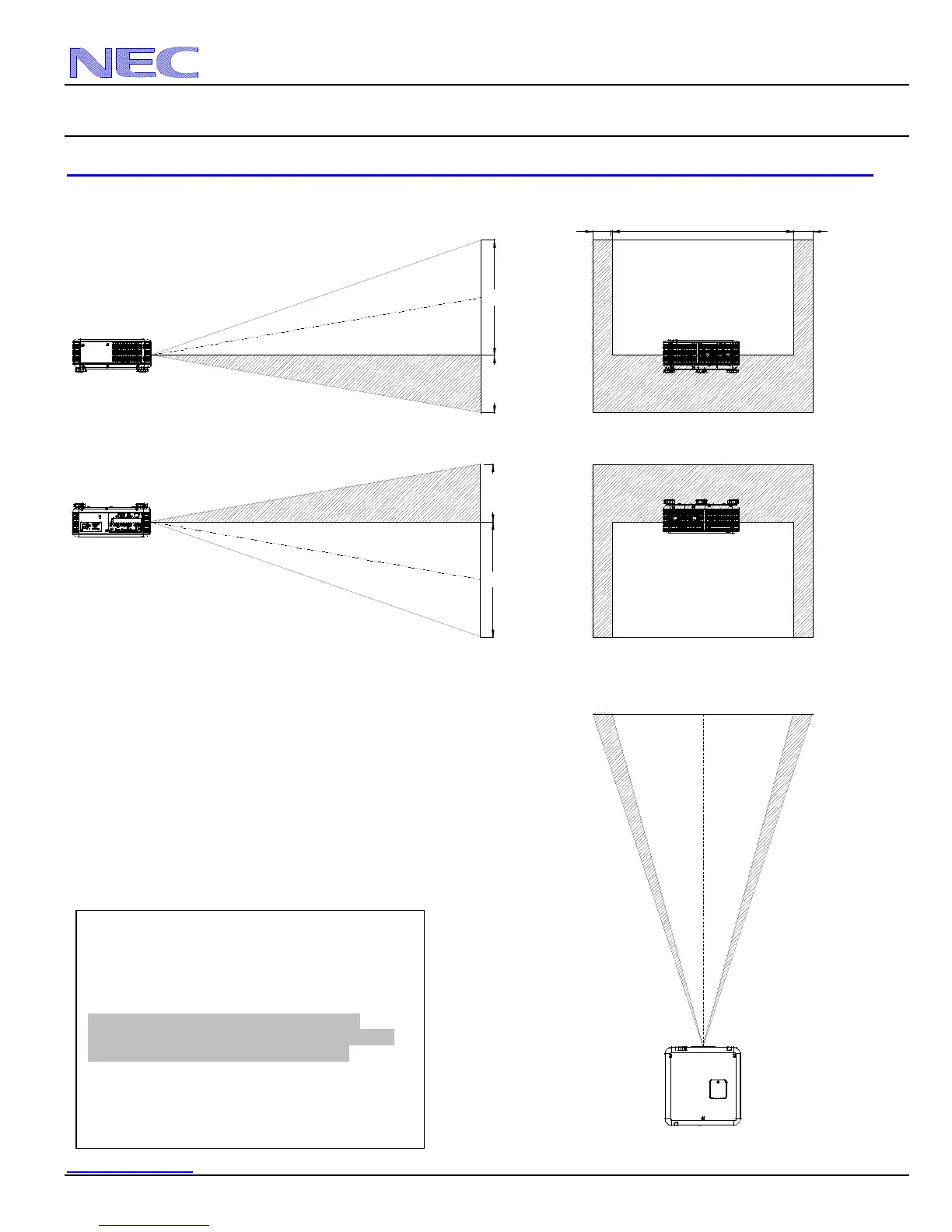

The diagram below shows the location of the image
position in the lens. The lens can be shifted within
the shaded area as shown using the normal
projection position as a starting point.
Note: Lens shift feature is not available with
NP16FL (rear lens). NP16FL should be used only
for “zero degree” / “no-offset” applications.
Note: Projector is set out of the box at maximum
lens shift, which is how it is depicted above.
(W: width of projected image, H: height of projected
image)
CEILING FRONT
DESKTOP FRONT
VERTICAL
VERTICAL
HORIZONTAL
H
H
0.5H
0.5H
W0.1W 0.1W
