NEC P350W - Pin Assignments of D-Sub COMPUTER Input Connector

198
9. Appendix

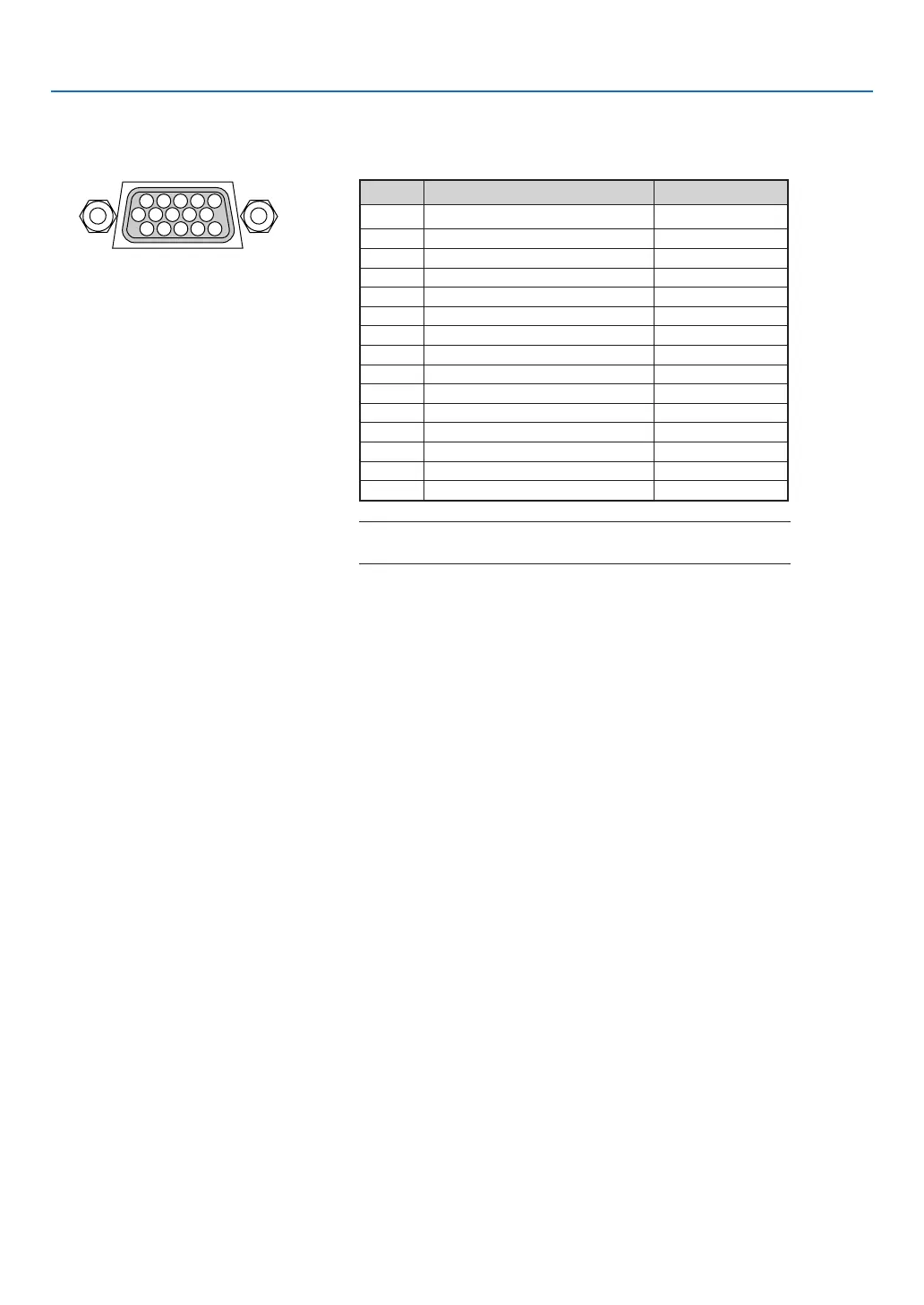

Mini D-Sub 15 Pin Connector
 Pin Assignments of D-Sub COMPUTER Input Connector
SignalLevel
Videosignal:0.7Vp-p(Analog)
Syncsignal:TTLlevel
51423
10
11 12 13 14 15
6978
COMPUTER 1 IN
NOTE:PinNos.12and15arerequiredforDDC/CI.

Pin No. RGB Signal (Analog) YCbCr Signal
 1 Red Cr
 2 GreenorSynconGreen Y
 3 Blue Cb
 4 Ground
 5 Ground
 6 RedGround CrGround
 7 GreenGround YGround
 8 BlueGround CbGround
 9 NoConnection
 10 SyncSignalGround
 11 NoConnection
 12 Bi-directionalDATA(SDA)
13 HorizontalSyncorCompositeSync
 14 VerticalSync
 15 DataClock
