NEC P350W - Terminal Panel Features

7
1. Introduction

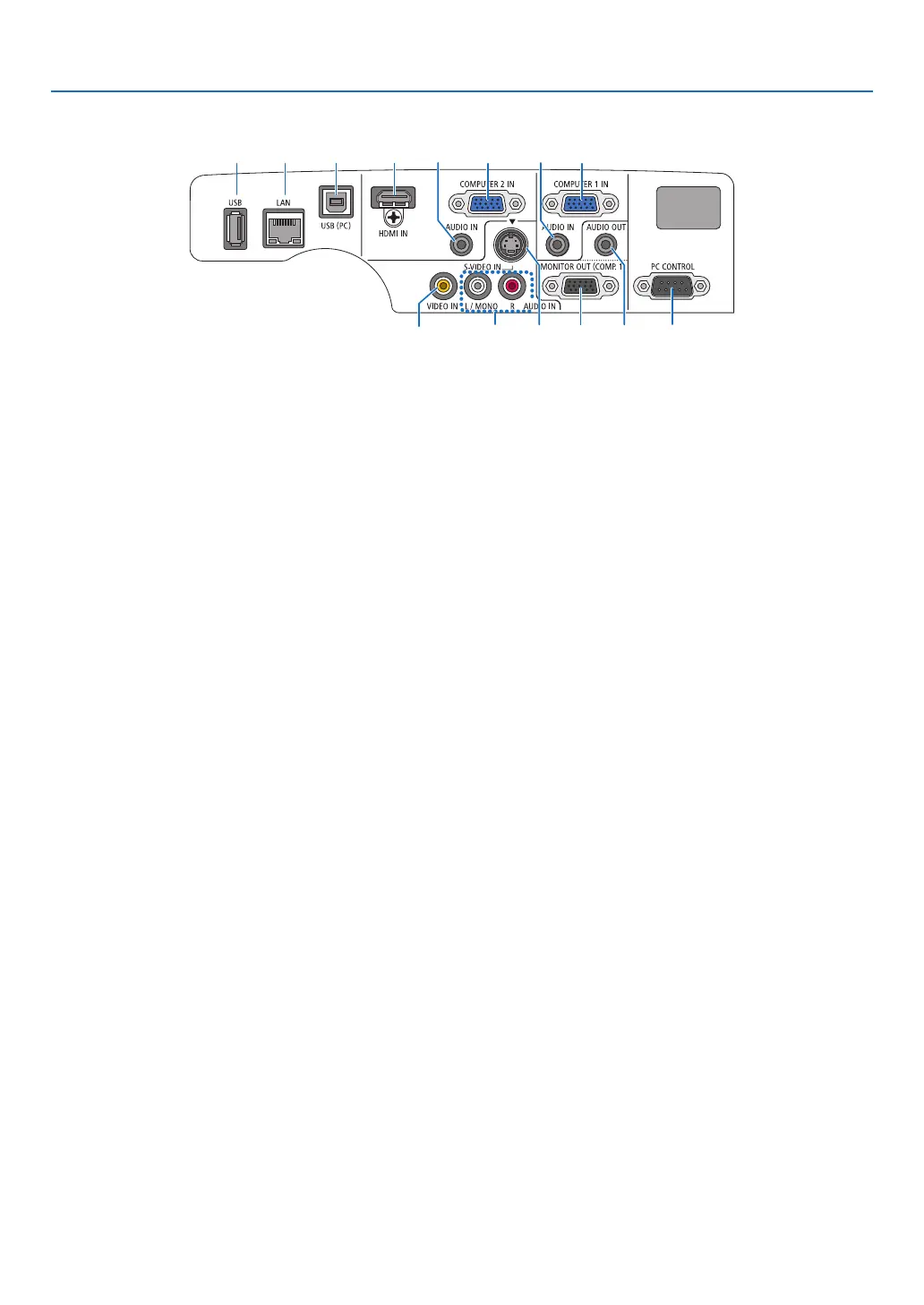

Terminal Panel Features
1235613 12
87
11 14910
4
1. COMPUTER 1 IN/ Component Input Connector
(Mini D-Sub 15 Pin)(→page132, 136, 157)
2. COMPUTER 1 AUDIO IN Mini Jack (Stereo Mini)
(→
page132, 134, 136)
3. COMPUTER 2 IN / Component Input Connector
(Mini D-Sub 15 Pin) (→page132, 136)
4. COMPUTER 2 AUDIO IN Mini Jack (Stereo Mini)
(→
page132, 134, 136)
5. HDMI IN Connector (Type A)
(→
page132, 137)
6. USB (PC) Port (Type B)
(→
page33, 34, 132)
7. MONITOR OUT (COMP. 1) Connector (Mini D-Sub
15 Pin) (→page134)
8. AUDIO OUT Mini Jack (Stereo Mini)(→page134)
9. S-VIDEO IN Connector (Mini DIN 4 Pin)
(→page135)
10. VIDEO IN Connector (RCA)(→page135)
11. VIDEO/S-VIDEO AUDIO IN L/MONO, R (RCA)
(→
page135)
12. LAN Port (RJ-45)(→page141)
13. USB Port (Type A)(→page59, 180)
14. PC CONTROL [PC CONTROL] Port (D-Sub 9 Pin)
(→
page200)
 UsethisporttoconnectaPCorcontrolsystem.This
enablesyoutocontroltheprojectorusingserialcommu-
nicationprotocol.Ifyouarewritingyourownprogram,
typicalPCcontrolcodesareonpage200.
