Specifications
Product Name PlasmaSync™ 61MP1 Plasma Monitor
Product Code PX- 61XM1A
Screen Size 53.2"(H)⳯29.9"(V) inches
1351(H)⳯760(V) mm
diagonal 61"
Aspect Ratio 16 : 9
Resolution 1365(H)⳯768(V) pixels
Pixel Pitch 0.039"(H)⳯0.039"(V) inches
0.987(H)⳯0.987(V) mm
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 93.8 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1
, DVD*
1
, DTV*
1
Input Terminals
RGB
Visual 1 (Analog) mini D-sub 15-pin⳯1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)⳯1*
2
Visual 3 (Digital) DVI-I 29-pin⳯1*
3
(Not compatible with analog input)
Video
Visual 1 RCA-pin⳯1
Visual 2 BNC⳯1
Visual 3 S
2-Video: DIN 4-pin⳯1
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])⳯1*
1
Visual 2 BNC (Y, PB[CB], PR[CR])⳯1*
1,
*
2
Audio Stereo RCA⳯ 3(selectable)
External Control D-sub 9-pin⳯1(RS-232C)
Sound output 7W+7W at 6 ohm
Power Supply AC120V 50/60Hz
Current Rating 6.9A (maximum)
Power Consumption 660W (typical)
Dimensions 58.3 (W)⳯35.0 (H)⳯4.7 (D) inches
1480 (W)⳯890 (H)⳯119(D) mm
Weight 134.5 lbs / 61.0 kg
Environmental Considerations
Operating Temperature 0°C to 35°C / 32°F to 95°F
Humidity 20 to 80% (no condensation)
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Front Panel User Controls Power on/off, Input source select,
Volume up/down, OSM control
Remote Control Functions Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions Picture (Contrast / Brightness / Sharpness/
Color / Tint / Picture mode / Color
temperature/ Noise reductions), Sound (Bass
/ Treble/ Balance),Screen (V-Position / H-
Position/ V-Height / H-Width /Auto Picture
/ Fine picture/ Picture adjustment), Function
(OSM/ OSM adjustment/ Power
management/ Gray level/ Cinema mode/
RGB3 Adjustment, Long Life (PLE, Orbiter,
Inverse, White)/ Reset)/Option (Audio input/
BNC select/ RGBselect/ HD select/ Picture
Size), Information (Frequency / Language*
/ Color system)
*English, German, French, Italian, Spanish,
Swedish, Japanese
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this
system
480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
*
2
The 5-BNC connectors are used as RGB/PC2 and
HD/DVD2 input. Select one of them under “BNC
SELECT”.
*
3
It doesn’t cope with copy protection.
Other Features 3D motion adaptive Scan Converter
(with 2-3 pull down Converter),
Digital Zoom function
(100-300% Selectable),
Self Diagnosis, Anti Image Burn,
Color Temperature Select, Control Lock,
Power management, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only),
Multi screen operation
Accessories Remote control with two AAA batteries,
Remote cable, RGB cable (Mini D-Sub
15-pin to Mini D-Sub 15-pin connector),
Power cord, User’s Manual, Safety metal
fittings, Ferrite cores, Bands
Regulations UL Approved (UL 60950/CSA C22.2,
No.60950)
DOC Canada requirements
Meets FCC class A requirements

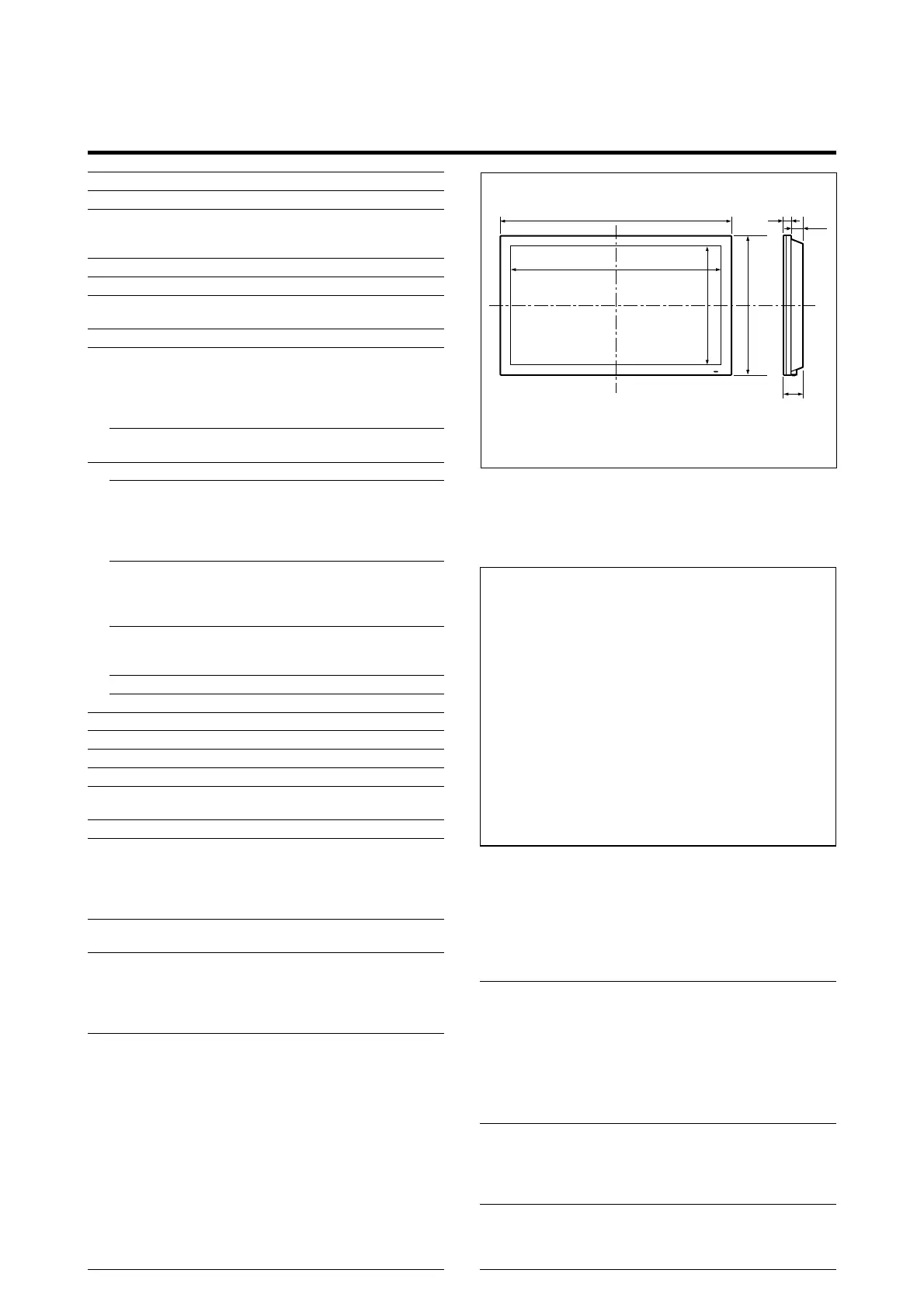

Units are in inch
(mm)
4.7"
(119)
1.8"
(45)
2.9"
(74)
58.3" (1480)
35.0" (890)
53.9" (1380)
30.7" (790)
