NEC Display Solutions of America, Inc.
PX1005QL Installation Guide
Desktop and Ceiling Mount Rev 1.2
www.necdisplay.com PX1005QL Page 6 of 12

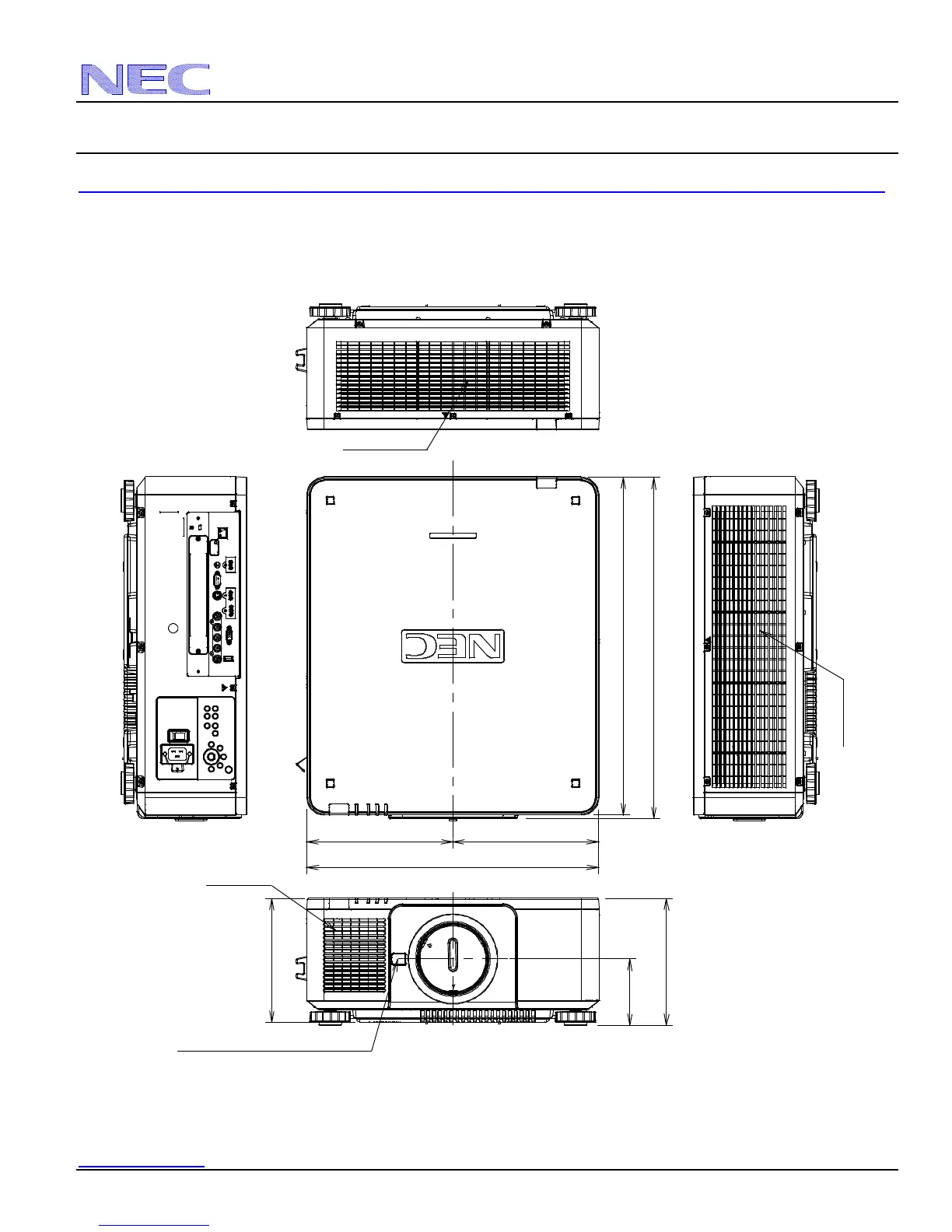

Cabinet Dimensions
The following diagrams show the cabinet dimensions for the PX1005QL.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown without a lens
22.65
22.89
9.82 9.82
19.63
8.31
4.46
8.49
INTAKE
INTAKE
EXHAUST
LENS RELEASE BUTTON
