PX602UL/PX602WL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PX602UL/PX602WL Page 10 of 13

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT HDMI 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT DISPLAYPORT 02H 03H 00H 00H 02H 01H A6H AEH

INPUT SELECT BNC 02H 03H 00H 00H 02H 01H 02H 0AH

INPUT SELECT BNC (CV) 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT BNC (Y/C) 02H 03H 00H 00H 02H 01H 0BH 13H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H 20H 28H

INPUT SELECT SLOT 02H 03H 00H 00H 02H 01H ABH B3H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)

Data Length: 8 bits

Parity: No Parity

Stop Bit: One bit

X on/off: None

Communications: Full duplex

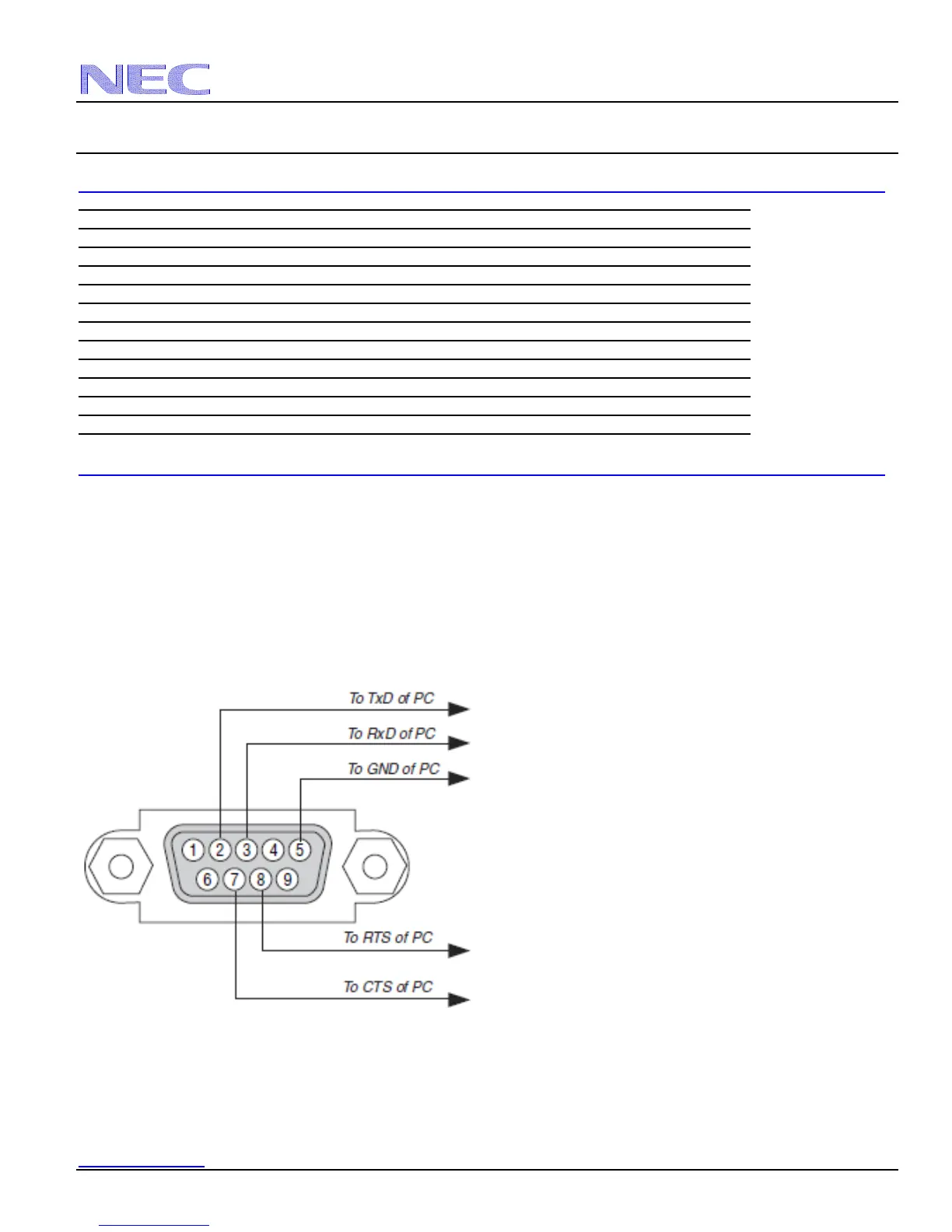

PC Control Connector (D-Sub 9P)

Note 1 : Pins 1, 4, 6, and 9 are used inside the projector.

Note 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

Note 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
