NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX602UL/PX602WL Page 5 of 13
Lens Shift Adjustable Range
Lens Shift Range for Desktop and Ceiling Mount Application

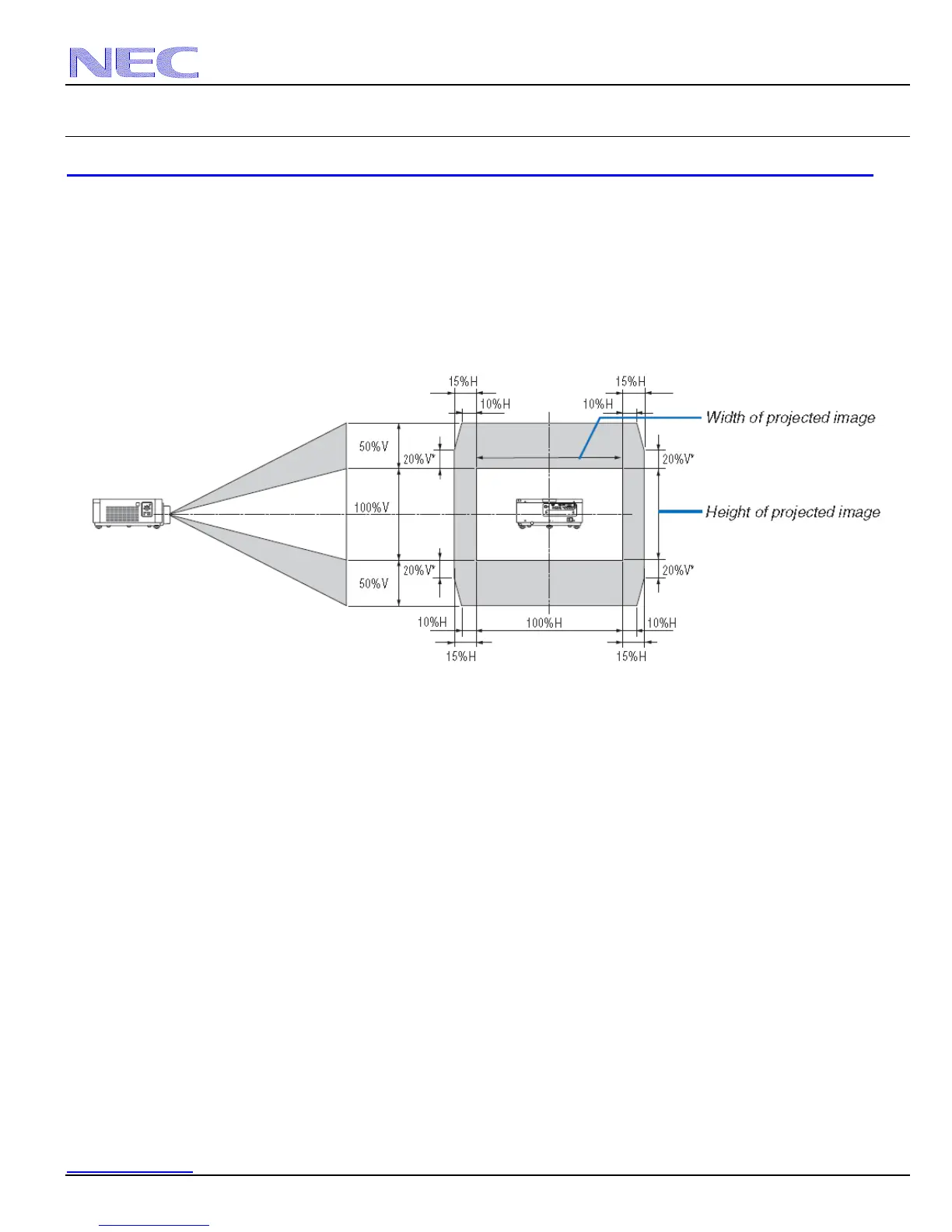

The diagram below shows the location of the image position in the lens for the PX602UL. The PX602WL has a maximum vertical
lens shift of +/- 30%. The lens can be shifted within the shaded area as shown using the normal projection position as a starting
point.
Note: Projector is set out of the box at center position, which is how it is depicted above.
(W: width of projected image, H: height of projected image)
