INSTALLATION PROCEDURE
19
INSTALLATION
PROCEDURE

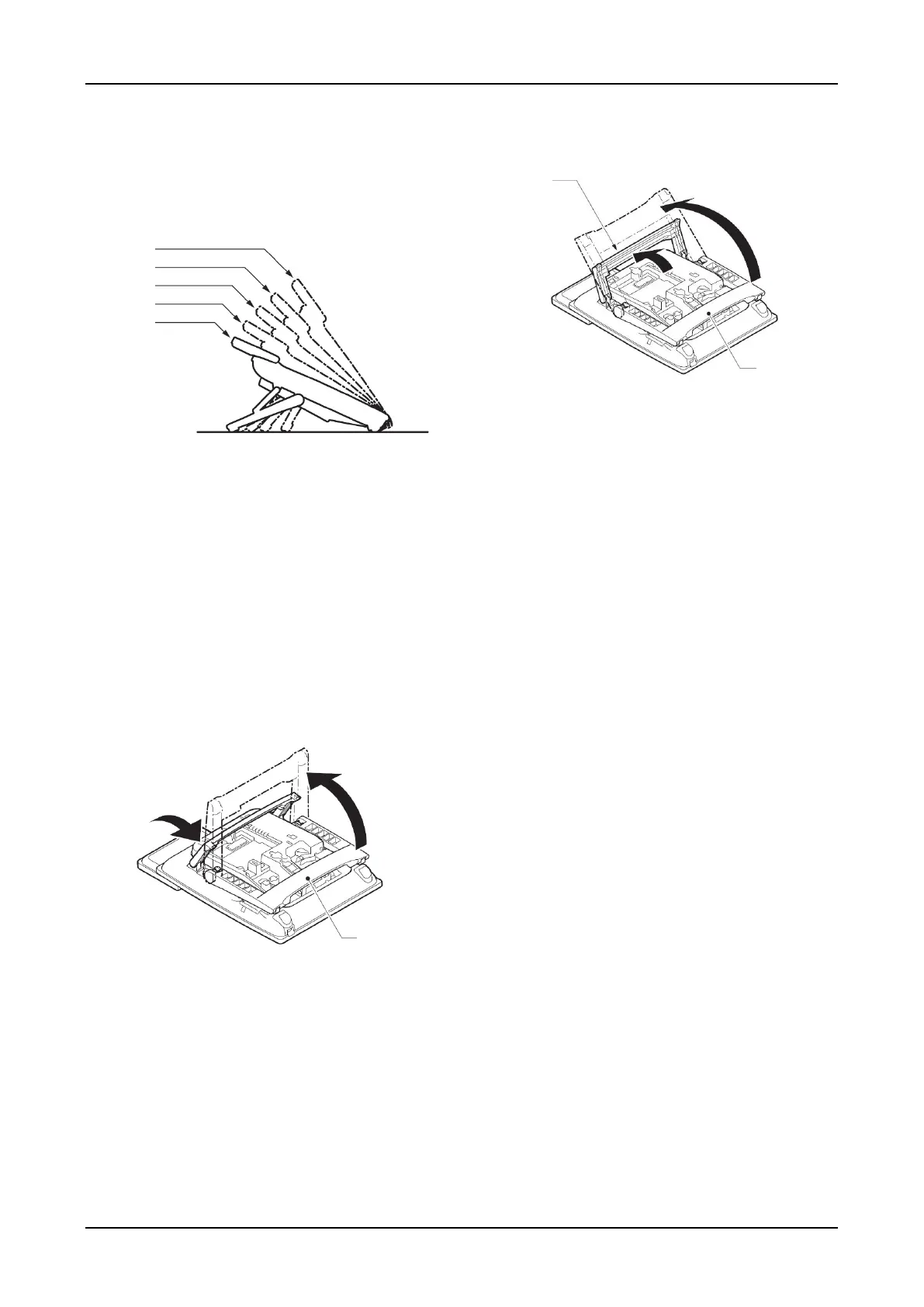

ADJUSTING ANGLE OF TILT LEG
The angle of the tilt leg can be adjusted in 5 levels.
(1) First Position
(2) Second Position
(3) Third Position
(4) Forth Position
(5) Fifth Position
Raising Tilt Legs
1. Turn the terminal over (key side down).
2. Raise Tilt Legs to desired height.
3. Turn the terminal over (key side up).
Lowering Tilt Legs
1. Turn the terminal over (key side down).
2. Lower Tilt Legs to desired height.
(1) Stopper
(2) Tilt Legs
3. Turn the terminal over (key side up).
(1)
(2)
(3)
(4)
(5)
Tilt Leg
(1)
(2)
