INSTALLATION PROCEDURE
20

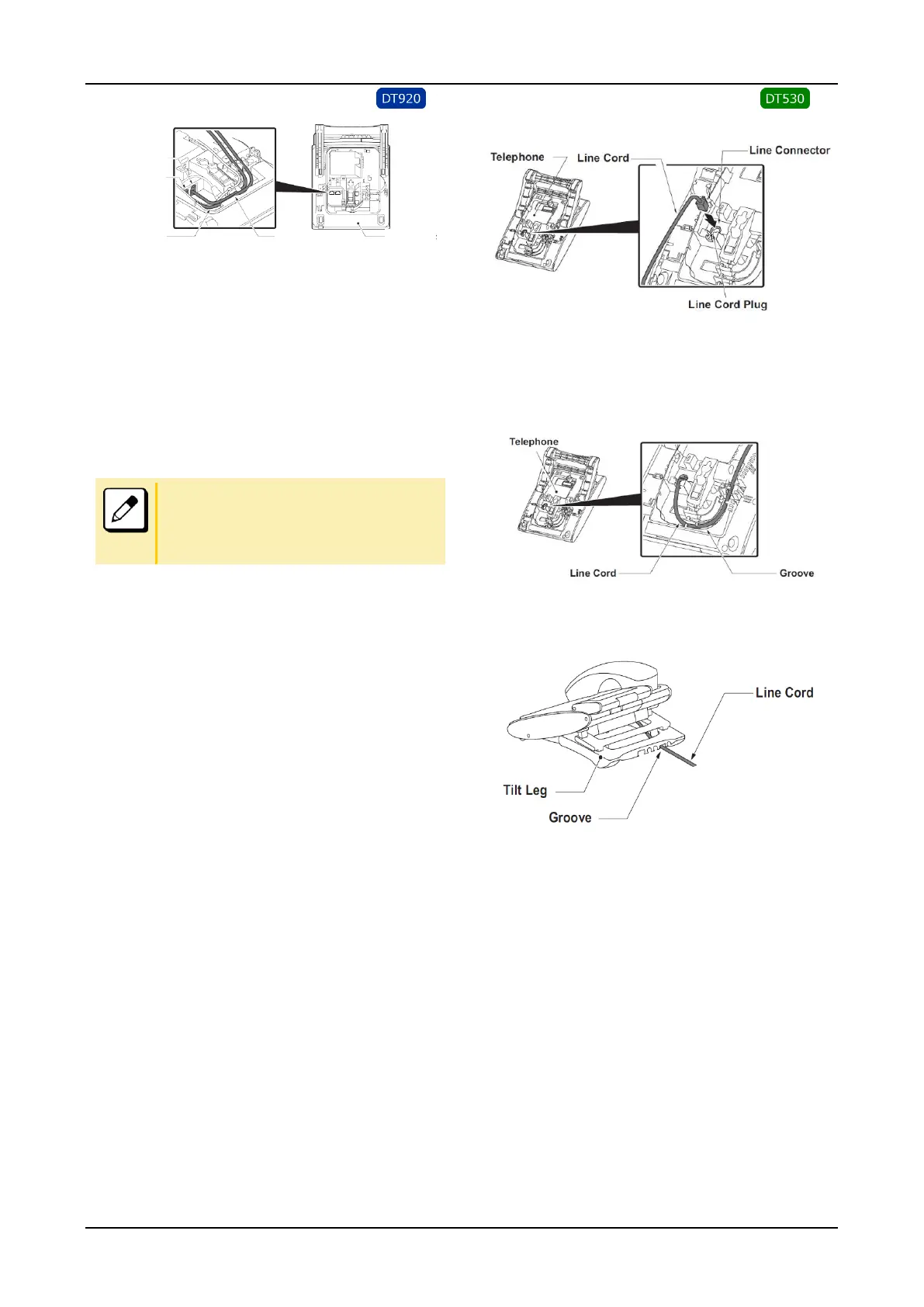

CONNECTING LAN CABLE
(1) LAN Cable connector for PC (PC Port)
(2) LAN Cable connector for the premises
(3) LAN Cable
(4) Groove
(5) Terminal
1.
Connect LAN cable to LAN cable connector (LAN
(=)) of the terminal.
2.
Press the LAN cable into the groove.
■The availability of Gigabit Ethernet depends on the
terminal license setting or the terminal model. For
details, contact the system administrator.
■1000 BASE-T is available when Gigabit Ethernet is
enabled.
CONNECTING LINE CORD
1.
Insert a Line cord plug into the Line connector on
the back of the telephone set until you hear it
click.
2.
Thread the line cord through the groove on the
back of the telephone.
3.
Lead the line cord out through the groove on the
tilt leg as shown in the figure below.
