NEC Univerge SV9100

Issue 1.0
IDT/Net2Phone
6
SIP Trunking Service Configuration Guide
!
!

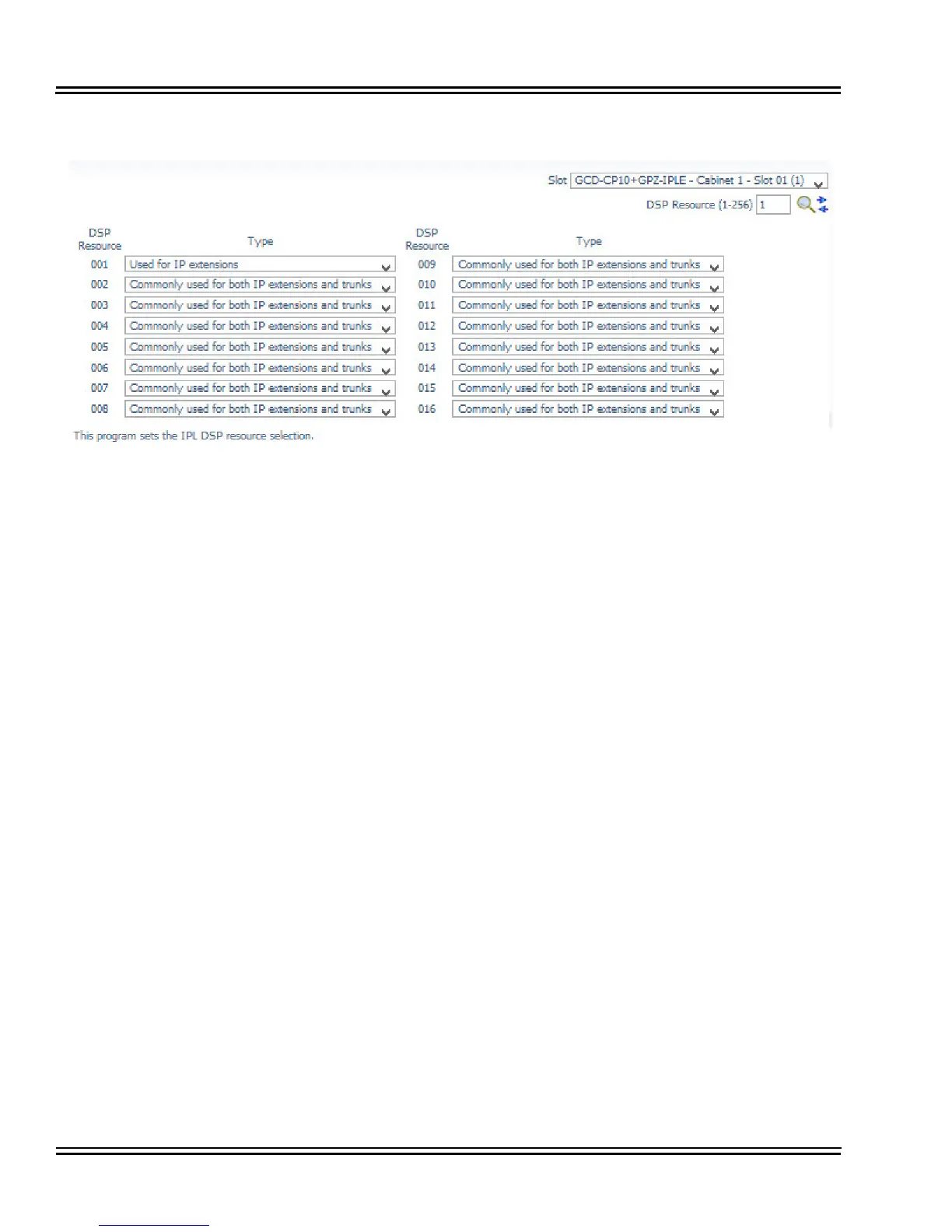

Figure 2 IPL DSP Resource Selection
10-19-01 : VOIP DSP Resource Selection
Specify the operating mode for the DSP resources (0=common use (extensions
and trunks), 1=IP extensions only, 2=SIP trunks only, 3=Networking, 4=NetLink,
5=Blocked, 6=Common without Unicast Paging, 7=Multicast, 8=Unicast Paging).
