3.13 DID (TN to ext map)
Values shown are for example purposes only. Your actual values will be
determined by your implementation team.

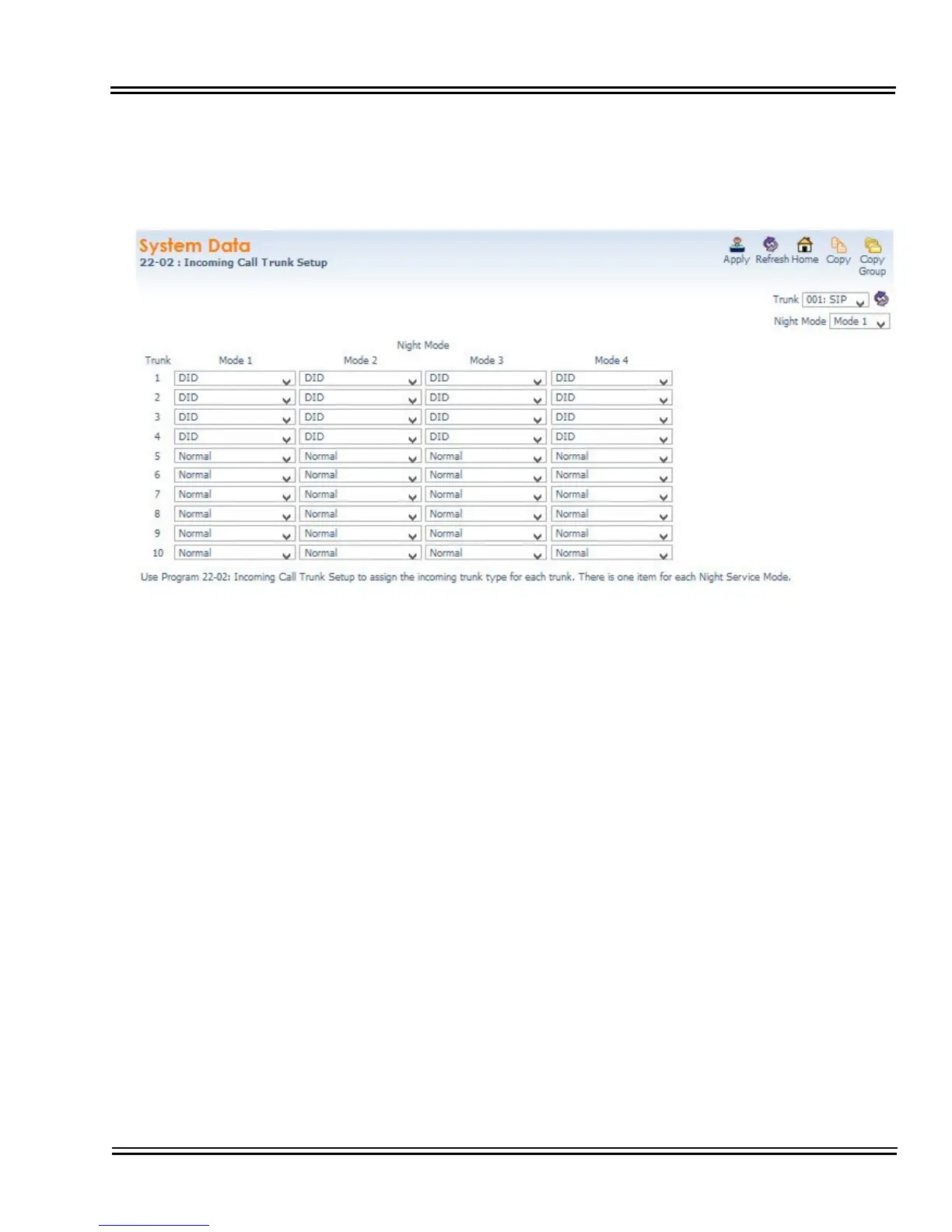

Figure 14 Incoming Call Trunk Setup
22-02-01 : Incoming Call Trunk Setup
Define the SIP trunks as type 3 (DID). In addition to the SIP trunk programming,
refer to the DID feature in the SV9100 Features and Specifications Manual for
additional DID programming (e.g., 14-05, 22-04, 22-09, 22-10, 22-11, 22-12,
22-13, 22-17, 34-01).
