NEC V332X - Projection Image Size and Distance

34
English ...
Installation

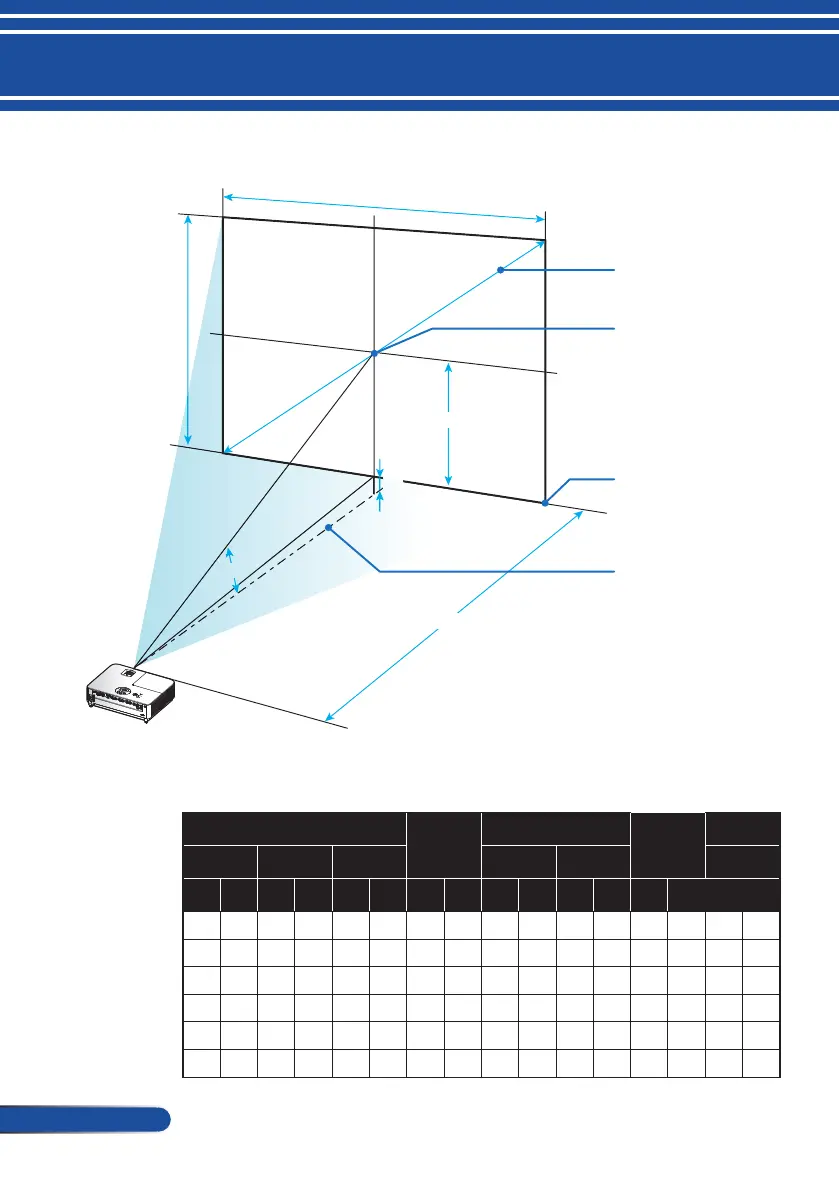

Adjusting Projection Image Size (Diagonal)
Projection Image Size from 30” to 300” (0.76 to 7.62 meters).
Models: NP-V332X, NP-V302X
Screen Size
(B)
(C)
D
(WIDE)
α
α
Diagonal (A) Width Height Wide Tele Wide Tele
inch mm inch mm inch mm inch mm inch mm inch mm inch mm degreedegree
30 762 24 610 18 457 12 297 47 1189 52 1311 3 69
14.0 12.8
40 1016 32 813 24 610 16 396 62 1585 69 1747 4 91
14.0 12.8
60 1524 48 1219 36 914 23 594 94 2377 103 2621 5 137
14.0 12.8
70 1778 56 1422 42 1067 27 693 109 2773 120 3058 6 160
14.0 12.8
80 2032 64 1626 48 1219 31 792 125 3169 138 3495 7 183
14.0 12.8
90 2286 72 1829 54 1372 35 891 140 3566 155 3932 8 206
14.0 12.8
(B)
(D)
(C)
(α)
(D)
(α
α
)
Screen Width
Screen Diagonal
Screen Center
Screen Bottom
Lens Center
Screen Height
B = Vertical distance between lens center
and screen center.
C = Throw distance.
D = Vertical distance between lens center
and bottom of screen (top of screen
for ceiling application).
= Throw angle.
α
