7. Appendix

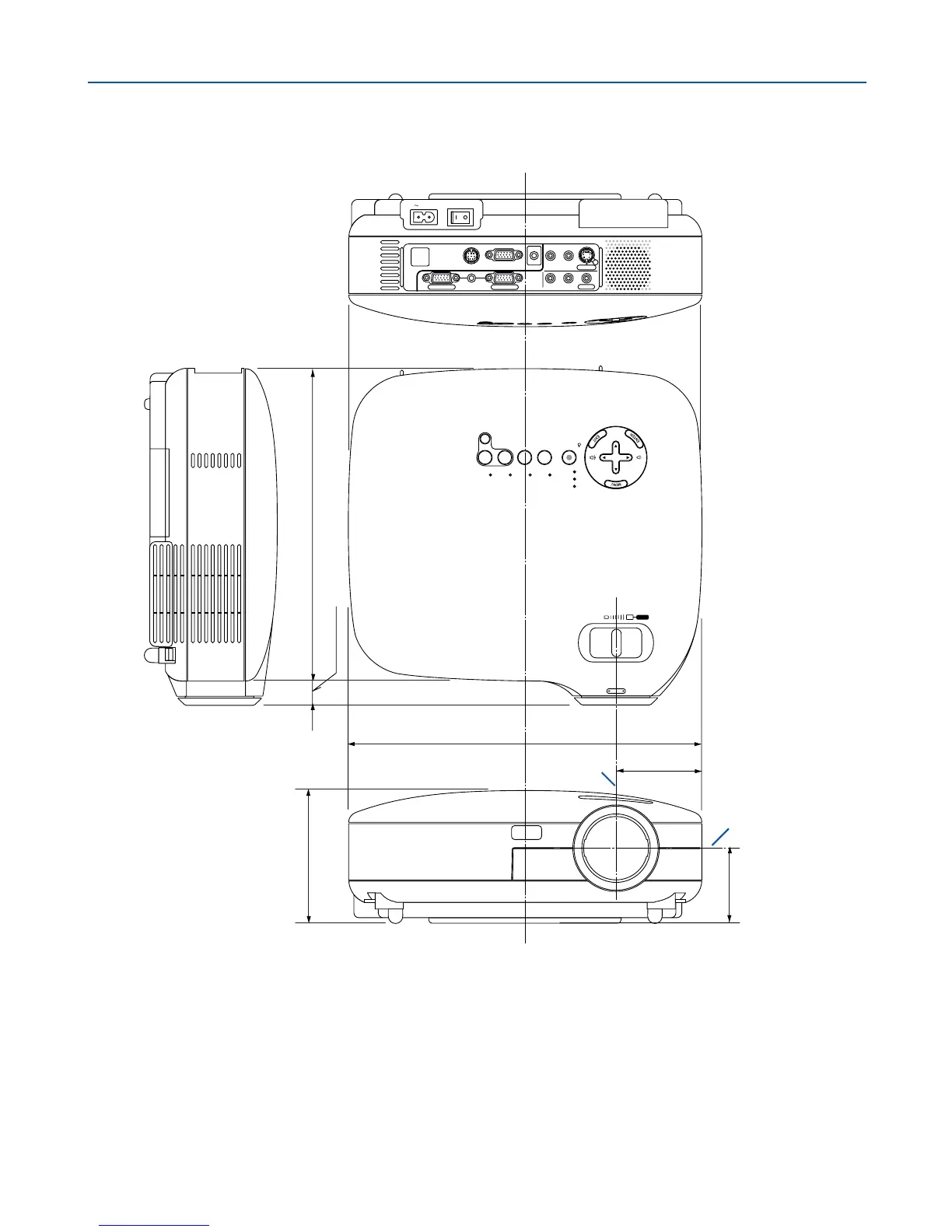

 Cabinet Dimensions
LAMP
STATUS
POWER VIDEO
AUTO
ADJ.
S-VIDEO COMPUTER-1 COMPUTER-2
ON/STAND BY
ZOOM
FOCUS
SELECT
AC IN
AUDIO OUT
AUDIO
S-VIDEO IN
COMPUTER 2 IN
VIDEO IN
COMPUTER 1 IN
MONITOR OUT
PC CONTROL
L/MONO
R
AUDIO
L/MONO
R
AUDIO
112.5 (4.4)
260 (10.2)
20.3 (0.8)
64.6 (2.5)
294 (11.6)
71.5 (2.8)
Lens center
Lens center
Unit: mm (inch)
VT670/VT570/VT470
