ANPR

5.2.6.1 ACTION: SAVE IMAGE TO FTP SERVER

This function allows saving the images of vehicle detected by the ANPR to a remote ftp- server. See chapter 4.1

for details about connecting the ethernet interface.

Enable: Select YES to enable save to an ftp-server.

Jpeg Quality: Jpeg image quality. The value may range from 1 to 100 where 1 is the maximum

compression level (lowest quality) and 100 is the minimum compression level

(highest image quality). Suggested values from 50 to 90.

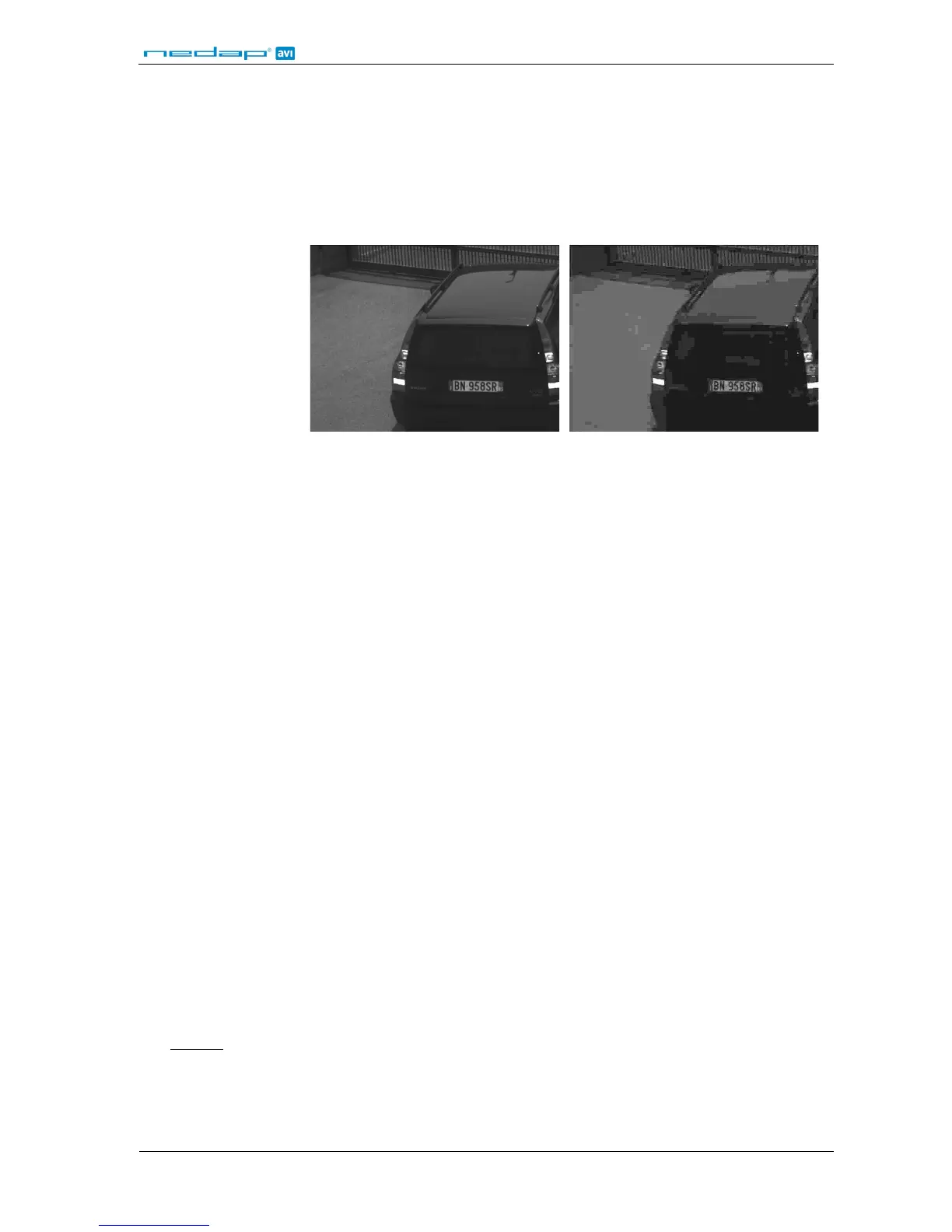

Example jpeg image quality 90. Example jpeg image quality 5.

Crop Image: This setting allows sending to an ftp-server a crop of the full image. The crop is cut

around the number plate. Available sizes are: 320x240, 640x480, 800x600 and

1024x768. Sending an image crop instead of the full image saves space on the

storage server and cuts down on transmission time on the network (this is useful

when working with low bandwidth networks).

Path Name: Specify the folder name where the image is saved. It is necessary to use appropriate

tags to indicate this folder name. For example, use the %DATE tag in order to use the

date of grabbing as folder name.

If the specified directory does not exist, it is automatically created.

File Name: Specify the image file name. It is necessary to use appropriate tags to indicate this file

name. For example, use the %PLATE tag in order to insert the read number plate in

the name.

Text Position: Specify the position of a text window inside the saved image. This window contains

the information entered in Text Value. The allowed values are: TOP-LEFT, TOP-RIGHT,

BOTTOM-LEFT, BOTTOM-RIGHT and DISABLED.

Text Options: It allows enabling the option NOT-OVER-PLATE. This option moves automatically the

text window when positioned over the plate, in order to not cover the plate.

Text Value: Specify the information to be included in the image. It is necessary to use appropriate

tags to provide this information. Click the Help-button to check the supported tags.

FTP IP: The ftp-server IP address.

FTP Username: Username of the ftp-server user.

FTP Password: Password of the ftp-server user.

FTP Port: Port number of the ftp- server. Usually port number 21.

FTP Passive Mode: It allows enabling (YES) the passive modality (PASV) for data transferring.

Buffering on SD: In case of network failure and Buffering on SD is enabled, the camera will save all

data regarding the actions. When the network connection is restored, the ANPR will

manage automatically all data stored, freeing the memory. The saving is based over a

circular buffer. In case of full memory the ANPR will overwrite oldest data.

FTP LINK

: Click on this FTP-LINK to directly access the ftp-server. This hyperlink uses the FTP

parameters entered above. This is useful to check whether the ftp-server is operating

properly.

Nedap ANPR User Manual
