Nedap VP1007 - Connections

VP1007-200PM-00 ISO Reader I/O Manual version 0.4 / Page 4
4.2 Connections
See the relevant equipment manual relating to where the VP1007 is to be installed.

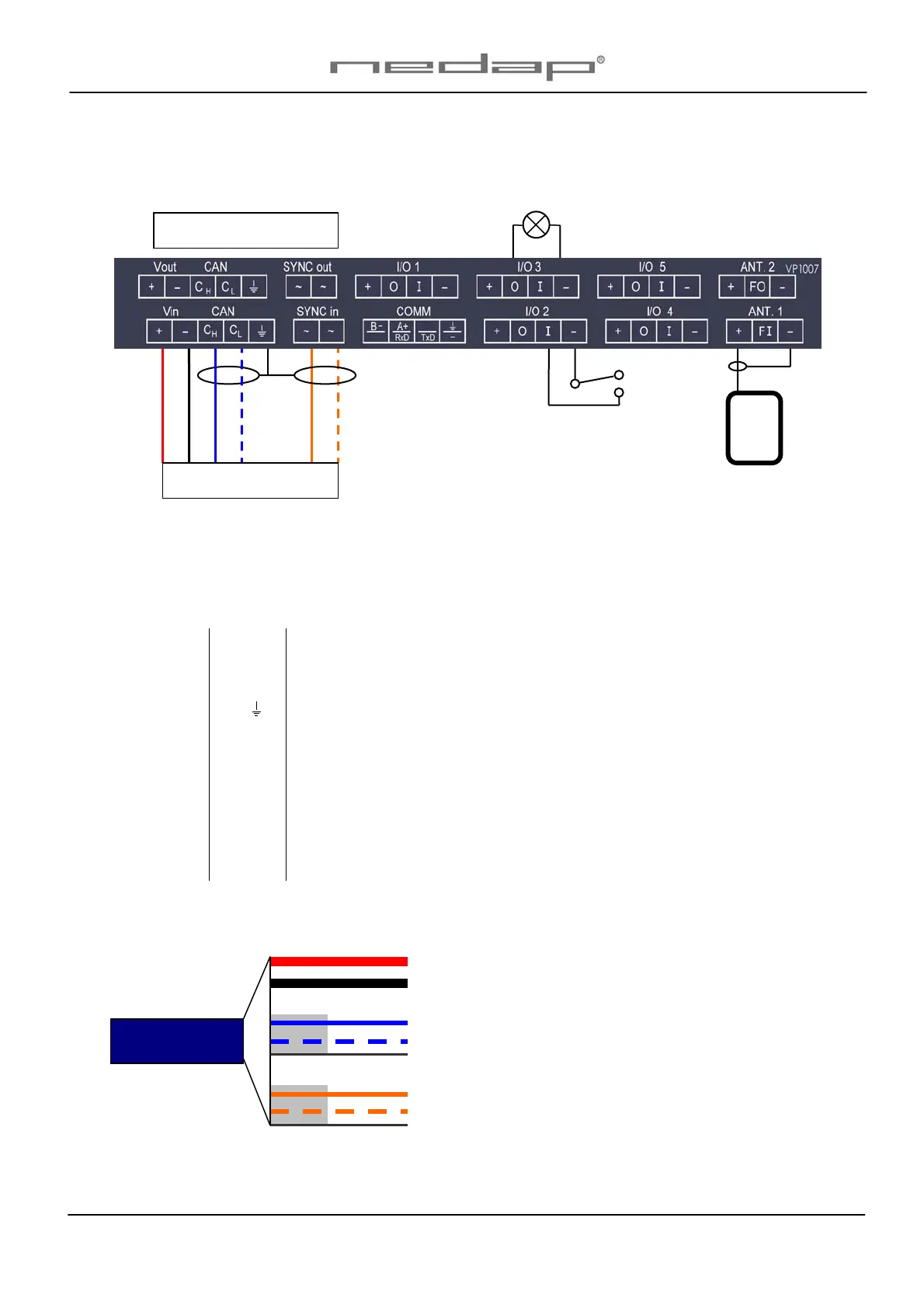

Figure : I/O of the VP1007. The input and output connections are shown above as an example.
Details VP1007 inputs and outputs
Vin
+
Power
-
Minus
RS232 / 485
RxD / B-
Data receive
TxD / A+
Data send
- /
Minus for RS232 / shield for RS485
SYNC
~
Synchronisation for HDX, AC (no plus or minus, cable must be twisted pair)
~
See above
I/O 1 .. 5
+
Output max 400mA
O
Output max 400mA / 1.7A input
-
Minus for output (O) and minus input (I)
I
Input
ANTENNA
+
Antenna
F SYNC
FI/FO
Frequency synchronisation FI=in FO=out
-
Antenna minus (shield of coax cable)
IMPORTANT : Use power supply with a fused output such as Velos VP2001, VP2002.
Details Velos cable
oran
g
e
blue white blue black red orange white
Velos cable
Switch
Light
Velos cable OUT
(
same connection as IN
)
Red (+)
Black (-)
Blue (C
h)
Blue/white (C
l)
Shield
Orange (Sync)
Orange/white (Sync)
Shield
Power
1,5 mm
2
Communication
0,34 mm
2
Twisted pair shielded
HF Synchronisation
0,34 mm
2
Twisted pair shielded
Part No. 7705310
