Installation
Controller Keyboard
<MODE>: To select operating
sequence and to enter
programming.
<SET>: To set program values
and advance to next step.
: Increase program values.
: Decrease program values.

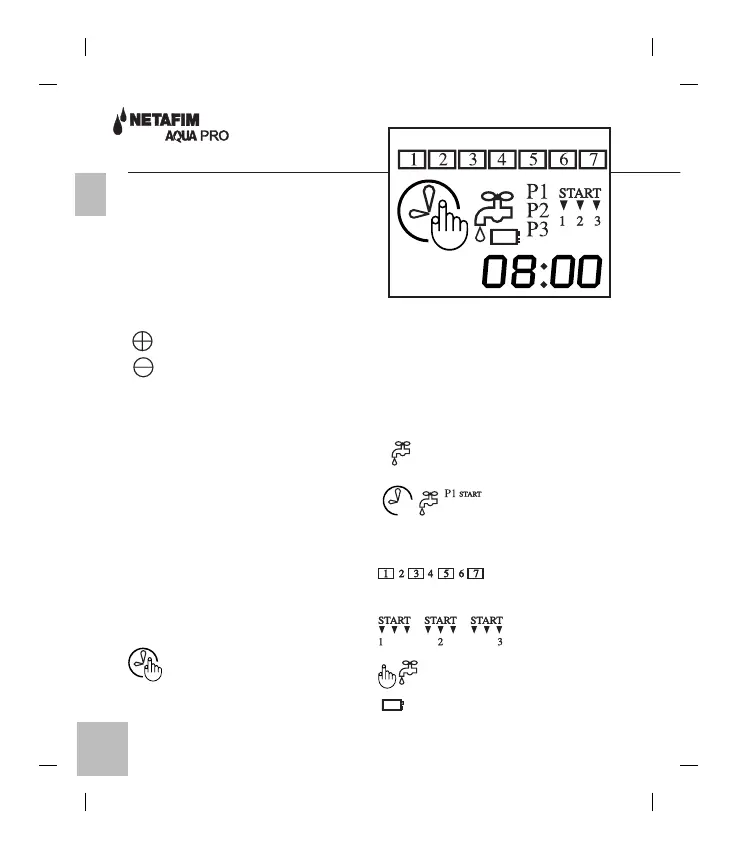

Controller Icons & Display
Days - represented
by the digits 1-7.
Chosen day is framed.
Current day is blinking.
Hours - represented in 24
hours format.
P1, P2 or P3 - operating
modes.
Set current
time and day.
4
Manual irrigation.
Low battery.
Irrigation duration.
start time.
.e.g. 1, 3, 5, 7, Active Days.
P3 -3 start times per day.
E
