Netafim NETAJET 4G Installation Manual

12 NETAJET
™
4G INSTALLATION MANUAL

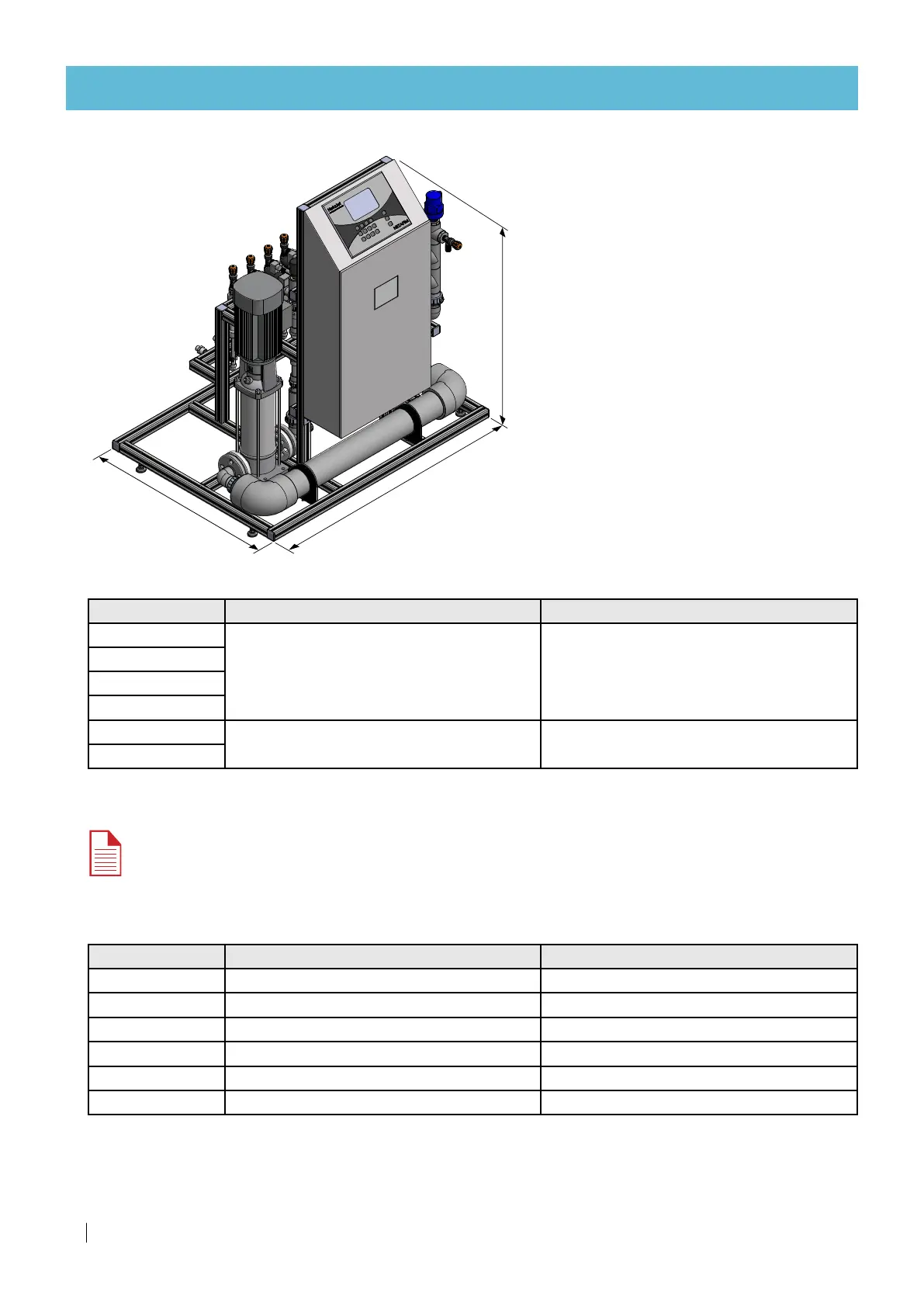

Dimensions
NETAJET 4G BP PL
H
D
W
External dimensions
Mode NetaJet™ 4G external dimensions (W/D/H*) Package dimensions (W/D/H**)
BP PL
123/90/134 cm (48/35.5/53") 131/112/158 cm (52/44/62")
BP ST
High-flow
Octa - 8-channel
IL PL
112/125/134 cm (44/49/53") 142/142/158 cm (56/56/62")
IL ST
*The height varies by ±1 cm (±0.5") according to the adjustment of the legs.
**The package height includes the pallet height of 15 cm (6").
NOTE
Allow 20 cm (8") arround the NetaJet™ 4G for inlet, outlet and fertilizer pipes connections.
Weights
Mode Net weight Packed weight
BP PL 130 -150 kg ( 287-331 lbs) 180-200 kg ( 397- 441 lbs)
BP ST 90-100 kg ( 199-221 lbs) 140 -150 kg ( 309-331 lbs)
High-flow 221-235 kg ( 487-518 lbs) 255-275 kg ( 562-606 lbs)
Octa - 8-channel 200-215 kg ( 441- 474 lbs) 275-295 kg ( 606-650 lbs)
IL PL 130 -150 kg ( 287-331 lbs) 180-200 kg ( 397- 441 lbs)
IL ST 150 -190 kg ( 331-419 lbs) 200-240 kg ( 441-529 lbs)
The weight ranges in the table above are order of magnitude only -
final weights, depending on the selected dosing booster, will be issued with the product order.
