Netafim Orbia GrowSphere MAX User Manual

Rev 01
|
GrowSphere
™
MAX User Manual
46
|
Installation
GrowSphere
Operating System
4.4 Connecting Digital Inputs
The DI562 module contains 16 digital inputs (dry/active contact).
Perform the following steps to connect digital inputs:

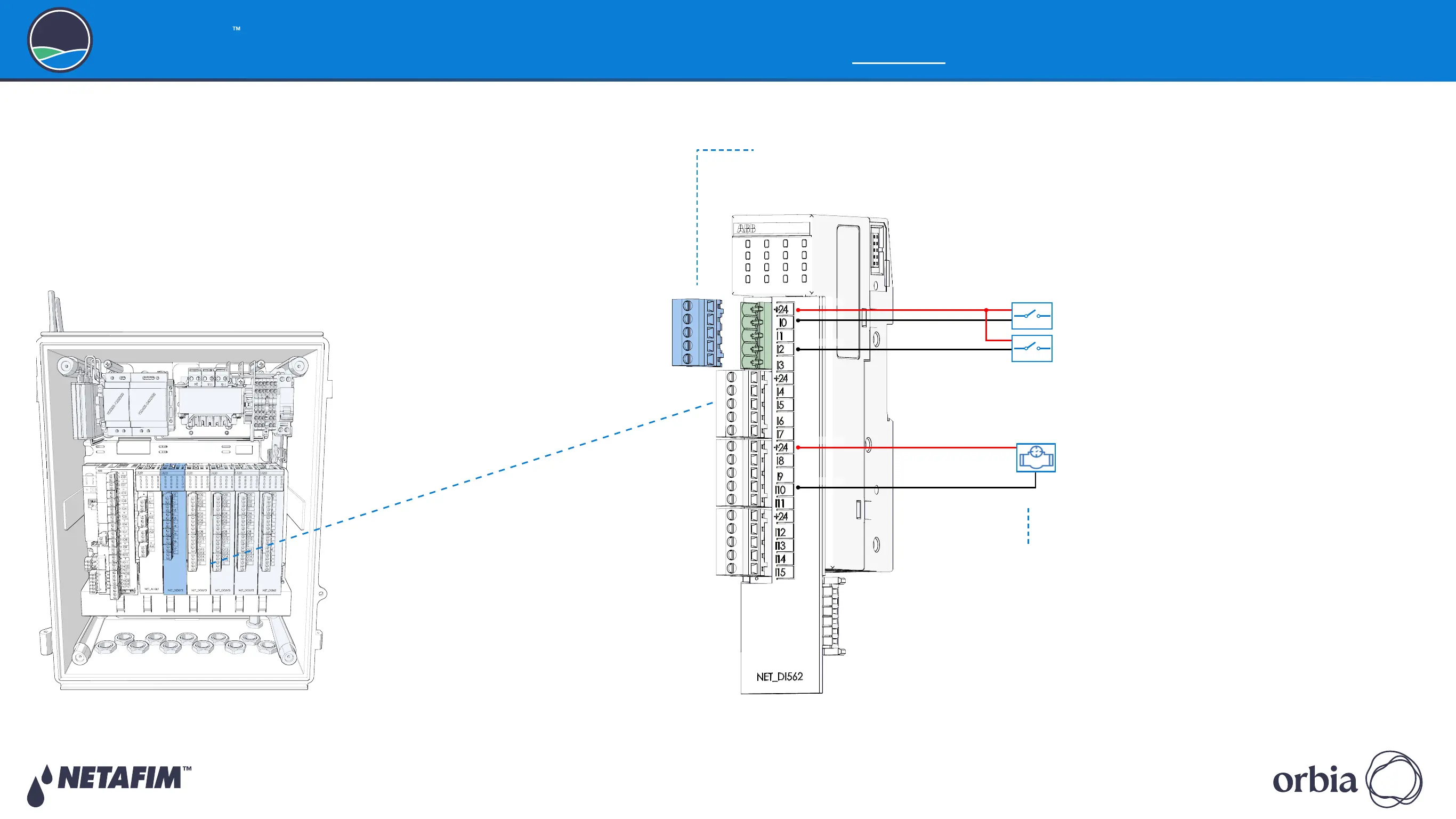

2. Connect digital inputs
Connect up to 16 digital inputs. Each input
is connected to the (+24VDC, common)
terminal, and the relevant input number.
1. Pull the connector
Terminal connectors can be
disconnected from the module
to ease the wiring connection.
I10
+24
I0
I2
+24
SAFETY
QUICK START
INTRODUCTION
INSTALL ATION
CONTROLLER
OPERATION
CONTROLLER
CONFIGURATION
