Netafim Orbia GrowSphere MAX User Manual

Rev 01
|
GrowSphere
™
MAX User Manual
48
|
Installation
GrowSphere
Operating System

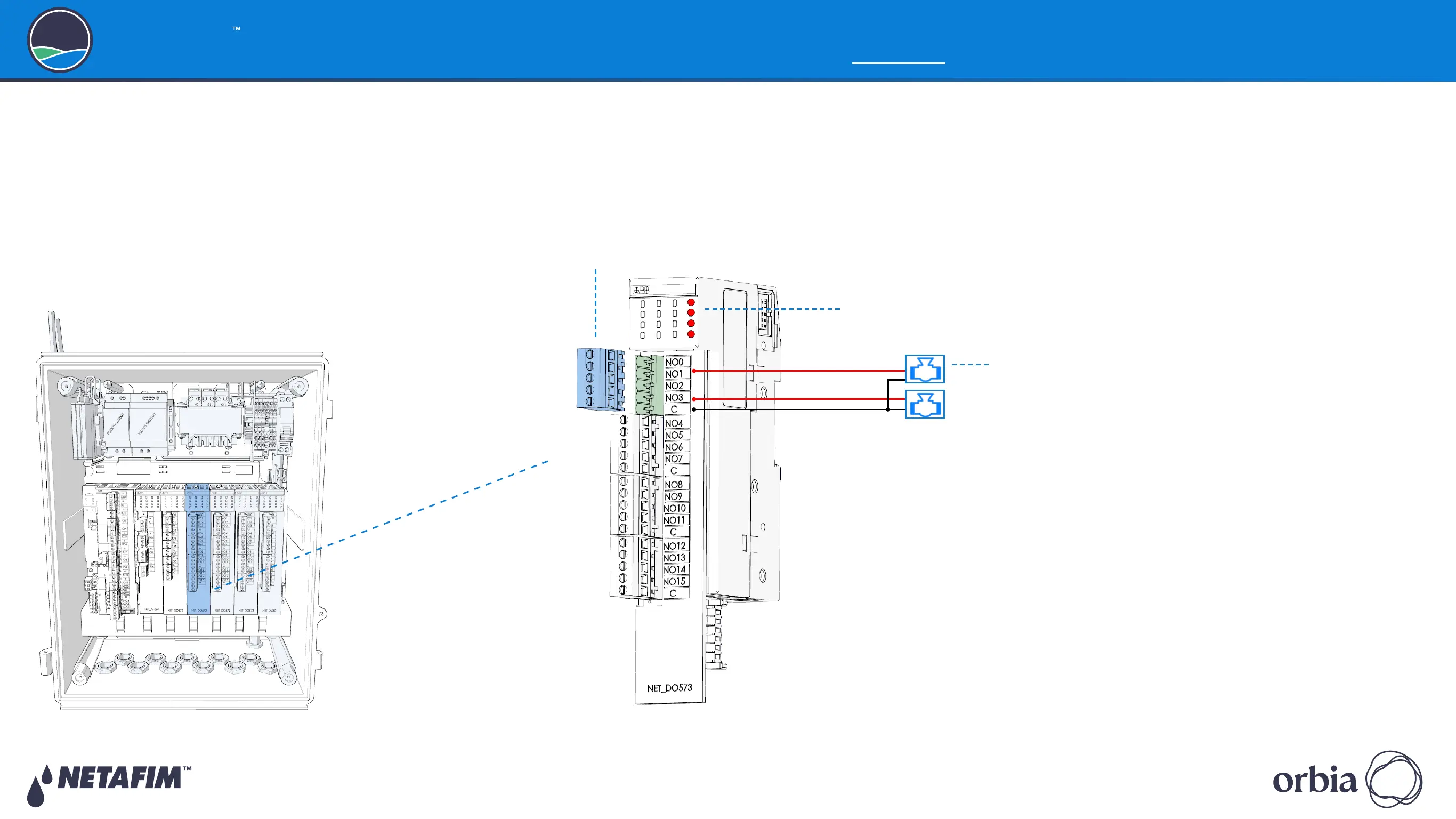

4.6 Connecting Digital Outputs
The DO573 module contains 16 digital relay outputs, 24 VAC @ 80 VA, with a seperate
common for each four outputs.
Perform the following steps to connect digital outputs:
2. Connect digital outputs
Connect up to 16 outputs. Each output is connected to
the following terminals:
z
C - Use the relevant common for each dosing
channel
z
The relevant output number (e.g. NO0, NO1..)
3. Attach the connector
Reconnect the terminals connector to
the module.
Visual LED indication
Use 24 VAC
solenoid valves only
1. Pull the connector
Terminal connectors can be
disconnected from the module to ease
the wiring connection.
NO1
NO3
C
SAFETY
QUICK START
INTRODUCTION
INSTALL ATION
CONTROLLER
OPERATION
CONTROLLER
CONFIGURATION
