Netafim Orbia GrowSphere MAX User Manual

Rev 01
|
GrowSphere
™
MAX User Manual
47
|
Installation
GrowSphere
Operating System

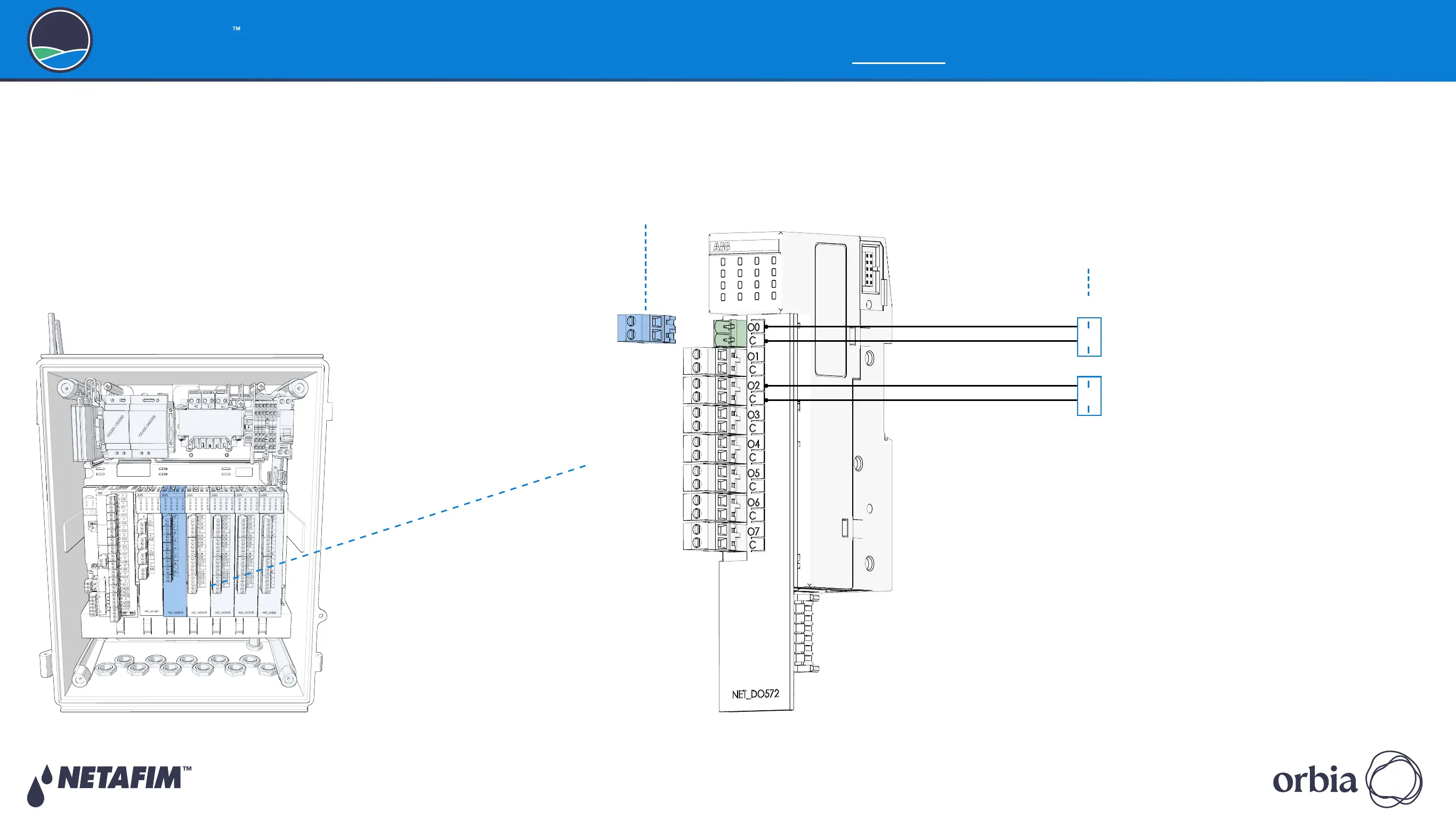

4.5 Connecting Dosing Outputs
The DO572 module contains 8 TRIAC outputs 24VAC @ 80VA.
This module is dedicated to activate venturi dosing pumps at a high speed.
Perform the following steps to connect dosing outputs:
2. Connect dosing outputs
Connect up to 8 dosing outputs. Each output is
connected to the following terminals:
z
C - Use the relevant common for each dosing
channel (not a shared common)
z
The relevant output number (e.g. O0, O1, O2...)
1. Pull the connector
Terminal connectors can be
disconnected from the module to ease
the wiring connection.
3. Attach the connector
Reconnect the terminals connector to
the module.
O0
O2
C
C




SAFETY
QUICK START
INTRODUCTION
INSTALL ATION
CONTROLLER
OPERATION
CONTROLLER
CONFIGURATION
