Switch Test
The Switch test tab displays the information from
the nearest switch by locating the port advert-
isement (xDP) on the first few packets seen by
LinkRunner G2.

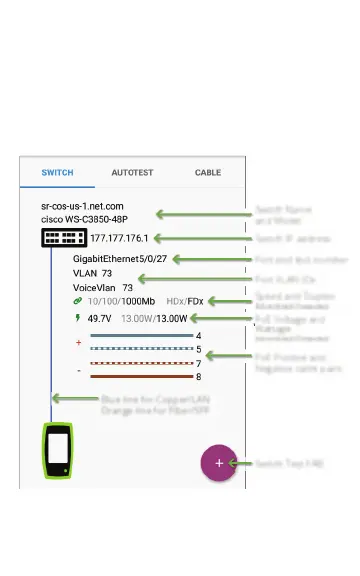

Switch Name
and Model
Switch IP address
Port and slot number
Port VLAN IDs
Switch Test FAB
Sw
Speed and Duplex:
Advertised/Detected
Sp
Ad
Ad
PoE Voltage and
Wattage:
Advertised/Detected
Wa
PoE Positive and
Negative cable pairs
Blue line for Copper/LAN
Orange line for Fiber/SFP
