6. Remove the System Management module:
a. Depress the system management cam button. The cam lever moves away from the chassis.
b. Rotate the cam lever all the way down.
c. Loop your finger into the cam lever and pull the module straight out of the system.
d. Place the System Management module on an anti-static mat, so that the boot media is accessible.
7. Move the boot media to the replacement System Management module:

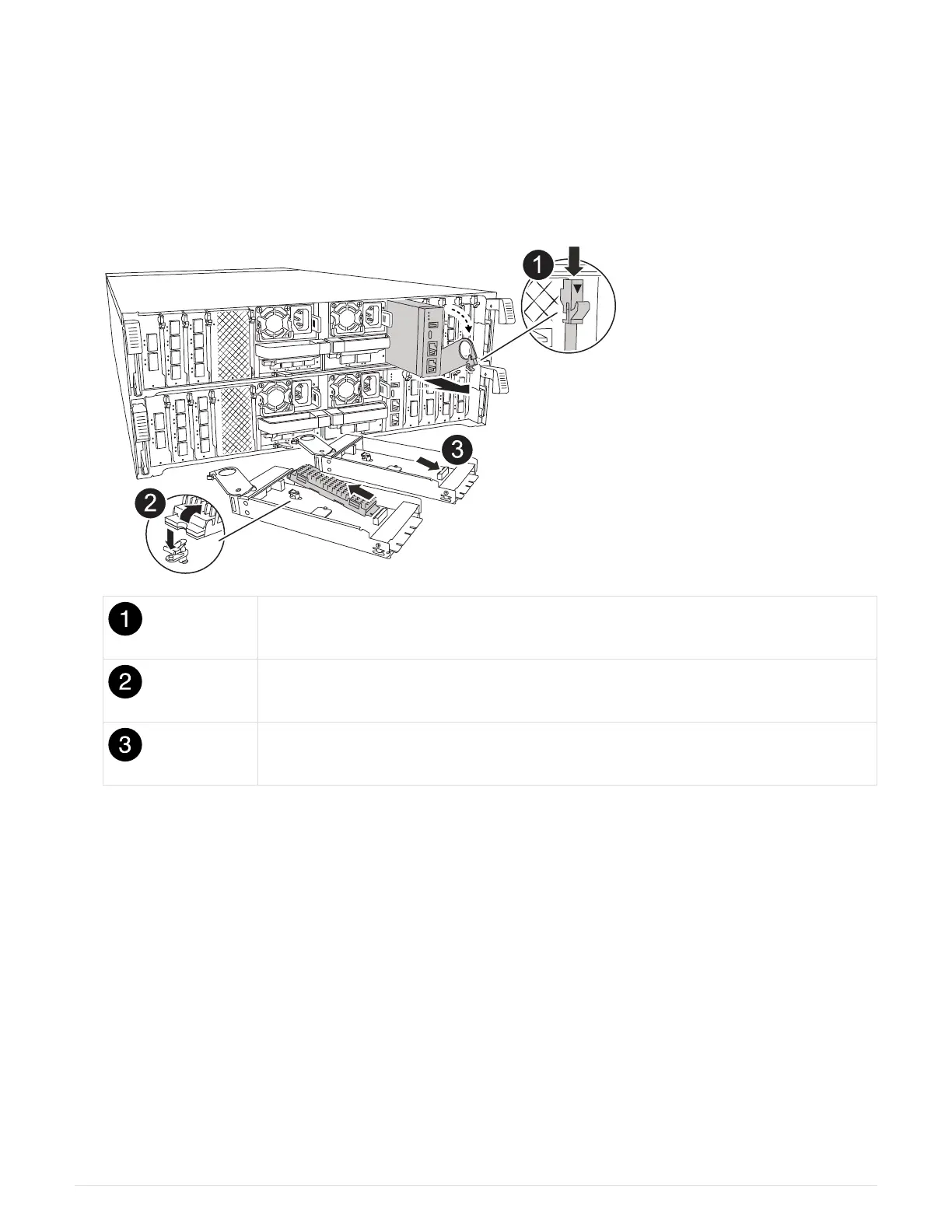

System Management module cam latch
Boot media locking button
Boot media
a. Press the blue locking button. The boot media rotates slightly upward.
b. Rotate the boot media up, slide it out of the socket.
c. Install the boot media in the replacement System Management module:
i. Align the edges of the boot media with the socket housing, and then gently push it squarely into the
socket.
ii. Rotate the boot media down toward until it engages the locking button. Depress the blue locking if
necessary.
8. Install the system management module:
a. Align the edges of the replacement System Management module with the system opening and gently
push it into the controller module.
b. Gently slide the module into the slot until the cam latch begins to engage with the I/O cam pin, and then
rotate the cam latch all the way up to lock the module in place.
9. Recable the System Management module.
