Connection for the
CE7922 Controller
Tray or the CE7900
Controller Tray and
Five to Eight FC4600
Drive Trays
The figures and tables in this section show representative configurations for
redundant cabling. Use the information in the previous topic to connect the first four
drive trays, and then continue with this topic to connect up to eight additional drive
trays.

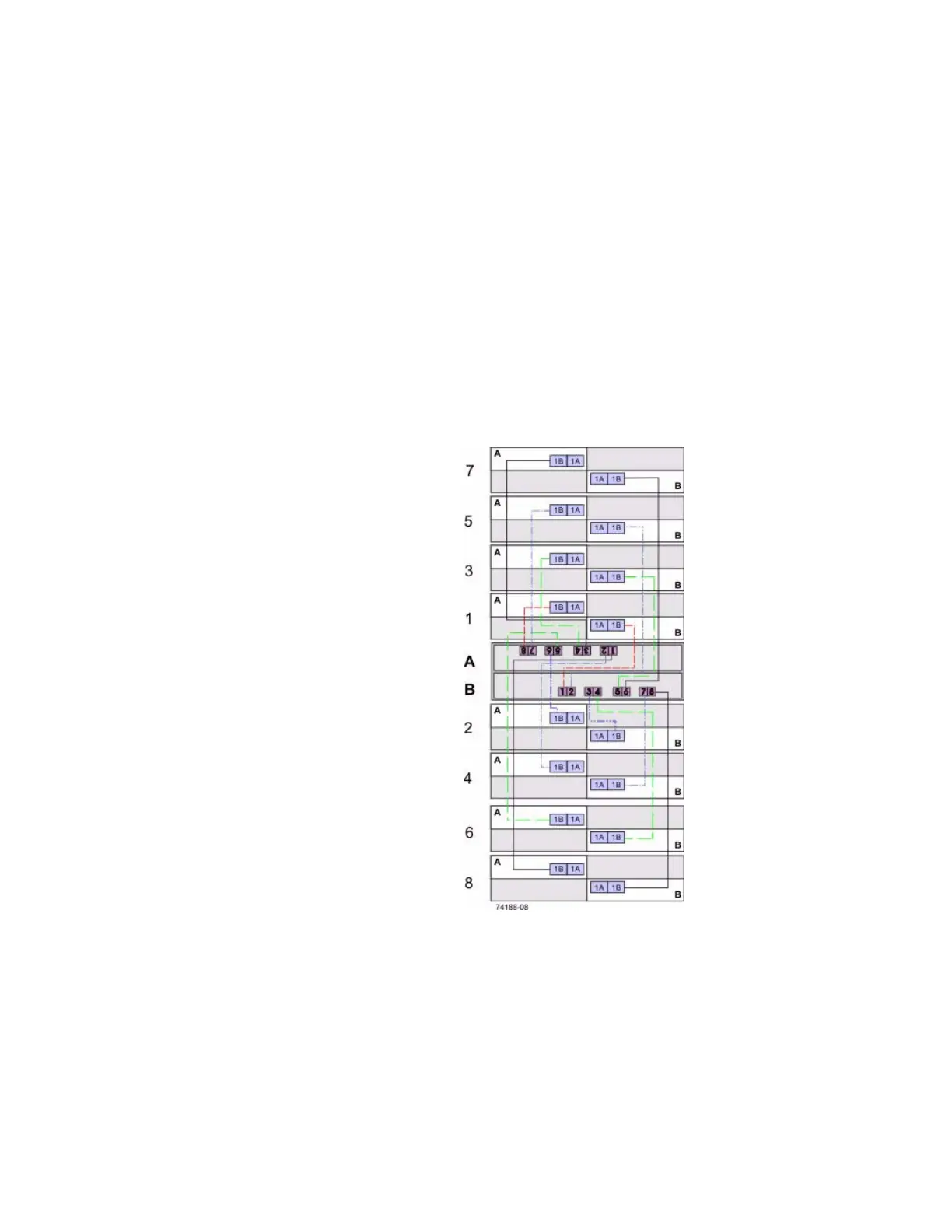

Figure 15 One CE7922 Controller Tray or CE7900 Controller Tray and Eight
Drive T
ra
ys
