Telco tray
3.
Repeat Step 2 for the right half of the telco tray.
4.
If you are installing your storage system in a mid-mount position, go to Step 5; otherwise, slide the storage system onto the
telco tray, and secure it to the two-post rack using the screws that came with your kit.
Note: If applicable, you might need to remove the bezel to secure the storage system to the rack post; if so, you need to
replace the bezel when you are done.
5.

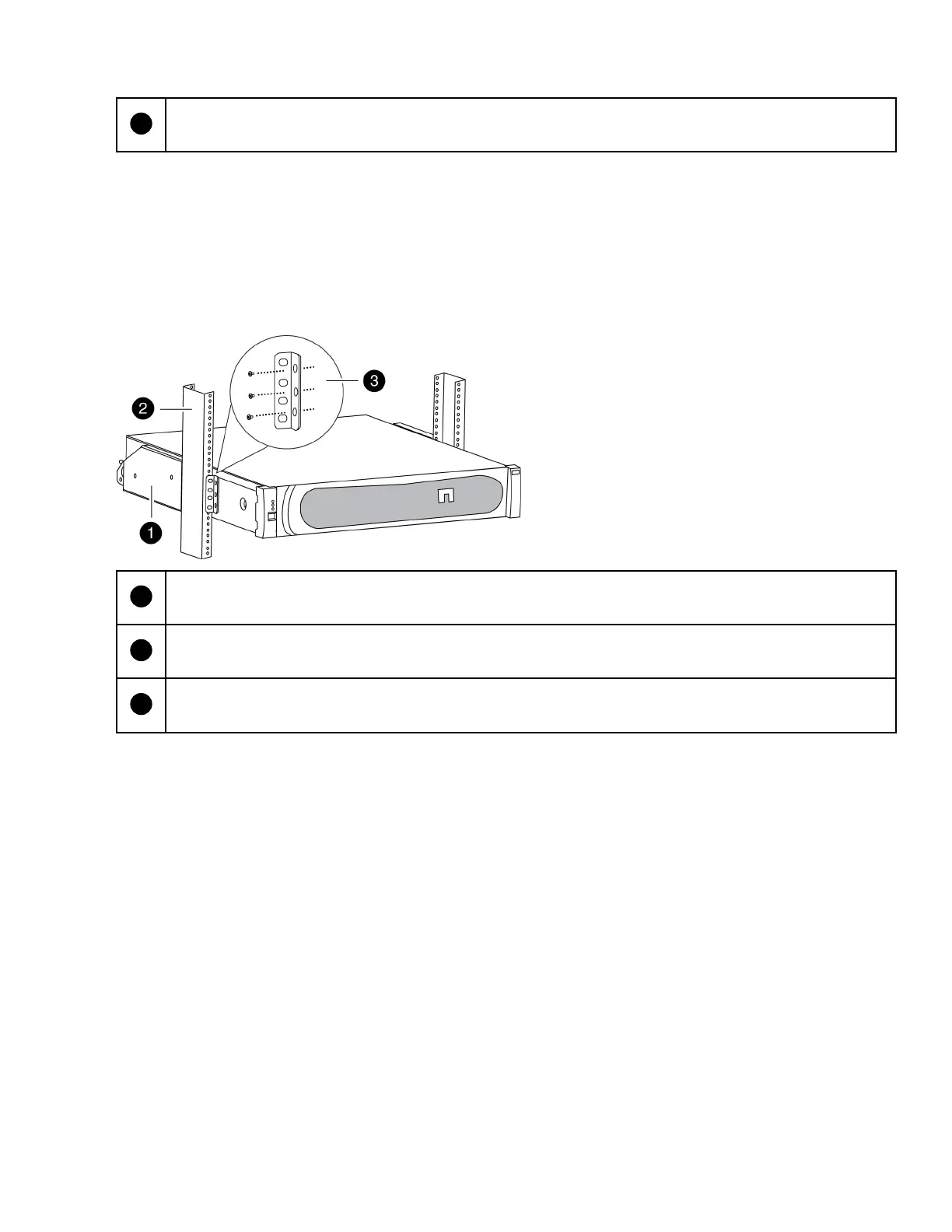

For mid-mount installations, align the screw holes on the storage system chassis with the screw holes on the mounting
bracket, and then secure the bracket to the chassis with three of the six M5 screws and star washers.
Telco tray
Rack post
Mid-mount bracket
6.
Repeat Step 5 for the other mid-mount bracket.
7.
Slide the storage system onto the telco tray until the brackets on the chassis meet the rack posts, and then secure the brackets
to the rack posts with six of the appropriate size and type mounting screws matching the threading of your equipment rack.
2
Installing a 2240-2 into a two-post rack
