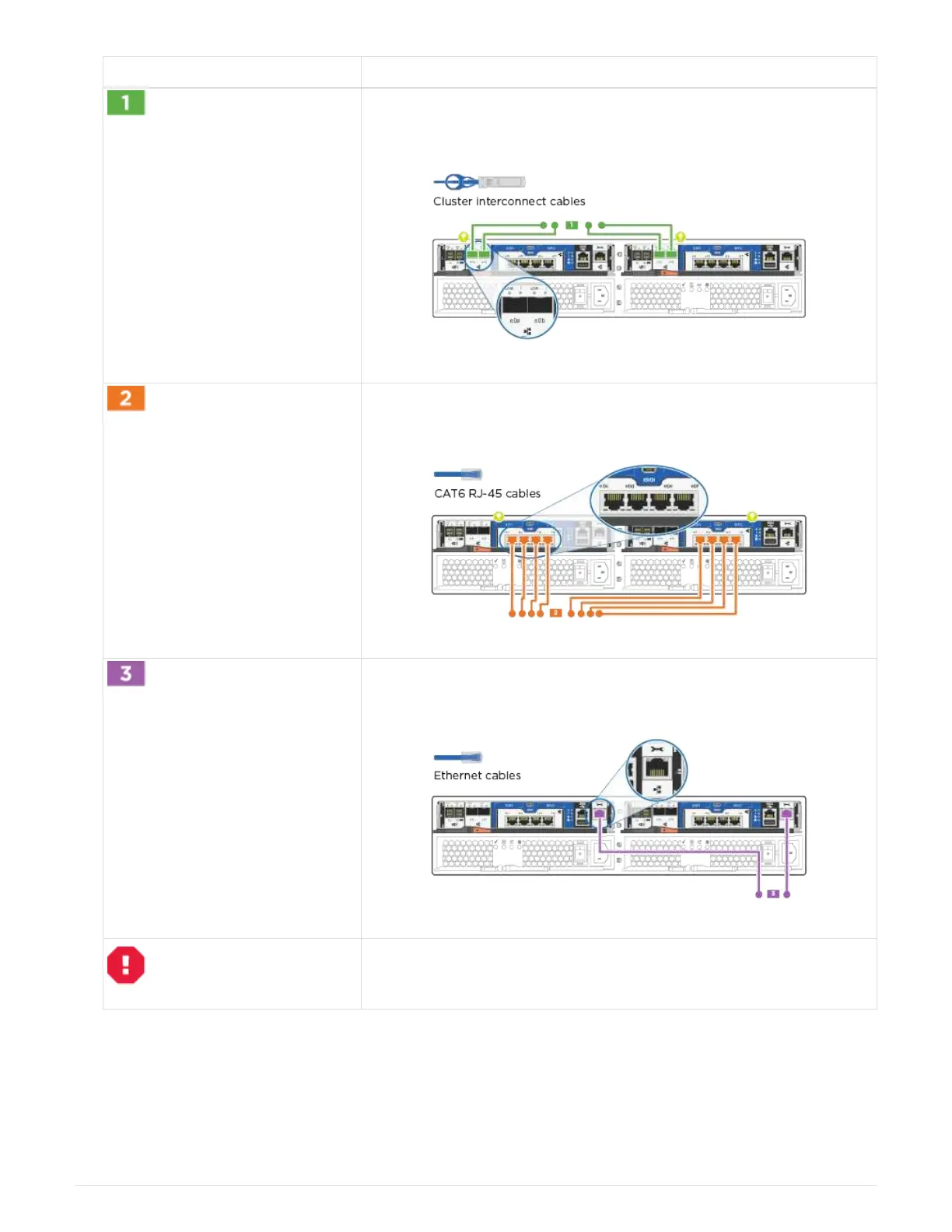

Step Perform on each controller module
Cable e0a and e0b to the cluster interconnect switches with the
cluster interconnect cable:
Use the Cat 6 RJ45 cable to cable the e0c through e0f ports to your
host network:
Cable the e0M ports to the management network switches with the
RJ45 cables:
DO NOT plug in the power cords at this point.
2. To cable your storage, see
Cabling controllers to drive shelves
Step 4: Cable controllers to drive shelves
You must cable the controllers to your shelves using the onboard storage ports. NetApp
recommends MP-HA cabling for systems with external storage. If you have a SAS tape
