Step 2: Replace the boot media
You must locate the boot media in the controller and follow the directions to replace it.
Steps

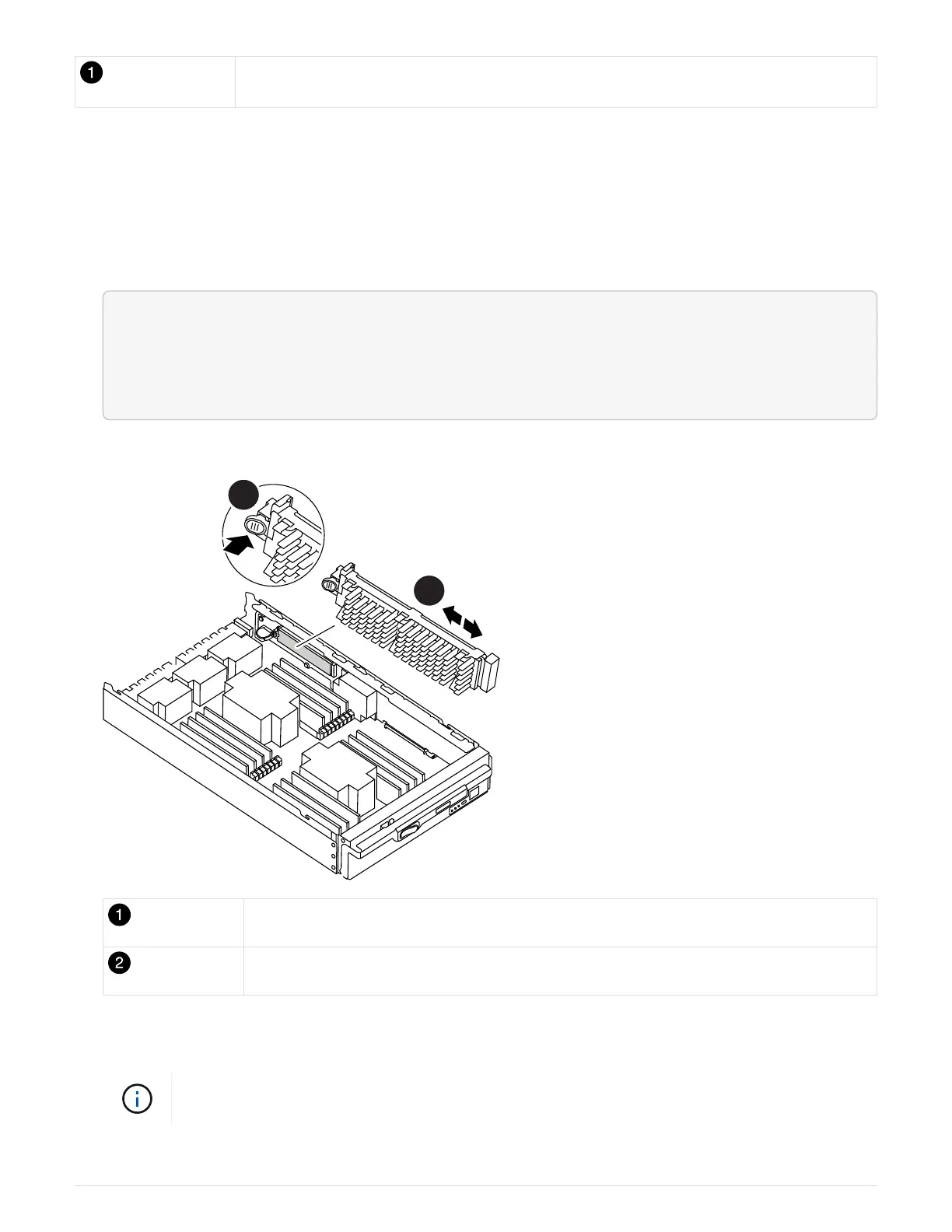

1. Lift the black air duct at the back of the controller module and then locate the boot media using the
following illustration or the FRU map on the controller module:
<div class="aspect-ratio"><iframe frameborder="1" height="400"
scrolling="auto"
src="https://netapp.hosted.panopto.com/Panopto/Pages/embed.aspx?id=16df4
90c-f94f-498d-bb04-ae78004b3781" width="711"> </iframe></div>
Animation - Replace boot media
1
2
Press release tab
Boot media
2. Press the blue button on the boot media housing to release the boot media from its housing, and then
gently pull it straight out of the boot media socket.
Do not twist or pull the boot media straight up, because this could damage the socket or the
boot media.
