Option 1: Replace a mezzanine card:
1. Locate and replace the impaired mezzanine card on your controller module.

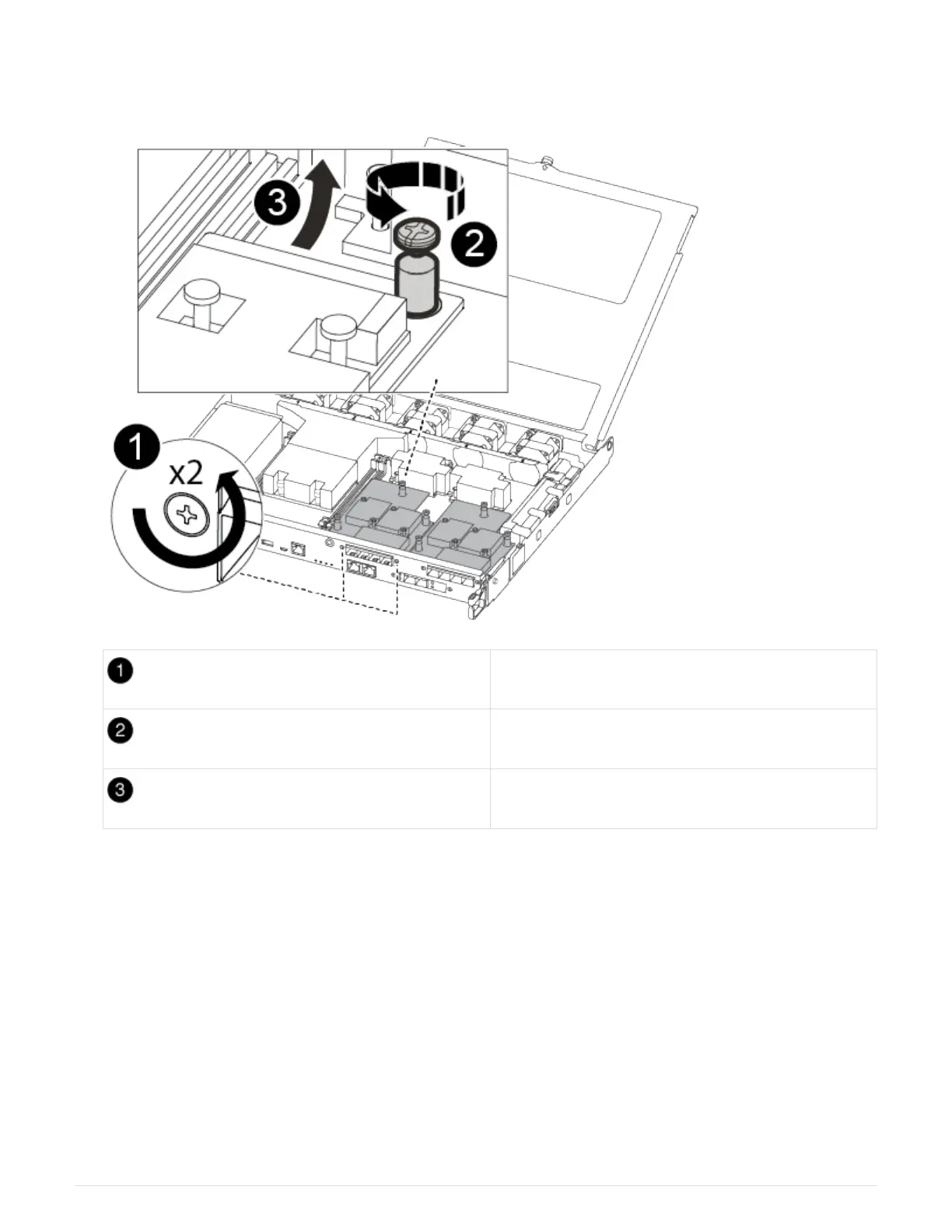

Remove screws on the face of the controller
module.
Loosen the screw in the controller module.
Remove the mezzanine card.
2. Unplug any cabling associated with the impaired mezzanine card.
Make sure that you label the cables so that you know where they came from.
3. Remove any SFP or QSFP modules that might be in the impaired mezzanine card and set it aside.
4. Using the #1 magnetic screwdriver, remove the screws from the face of the controller module and set them
aside safely on the magnet.
5. Using the #1 magnetic screwdriver, loosen the screw on the impaired mezzanine card.
6. Using the #1 magnetic screwdriver, gently lift the impaired mezzanine card directly out of the socket and
set it aside.
7. Remove the replacement mezzanine card from the antistatic shipping bag and align it to the inside face of
the controller module.
8. Gently align the replacement mezzanine card into place.
73
