8. On the replacement controller module, open the air duct and remove the empty risers from the controller
module using the animation, illustration, or the written steps:

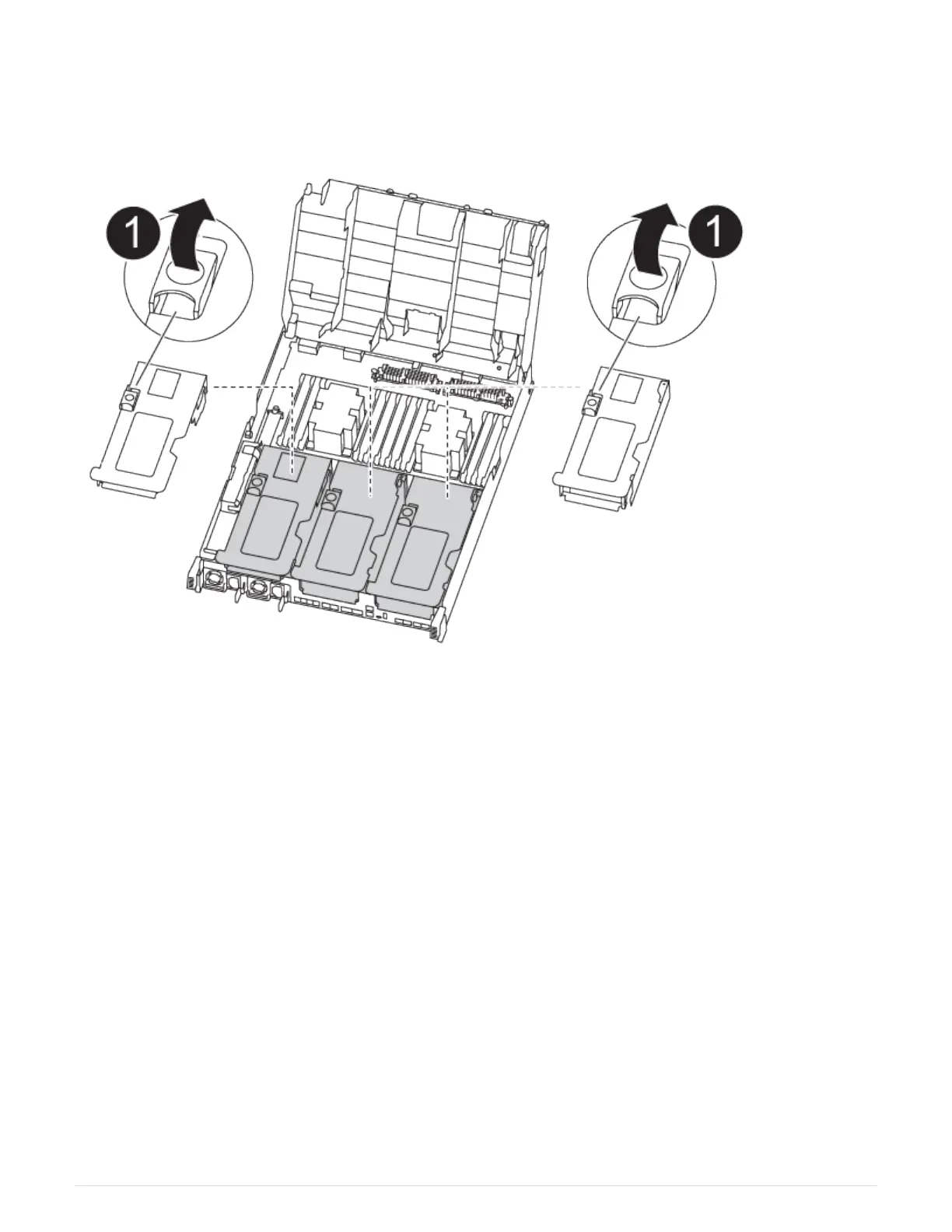

Removing the empty risers from the replacement controller module
a. Press the locking tabs on the sides of the air duct in toward the middle of the controller module.
b. Slide the air duct toward the back of the controller module, and then rotate it upward to its completely open
position.
c. Rotate the riser locking latch on the left side of riser 1 up and toward air duct, lift the riser up, and then set it
aside.
d. Repeat the previous step for the remaining risers.
Step 2: Move the power supplies
You must move the power supply from the impaired controller module to the replacement
controller module when you replace a controller module.
You can use the following animation, illustration, or the written steps to move the power supplies to the
replacement controller module.
Moving the power supplies
56

NetApp FAS8300 Specifications

General

Controller	Dual
Maximum Drives	1440
Form Factor	4U
NVMe Flash Cache	Supported
Operating System	ONTAP
High Availability	Yes
Drive Types	SSD, HDD, NVMe
Connectivity	10GbE, 25GbE, 40GbE, 100GbE, FC
Protocols	NFS, CIFS, iSCSI, FC, FCoE
Processor	Intel Xeon
Data Reduction	Yes (compression, deduplication, compaction)
Flash Cache	Supported
