mezzanine card from the impaired controller module to the replacement controller
module.

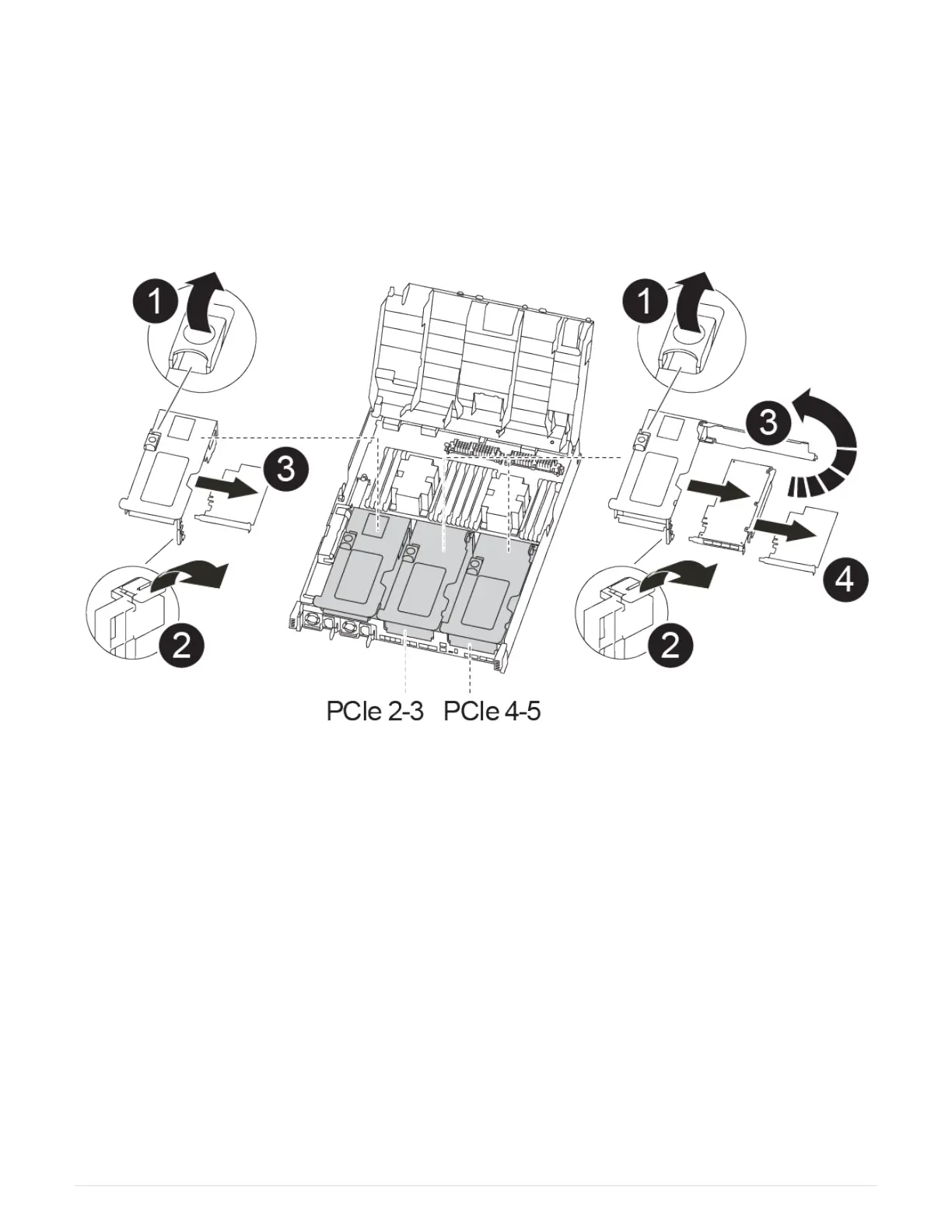

You can use the following animations, illustrations. or the written steps to move the PCIe risers and mezzanine
card from the impaired controller module to the replacement controller module.
Moving PCIe riser 1 and 2 (left and middle risers):
Moving PCI risers 1 and 2
Moving the mezzanine card and riser 3 (right riser):
Moving the mezzanine card and riser 3
