NetApp FAS9000 User Manual

Install hardware | 2
• Unpack all boxes and inventory contents.
• Install rail kits, as needed, using the rail kit
installation instructions.
• Install the empty chassis into the system cabinet or rack.
• Reinstall the system components into the chassis,
matching the chassis slot ID with the slot ID
sticker on the component.
• Attach cable management device.
• Place the bezel on the front of the system.

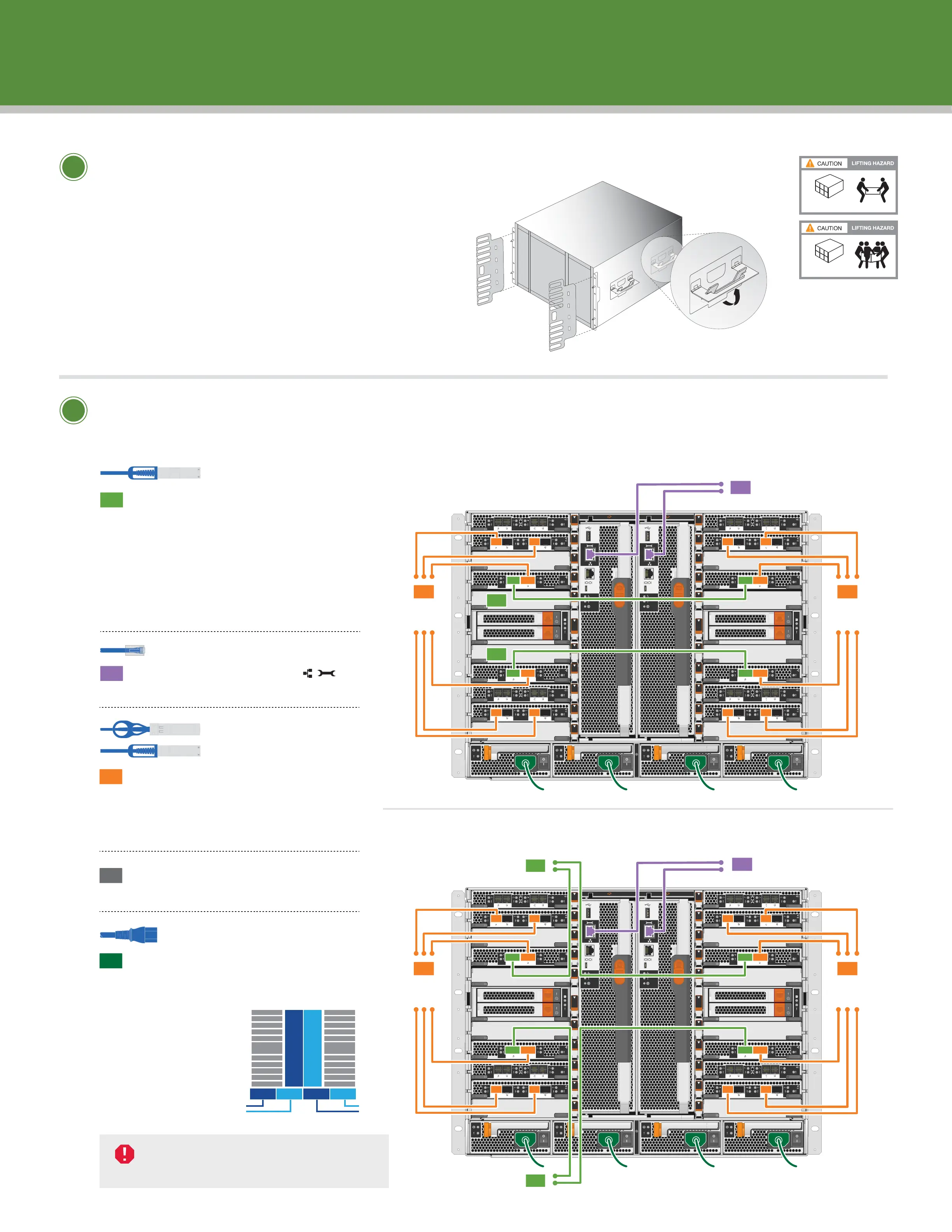

Unpack and install the system.
Cable controller to switches
(choose option A or B below)
See your network administrator for help connecting to your switch.
DO NOT power on controllers
at this point.
Handles and cable
management device
240 lbs. (109 kg)
Fully-populated chassis
A5
A6
A4
A3
A2
A1
A10
A9
A8
A7
A11
B5
B6
B4
B3
B2
B1
B10
B9
B8
B7
B11
6-2
6-1
6-2
6-1
1
1
2
To management
network switches
3
To data
network
switches
3
To data
network
switches
90 lbs. (41 kg)
Empty chassis
2
1
A5
A6
A4
A3
A2
A1
A10
A9
A8
A7
A11
B5
B6
B4
B3
B2
B1
B10
B9
B8
B7
B11
6-2
6-1
6-2
6-1
2
To management
network switches
3
To data
network
switches
3
To data
network
switches
1
To cluster switches
1
To cluster switches
Switchless cluster: Cable cluster
interconnect ports A together in slot
A4 and B4 (e4a) and again in slot
A8 and B8 (e8a).
Switched cluster: Connect ports a
in slot A4, B4, A8 and B8 (e4a, e8a)
to the cluster switch. Use the cables
supported by your switch.
Connect the wrench ports
to the management switches.
Connect the e4b and e8b ports
to the data switches.
Connect the e2a, e2c, e10a and
e10c ports to the data switches.
Strap the cables to the cable
management arms (not shown).
Connect the power cables to the
PSUs and connect them to dierent
power sources.
4
5
1
2
3
Cluster interconnect cable
10 GbE network cable
Ethernet cable
Power cable
Switchless cluster
Switched cluster
Controller A
PSU 1
Controller B
PSU 2 PSU 3 PSU 4
Controller A
PSU 1
Controller B
PSU 2 PSU 3 PSU 4
PSU 1 and PSU 3
provide power to
all side A FRUs,
PSU 2 and PSU 4
provide power to
all side B FRUs.
A
PSU 1 PSU 2 PSU 3 PSU 4
B
2nd
power
source
1st
power
source
40 GbE network cable
