NetComm NF18ACV Setup Guide

NF18ACV NC2 FAQs – Parental Control Setup Guide
9 of 10
FQ01103 v. 1.1 March 2019
© NetComm Wireless 2019

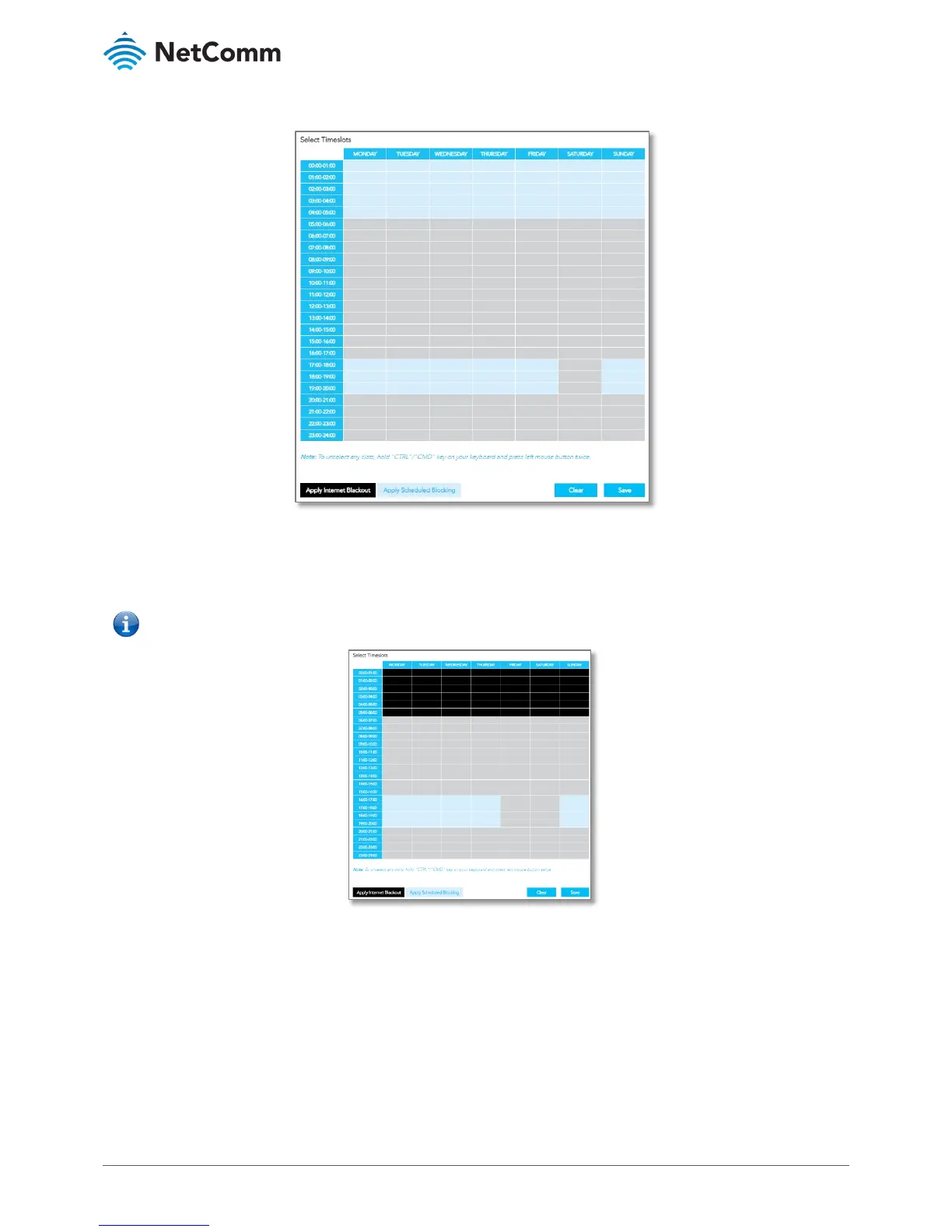

6 These Timeslots will now appear shaded light blue on the Select Timeslots able.
7 Click
Save to apply this Scheduled Blocking schedule to all devices assigned to this profile.
8 Alternatively, click
Clear to clear all Scheduled Blocking timeslots and select new times, etc.
Note
– You can mix
Internet Blackout
periods and
Scheduled Blocking
to the same profile. The timeslot schedule page will look
similar to this:

NetComm NF18ACV Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1600 Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB port	-
RJ-11 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Tabletop router
Product color	White
Output current	2 A
Output voltage	12 V
Power source type	AC
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	28 mm
Width	216 mm
Height	174 mm
Weight	558 g
