NetComm Wireless 4G M2M Router
RIP
RIP (Routing Information Protocol) is used for advertising routes to other routers. Thus all the routes in the router’s routing table will
be advertised to other nearby routers. For example, the route for the router’s Ethernet subnet could be advertised to a router on the
PPP interface side so that a router on this network will know how to route to a device on the router’s Ethernet subnet. Static routes
must be added manually according to your requirements. See Adding Static Routes.
To access the RIP configuration page, click on the Networking menu at the top of the screen, click on the Routing failover menu on
the left, then click on the RIP menu item.
Note: Some routers will ignore RIP.

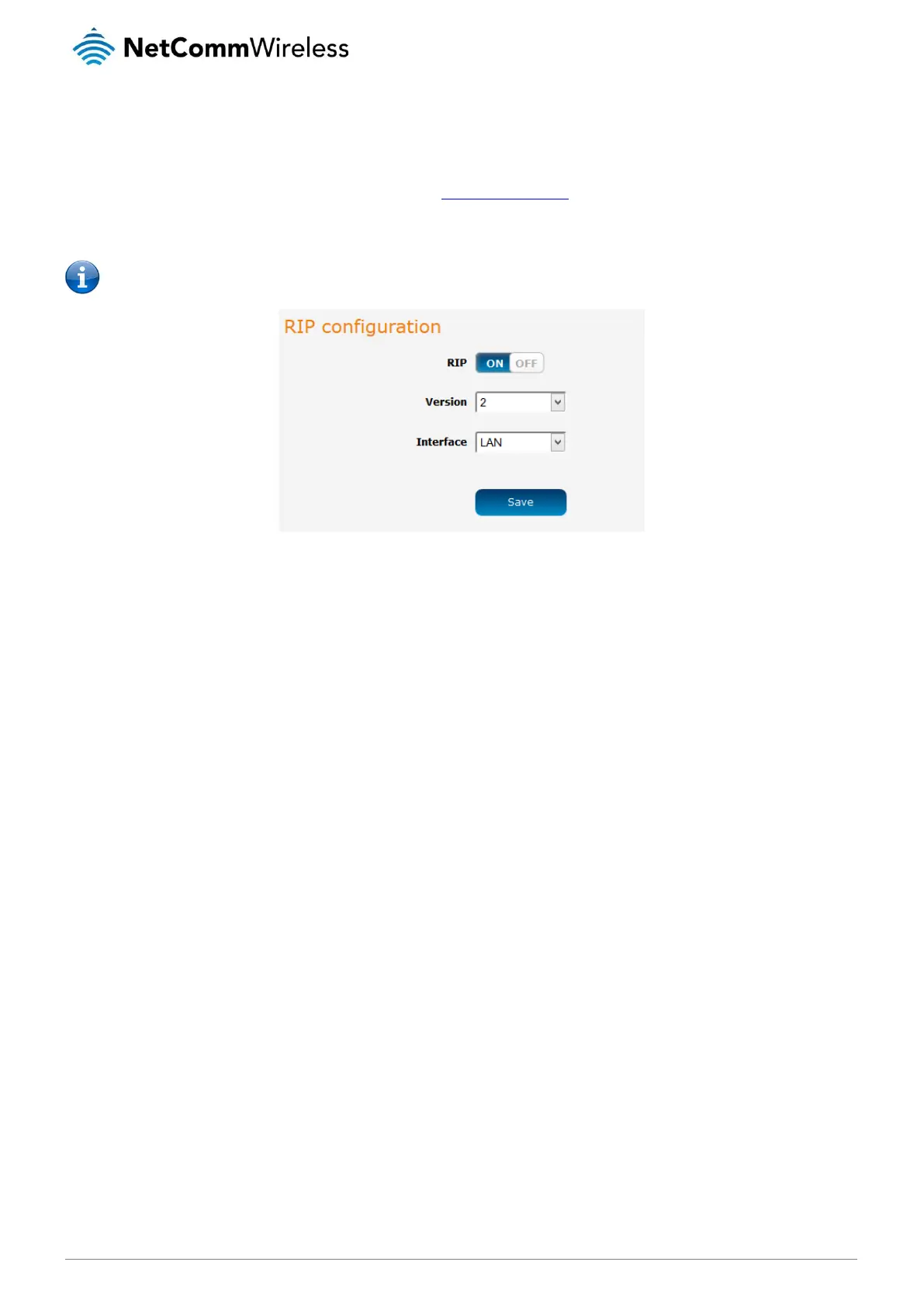

Figure 52 - RIP configuration
To enable Routing Information Protocol (RIP)
1.
Click the RIP toggle key to switch it to the ON position.
2.
Using the Version drop down list, select the version of RIP that you would like to use.
3.
Select the interface for which you want RIP to apply. You can choose the LAN interface, the WWAN interface or BOTH.
4.
Click the Save button to confirm your settings.
