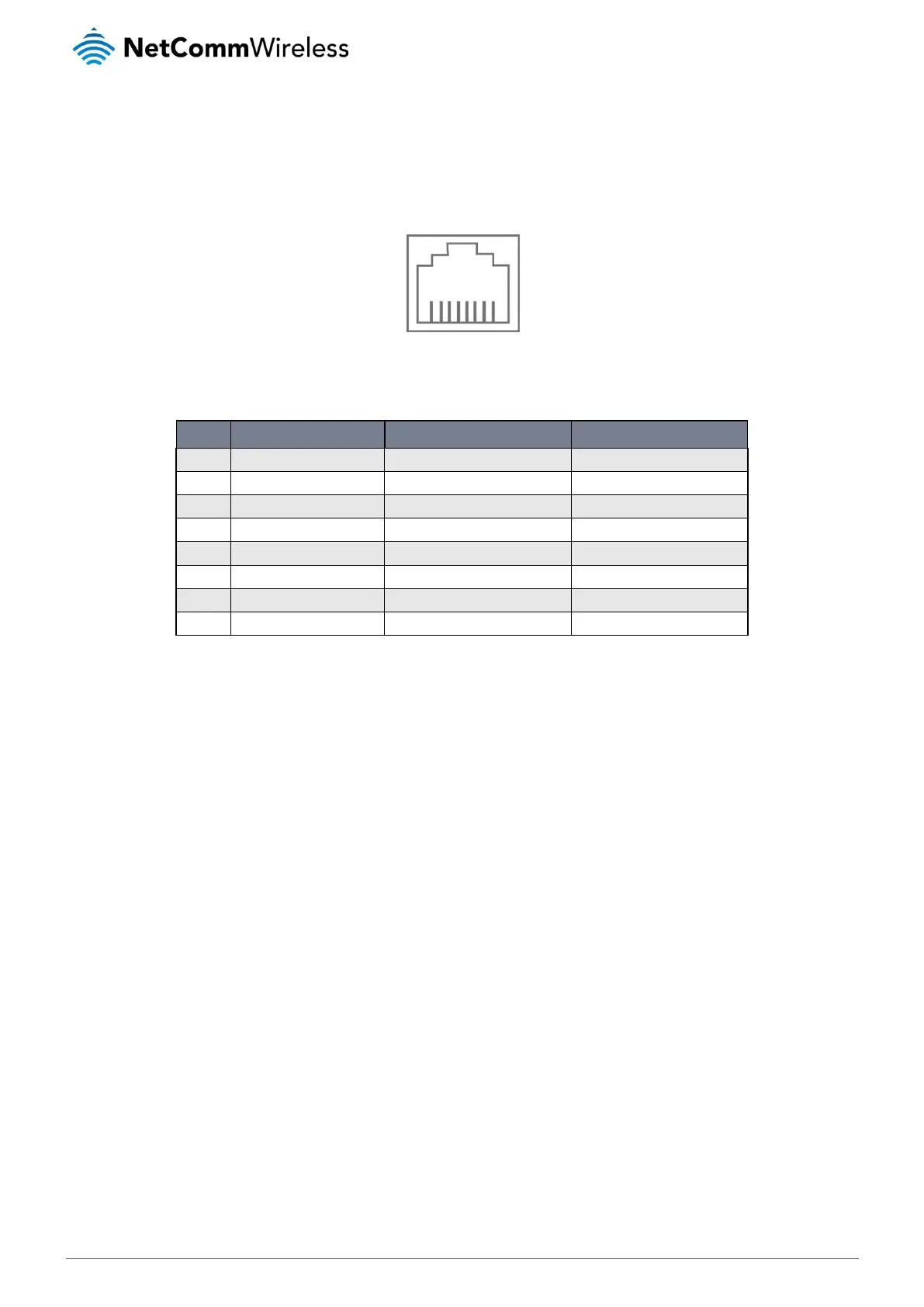

Appendix E: RJ-45 connectors
The RJ-45 connectors provide an interface for a data connection and for device input power using the pin layout shown below.
Pin: 8 1
Figure 149 -The RJ-45 connector
PIN
COLOUR
SIGNAL (10/100)
SIGNAL (1000)
1
White/Orange stripe
Rx + DC +
+BI_DA
2
Orange Solid
Rx - DC +
-BI_DA
3
White/Green stripe
Tx + DC -
+BI_DB
4
Blue solid
unused
+BI_DC
5
White/Blue stripe
unused
-BI_DC
6
Green solid
Tx - DC -
-BI_DB
7
White/Brown stripe
unused
+BI_DD
8
Brown solid
unused
-BI_DD
Table 45 - RJ-45 connector pin outs
